HP PLUS+ Inverter Hybrid On Grid and Off Grid Solar Inverter 5KW
Input Voltage: 48VDC | Output Voltage: 208/220/230/240VAC±2% | Solar Charging: MPPT | PV Input Voltage: 120-500VDC
1 : A solar inverter can realize on grid and off grid, hybrid operation.
2 : Excess power can be stored in batteries or fed into the grid.
3 : Pure sine wave output, quality is as good as the power grid, adaptable to any types of loads.
4 : Lithium battery BMS communication function, RS485 and WIFI / GPRS communication.
5 : 60-80A solar or AC charging current adjustable.
6 : With cutting-edge MPPT technology, the HP PLUS+ optimizes your solar power generation, ensuring every ray of sunshine is converted into electricity efficiently.
About HP PLUS+ Hybrid Inverter On Off Grid
1. The HP PLUS+ hybrid inverter is your versatile energy companion, capable of both on grid and off grid operation. It intelligently switches between modes to maximize energy usage and minimize reliance on the grid, ensuring uninterrupted power during grid outages. When electricity is expensive, you can use grid power to charge the battery through solar hybrid inverter. When electricity is cheap, you can use solar hybrid inverter to convert the DC power in the battery into AC and send it to the national grid power. With battery energy storage, uninterrupted backup power supply can be ensured no matter day or night.

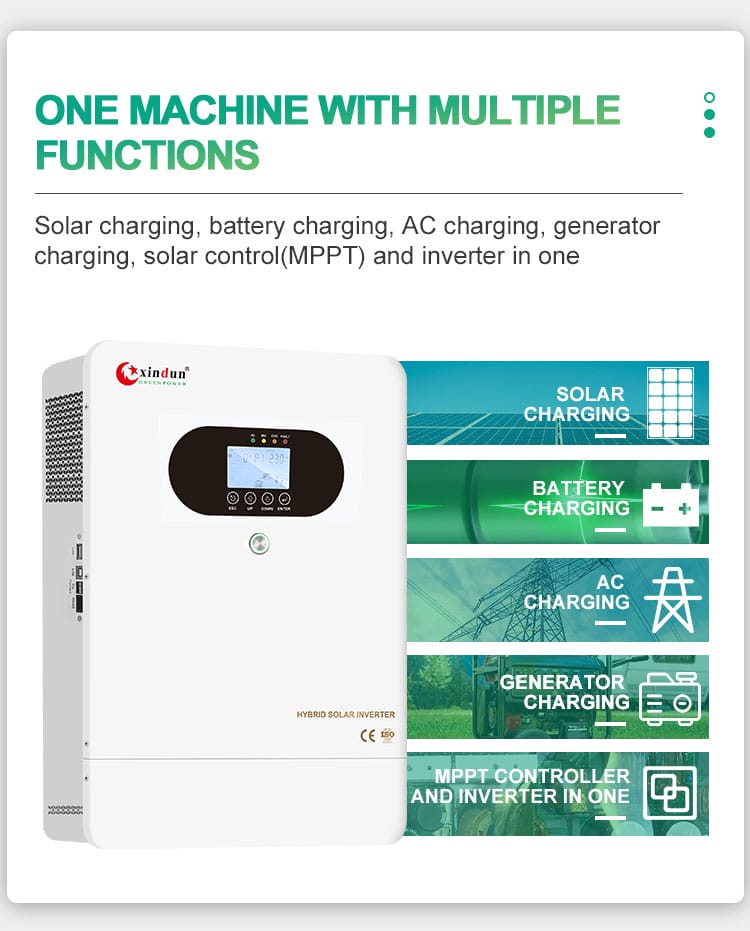

2. Whether you prefer grid charging, solar charging, or generator charging, our hybrid inverter seamlessly adapts to your chosen power source. This flexibility ensures efficient energy utilization and keeps your critical solar systems running smoothly, even in challenging conditions. With multiple charging modes, you're in control of your power supply like never before.
3. Stay connected and informed about your solar energy system's performance with our cutting-edge inverter featuring lithium battery communication. This technology enables real-time communication between the hybrid inverter and your lithium battery storage, providing valuable insights into your energy usage and storage capacity.
4. Stay in control of your solar energy system with our intuitive monitoring platform. Track your energy production, consumption, and inverter system performance in real-time, all from the convenience of your smartphone or computer.
HP PLUS+ Hybrid Inverter On Off Grid 5KW
Model: HP-PLUS+ | 50248 | |||||
Power | ||||||
Rated Power | 5KW | |||||
Battery | ||||||
Standard Battery Voltage | 48VDC | |||||
Battery Type | Lead-acid battery / Lithium battery / Custom battery | |||||
Maximum Charging Current (PV+AC) | 80A | |||||
Maximum PV Charging Current | 80A | |||||
Maximum AC Charging Current | 60A | |||||
MPPT Solar Charge Controller | ||||||
Max PV Input Voltage(Voc) (At The Lowest Temperature) |
500VDC | |||||
Maximum PV Input Power/Tracking Channels | 5500W/1 route | |||||
MPPT Tracking Voltage Range | 120V~450VDC | |||||
AC Input | ||||||
Rated Input Voltage | 208VAC/220VAC /230VAC/ 240VAC | |||||
AC Input Voltage Range | 170VAC~280VAC (UPS mode)/ 90VAC~280VAC(Appliance mode) | |||||
AC Input Frequency | 45Hz~55Hz(50Hz),55Hz~65Hz(60Hz) | |||||
AC Output | ||||||
Output Wave | Pure sine wave | |||||
Conversion Efficiency(INV model) | 94%( peak value) | |||||
Output Voltage/Frequency | 208VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2%,50Hz±1% or 60Hz±1%(INV mode); follow input (mains mode) | |||||
Other | ||||||
Protection | Battery undervoltage protection/Battery overvoltage protection/Overload power protection/Inverter output short circuit protection/Temperature protection | |||||
Protection Degree | IP20 | |||||
Display | LCD+LED | |||||
Cooling Method | Cooling fan in intelligent control | |||||
Communication | USB/RS232 communication , mobile APP (WIFI monitoring or GPRS monitoring) Optional | |||||
Working Mode (can be set) | Mains priority/Battery priority/PV priority | |||||
Charging Method (can be set) | AC + PV together (intelligent distribution) / Only PV / PV priority / Mains priority | |||||
Operating Temperature | -15℃~40℃ | |||||
Relative Humidity | 0%~95% (No condensation) | |||||
Dimensions and Weight | ||||||
Product Size (L*W*Hmm) | 460x320x110 | |||||
PackageSize(L*W*Hmm) | 520x385x215 | |||||
N.W.(kg) | 9.75 | |||||
G.W.(kg) | 10.75 |
Your Trusted Solar Hybrid Inverter On Off Grid Manufacturer
At Xindun Power, we take immense pride in being a leading manufacturer of on grid and off grid hybrid solar inverters. With a commitment to innovation, quality, and sustainability, we have solidified our position as a reliable partner in the solar energy industry.
Xindun Company:
Established with a vision to revolutionize the way we harness solar energy, Xindun has been at the forefront of hybrid solar inverter technology for 17 years. Our journey began with a simple goal: to provide efficient and sustainable energy solutions to meet the ever-growing global energy demand.
Driven by a team of dedicated engineers and experts, we have consistently pushed the boundaries of inverter technology. Our product portfolio encompasses a wide range of on grid, off grid, and hybrid solar inverters designed to cater to residential, commercial, and industrial energy needs.
Xindun Factory:
Located in Foshan, Guangdong, China, our state-of-the-art manufacturing facility is a testament to our commitment to quality and innovation. Spread across 10,000 square meters, our factory is equipped with cutting-edge machinery and production lines. Every aspect of our inverter manufacturing process adheres to stringent quality control standards and environmental sustainability practices.
We take pride in our skilled workforce, who work tirelessly to ensure that each inverter that leaves our factory is of the highest quality. Our dedication to precision engineering and product excellence has earned us several industry certifications, including ISO, CE, TUV and ROHS.
Why Choose Xindun:
Innovation: We constantly invest in research and development to bring you the latest advancements in hybrid solar inverter technology.
Quality Assurance: Our inverters undergo rigorous testing to guarantee reliability and performance, ensuring they withstand the test of time.
Sustainability: We are committed to reducing our carbon footprint, and our inverters are designed with energy efficiency and sustainability in mind.
Global Reach: With a distribution network spanning 100 countries, we serve customers worldwide, offering prompt support and service.
Xindun Power is not just an inverter manufacturer; we are your partner in powering a sustainable future. Join us in the transition to cleaner, more efficient energy solutions. Together, we can make a difference.
