WD Solar Hybrid UPS Inverter System For Home Price 350W-40KW

Input Voltage: 12-384VDC | Output Voltage: 110/120/220/230/240VAC±2% | Solar Charging: MPPT/PWM | Max PV Open Circuit Voltage: 50-800VDC

1 : Low frequency pure sine wave with AVR (automatic voltage regulator) output

2 : Solar/Power Grid/Battery Energy complement each other and working modes selectable

3 : Inverter + solar controller + UPS, 3 in 1 design

4 : Support diesel or gasoline generator input

5 : RS485/WIFI/GPRS communication port optional

solar hybrid ups inverter - solar ups system for home price

get solar ups for home price

WD Hybrid Solar UPS Inverter

Xindun WD series ups solar inverter power range from 300W to 50KW, a machine can meet the power supply of most home appliances. Single phase low frequency pure sine wave output, with automatic voltage stabilizer function, solar hybrid ups inverter integrates the functions of inverter+solar controller+battery charging+UPS power supply. The bad voltage environment should start with a WD series solar hybrid ups inverter. The inverter can also be connected to diesel and gasoline generators, and complement each other with solar energy, power grid and batteries. If the user wants to remotely monitor the data of the inverter through the upper computer or mobile phone, RS485, WIFI or GPRS can also be optional. Solar ups price is affordable. Welcome to inquire.

wd series inverter ups for home xindun inverter ups for home

what is solar ups price

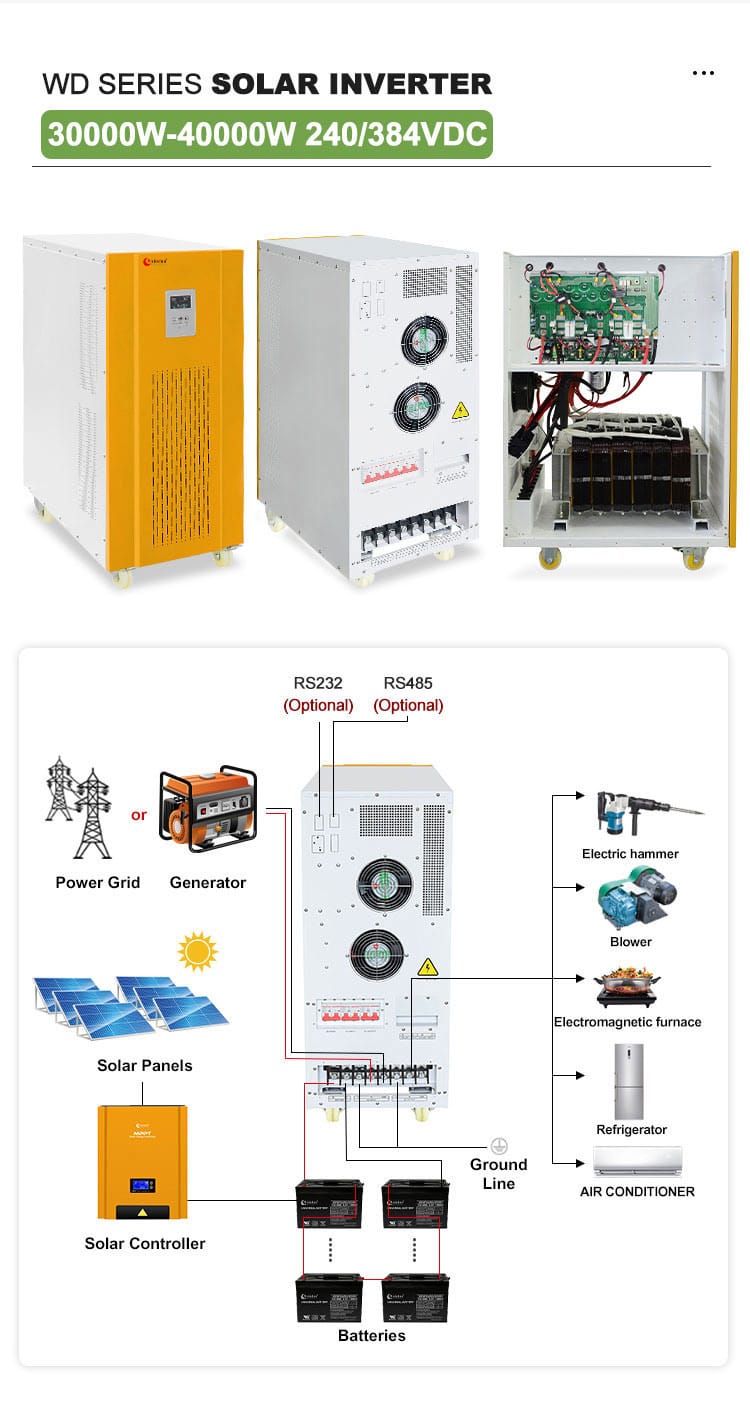

Hybrid Solar UPS Inverter Wiring

With different power, the appearance and internal structure of hybrid ups inverters will be different. The following figure clearly describes inverters with different power and wiring methods. Different power, same good quality.

ups solar inverter 700w 1000w 1500w ups solar inverter 2000w 3000w 3500w ups solar inverter 4000w 5000w 6000w 7000w solar ups system for home 8kw 10kw 12kw solar ups system for home 15kw 20kw 25kw solar ups system for home 30kw 40kw

what is solar ups price

Hybrid Solar UPS Inverter Parameter

Hybrid Solar UPS Inverter Specification
Model WD		70112/24 (701)	10212/24 (102)	15224/48 (152)	20224/48 (202)	30224/48 (302)	35248/96 (352)	40248/96 (402)	50248/96 (502)	60248/96 (602)	70248/96/192 (702)
Rated Power		700W	1000W	1500W	2000W	3000W	3500W	4000W	5000W	6000W	7000W
Peak Power（20ms)		2100VA	3000VA	4500VA	6000VA	9000VA	10500VA	12000VA	15000VA	18000VA	21000VA
Start Motor		0.5HP	1HP	1.5HP	2HP	3HP	3HP	3HP	4HP	4HP	5HP
Battery Voltage		12/24VDC	12/24VDC	24/48VDC	24/48VDC	24/48VDC	48/96VDC	48/96VDC	48/96VDC	48/96VDC	48/96/192VDC
Max AC charging current		0A~20A（Depending on the model，The maximum charging power is 1/4 of the rated power）
Built-in solar controller charging current (optional)		10A~60A(PWM or MPPT)			24/48V(PWM:10A~60A/MPPT:10A~100A)			48V(PWM:10A~120A/MPPT:10A~100A) / 96V(50A/100A(PWM or MPPT))
Size(LWHmm)		340x165x283			410x200x350			491x260x490
Packing Size(LWHmm)		405x230x340(1pc) / 475x415x350(2pc)			475x265x410			545x315x550
N.W.(kg)		9.5(1pc)	10.5(1pc)	11.5(1pc)	17	20.5	21.5	29	30	31.5	36
G.W.(kg)		11(1pc)	12(1pc)	13(1pc)	19	22.5	23.5	32	33	34.5	39
Installation Method		Tower
Model WD		80248/96/192 (802)	10348/96/192 (103)	12396/192 (123)	153192 (153)	203192 (203)	253240 (253)	303240 (303)		403384 (403)
Rated Power		8KW	10KW	12KW	15KW	20KW	25KW	30KW		40KW
Peak Power（20ms)		24KVA	30KVA	36KVA	45KVA	60KVA	75KVA	90KVA		120KVA
Start Motor		5HP	7HP	7HP	10HP	12HP	15HP	15HP		20HP
Battery Voltage		48/96/192VDC	48/96V/192VDC	96/192VDC	192VDC	192VDC	240VDC	240VDC		384VDC
Max AC charging current		0A~40A（Depending on the model，The maximum charging power is 1/4 of the rated power）			0A~20A（Depending on the model，The maximum charging power is 1/4 of the rated power）
Built-in solar controller charging current (optional)		PWM:(48V:120A；96V:50A/100A；192V/384V:50A) MPPT:(48V:100A/200A；96V:50A/100A；192V/384V:50A)			50A/100A			50A/100A
Size(LWHmm)		540x350x695			593x370x820			721x400x1002
Packing Size(LWHmm)		600410810			656420937			775x465x1120
N.W.(kg)		66	70	77	110	116	123	167		192
G.W.(kg)		77	81	88	124	130	137	190		215
Installation Method		Tower
Input	DC Input Voltage Range	10.5-15VDC（Single battery voltage）
	AC Input Voltage Range	73VAC~138VAC(110VAC）/ 83VAC~148VAC（120VAC） / 145VAC~275VAC（220VAC） / 155VAC~285VAC（230VAC） / 165VAC~295VAC（ 240VAC）（700W~7000W） 92VAC~128VAC(110VAC） / 102VAC~138VAC（120VAC） / 185VAC~255VAC（220VAC） / 195VAC~265VAC（230VAC） / 205VAC~275VAC（ 240VAC） (8KW~40KW)
	AC Input Frequency Range	45Hz~55Hz（50Hz）/ 55Hz~65Hz（60Hz）
	AC charging method	Three-stage (constant current, constant voltage, floating charge)
Output	Efficiency(Battery Mode)	≥85%
	Output Voltage(Battery Mode)	110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2%
	Output Frequency(Battery Mode)	50Hz±0.5 or 60Hz±0.5
	Output Wave(Battery Mode)	Pure Sine Wave
	Efficiency(AC Mode)	>99%
	Output Voltage(AC Mode)	110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10%（700W~7000W）； Follow input（8KW~40KW）
	Output Frequency(AC Mode)	Follow input
	Output waveform distortion (Battery Mode)	≤3%（Linear load）
	No load loss(Battery Mode)	≤1% rated power
	No load loss(AC Mode)	≤2% rated power（ charger does not work in AC mode）
	No load loss (Energy saving Mode)	≤10W
Battery Type （selectable）	VRLA Battery	Charge Voltage :14.2V; Float Voltage:13.8V(Single battery voltage)
	Customize battery	Charging and discharging parameters of different types of batteries can be customized according to user requirements (charging and discharging parameters of different types of batteries can be set through the operation panel)
Protection	Battery undervoltage alarm	Factory default: 11V（Single battery voltage）
	Battery undervoltage protection	Factory default: 10.5V（Single battery voltage）
	Battery overvoltage alarm	Factory default: 15V（Single battery voltage）
	Battery overvoltage protection	Factory default: 17V（Single battery voltage）
	Battery overvoltage recovery voltage	Factory default: 14.5V（Single battery voltage）
	Overload power protection	Automatic protection (battery mode), circuit breaker or insurance (AC mode)
	Inverter output short circuit protection	Automatic protection (battery mode), circuit breaker or insurance (AC mode)
	Temperature protection	>90°C（Shut down output）
Alarm	A	Normal working condition, buzzer has no alarm sound
	B	Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection
	C	When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal
Inside Solar controller (Optional)	Charging Mode	PWM or MPPT
	PV Input Voltage Range	PWM: 15V-44V(12V system); 30V-44V(24V system); 60V-88V(48V system); 120V-176V(96V system)；240V-352V(192V system) ；300V-400V(240V system)； 480V-704V(384V system) MPPT: 15V-120V(12V system); 30V-120V(24V system); 60V-120V(48V system); 120V-240V(96V system)；240V-360V(192V system)；300V-400V(240V system)；480V-640V(384V system)
	Max PV Input Voltage(Voc) (At the lowest temperature)	PWM: 50V(12V/24V system); 100V(48V system); 200V(96V system)；400V(192V system)；500V(240V system) ;750V(384V system) MPPT: 150V(12V/24V/48V system); 300V(96V system)；450V(192V system)；500V(240V system) ;800V(384V system)
	PV Array Maximum Power	12V system: 140W(10A)/280W(20A)/420W(30A)/560W(40A)/700W(50A)/840W(60A)/1120W(80A)/1400W(100A); 24V system: 280W(10A)/560W(20A)/840W(30A)/1120W(40A)/1400W(50A)/1680W(60A)/2240W(80A)/2800W(100A); 48V system: 560W(10A)/1120W(20A)/1680W(30A)/2240W(40A)/2800W(50A)/3360W(60A)/4480W(80A)/5600W(100A)/6720W(PWM 120A)/5.6KW&11.2KW(MPPT 100A/200A); 96V system: 5.6KW(50A)/11.2KW(100A)；192V system: (PWM:11.2KW(50A)/22.4KW(100A)) / (MPPT:11.2KW(50A)/11.22KW(100A)); 240V system: (PWM:14KW(50A)/28KW(100A)) / (MPPT:14KW(50A)/142KW(100A))；384V system: (PWM:22.4KW(50A)/44.8KW(100A)) / (MPPT:22.4KW(50A)/22.4*2KW(100A))
	Standby loss	≤3W
	Maximum conversion efficiency	>95%
Working Mode		Battery First/AC First/Saving Energy Mode
Transfer Time		≤4ms
Display		LCD
Thermal method		Cooling fan in intelligent control
Communication(Optional)		RS485/APP（WIFI monitoring or GPRS monitoring）
Environment	Operating temperature	-10℃~40℃
	Storage temperature	-15℃~60℃
	Noise	≤55dB
	Elevation	2000m（More than derating）
	Humidity	0%~95% ,No condensation
Note: All specifications are subject to charge without prior notice

Hybrid Solar UPS Inverter Project Case

inverter ups for home, solar ups for home, solar ups for home solar system, hybrid ups inverter for home office truck industry, solar hybrid ups for pump agriculture, etc. Xindun hybrid solar ups system has been exported to the Philippines, Myanmar, Thailand, Egypt, South Africa, Tanzania, Lebanon, Dubai, the United Arab Emirates, Brazil, Mexico, Chile and other countries. You can choose Xindun solar ups system for home at ease.

solar hybrid ups system project case

what is solar ups for home price

Hybrid Solar UPS Inverter Manufacture In China

Guangdong Xindun Power Technology Co., Ltd., founded in 2006, is a leading manufacturer of power and new energy products and service solutions, including uninterruptible power supply (UPS), power inverter, solar inverter, hybrid inverter, solar charge controller, battery, off grid solar system and automatic voltage regulator (AVR).

Xindun has built an enviable reputation in terms of power protection technology, excellent service, complete satisfaction and unparalleled confidence in the industry, which is based on passion, quality, innovation, reliability and integrity.

In the past few years, Xindun has a diversified customer base, including financial services, telecommunications, IT, agency, government, electricity, oil, natural gas, water, education, medical, leisure and manufacturing industries, with a strong R&D team, internal automation equipment design, manufacturing capabilities and continuous quality improvement.

solar ups for home company

china solar ups for home

Why Choose Xindun Power Manufacturer

1. TOP 5 manufacturer in China, 17 years rich experience, 10,000 square meters, 200 employees, 20 Engineers.
2. QC control, 100% inspection before shipment .
3. 13 years experience in international bidding together with dealer.
4. OEM/ODM with LOW MOQ!
5. Provide training on design/installation and maintenance of dealer's office or factory every year
6. Complete set solar system design and installation supporting
7. We constantly improve the design and provide new products. We are the only one who can sign "Quality Warranty" & "On Time Delivery Warranty" With Clients.

solar ups for home manufacturer
