SESS-ESS All In One Home Solar Generator System 300W-7000W

Xindun home solar generator system has undergone hundreds of practical applications, purchasing an all in one solar generator system with solar panels/batteries/inverter, save you purchase time and cost, installation & maintenance all duties to a company.

Type : Off Grid Solar Generator System

Power : 300W-7000W

Input Voltage : DC 12V/24V/48V

Output Voltage : AC 110V/120V/220V/230V/240V, DC 12V, USB 5V

Brand : Xindun Power (Factory)

Original : China

Service : Customized Solutions, Cost Calculation, Installation Guidance, Maintenance, Product Training

Produt Details Download

All In One Home Solar Generator System Design



All in one solar generator system, allowing you to have electricity anytime, anywhere.

The solar generator system sold by Xindun is a large power bank, which is characterized by a combination of dc to ac inverter, solar controller, battery, USB port, DC output port, AC output socket, as well as many functions such as solar charging, AC charging, generator charging and stable voltage all in one. The plug and play solar generator system can not only supply home AC appliances, but also charge DC appliances such as lighting and mobile phones. Home solar energy, high power consumption, and long lifespan.

The solar generator system is simple and easy to use. It only needs to be equipped with an appropriate number of solar panels and connected to the solar input interface of the solar generator. Then remove it to a sunny place to use solar energy for charging and power supply, and this type of solar generator can also store electricity.

In some densely populated or power scarce areas, this type of all in one solar generator system is widely used. Compared to other power generation methods, solar generators are more environmentally friendly, do not produce harmful gases, and do not cause any damage to the environment. Apart from home use, using a solar generator system is the ideal solution for outdoor travel, camping, and other places where you cannot connect to the power grid.



All In One Home Solar Generator System - Xindun China






All In One Solar Generator System Equipment List



300W Solar Generator System Description QTY
PCS
Components Solar panel 1pcs Mono solar panel 160W
Application area :Class A
1
All-in one solar generator built-in 1pcs 300W/12V pure sine wave inverter
Low frequency output ,Transfer time :<4ms
Multiple output: 2*AC output socket, 4*DC 12V, 2*USB.
1
built-in 1pcs 12V/20A PWM solar controller
Max PV input voltage :50V
PV Array Max Power :280W
built-in 1pcs 12V 50AH GEL battery
Size :229*138*208mm,15KG
Solar cable 40M PV cable 2.5mm2 1
MC4 Connector 1 set of  MC4 branch connector ( 1 input 1 output ) 1
System output 1560WH =960WH(PV electricity) + 600WH(Battery backup electricity)
110V/120V/220V/230V/240Vac can be customized before delivery
Recommended loads 1pcs TV, 1pcs fan, 4pcs lights
Others System will use solar prior, battery second, and then utility
System support utility or diesel/gasoline generator(>900W) input
estimated 0.3CBM & 50KG per set



500W Solar Generator System Description QTY
PCS
Components Solar panel 1pcs Mono solar panel 160W , Application area :Class A 1
All-in one solar generator built-in 1pcs 500W/12V pure sine wave inverter
Low frequency output ,Transfer time :<4ms
Multiple output: 2*AC output socket, 4*DC 12V, 2*USB.
1
built-in 1pcs 12V/20A PWM solar controller
Max PV input voltage :50V
PV Array Max Power :280W
built-in 1pcs 12V 50AH GEL battery
Size :229*138*208mm,15KG
Solar cable 40M PV cable 2.5mm2 1
MC4 Connector 1 set of  MC4 branch connector ( 1 input 1 output ) 1
System output 1560WH =960WH(PV electricity) + 600WH(Battery backup electricity)
110V/120V/220V/230V/240Vac can be customized before delivery
Recommended loads 1pcs TV, 1pcs fan, 4pcs lights
Others System will use solar prior, battery second, and then utility
System support utility or diesel/gasoline generator(>1500W) input
estimated 0.3CBM & 52KG per set



1000W Solar Generator System Description QTY
PCS
Components Solar panel 2pcs Mono solar panel 160W , Application area :Class A
Connection way : 2 pcs in parallel
2
All-in one solar generator built-in 1pcs 1000W/12V pure sine wave inverter
Low frequency output ,Transfer time :<4ms
Multiple output: 2*AC output socket, 4*DC 12V, 2*USB.
1
built-in 1pcs 12V/40A PWM  solar controller
Max PV input voltage :50V
PV Array Max Power :560W
built-in 1pcs 12V 100AH GEL battery
Each size :407*172*208mm,29KG
Solar bracket 1 set of  aluminum bracket for ground/pitched roof 1
Solar cable 60M PV cable 4mm2 1
MC4 Connector 1 set of MC4 Connector :
1 set of  MC4 branch connector (2input 1output)
1 set of  MC4 branch connector ( 1 input 1 output )
1
System output 3120WH =1920WH(PV electricity) + 1200WH(Battery backup electricity)
110V/120V/220V/230V/240Vac can be customized before delivery
Recommended loads 1pcs TV, 1pcs fan, 4pcs lights
Others System will use solar prior, battery second, and then utility
System support utility or diesel/gasoline generator(>3000W) input
estimated 0.8CBM & 130KG per set






All In One Solar Generator System Wiring Diagram



all in one solar generator system wiring diagram



Contact me for customized home solar generator system solutions and wiring method.






All In One Solar Generator System Equipment List



2000W Solar Generator System Description QTY
PCS
Components Solar panel 4pcs poly solar panel 330W ,Application area :Class A
Connection way : 4 pcs in parallel
4
All-in one solar generator built-in 1pcs 2000W/24V pure sine wave inverter
Low frequency output ,Transfer time :<4ms
Multiple output: 2*AC output socket, 4*DC 12V, 4*USB.
1
built-in 1pcs 24V/60A MPPT solar controller
Max PV input voltage :150V ,PV Array Max Power :1680W
built-in 2pcs 12V 200AH GEL battery
Each Size :522*240*220mm,55KG
Solar bracket 1 set of  aluminum bracket for ground/pitched roof 1
Solar cable 60M PV cable 4mm2 1
MC4 Connector 1 set of MC4 Connector :
3 sets of  MC4 branch connector (2input 1output)
1 set of  MC4 branch connector ( 1 input 1 output )
1
System output 11400WH =6600WH(PV electricity) + 4800WH(Battery backup electricity)
110V/120V/220V/230V/240Vac can be customized before delivery
Recommended loads 1pcs AC(1P), 1pcs fridge, 1pcs cooker, 1pcs TV, 2pcs fan, 4pcs lights
Others System will use solar prior, battery second, and then utility
System support utility or diesel/gasoline generator(>6KW) input
estimated 1.6CBM & 310KG per set



3000W Solar Generator System Description QTY
PCS
Components Solar panel 4pcs poly solar panel 330W ,Application area :Class A
Connection way : 4 pcs in parallel
4
All-in one solar generator built-in 1pcs 3000W/24V pure sine wave inverter
Low frequency output ,Transfer time :<4ms
Multiple output: 2*AC output socket, 4*DC 12V, 4*USB.
1
built-in 1pcs 24V/60A MPPT solar controller
Max PV input voltage :150V , PV Array Max Power :1680W
built-in 2pcs 12V 200AH GEL battery
Each Size :522*240*220mm,55KG
Solar bracket 1 set of  aluminum bracket for ground/pitched roof 1
Solar cable 60M PV cable 4mm2 1
MC4 Connector 1 set of MC4 Connector :
3 sets of  MC4 branch connector (2input 1output)
1 set of  MC4 branch connector ( 1 input 1 output )
1
System output 11400WH =6600WH(PV electricity) + 4800WH(Battery backup electricity)
110V/120V/220V/230V/240Vac can be customized before delivery
Recommended loads 1pcs AC(2P), 1pcs fridge, 1pcs cooker, 1pcs TV, 2pcs fan, 4pcs lights
Others System will use solar prior, battery second, and then utility
System support utility or diesel/gasoline generator(>9KW) input
estimated 1.1CBM & 320KG per set



5000W Solar Generator System Description QTY
PCS
Components Solar panel 8pcs poly solar panel 330W ,Application area :Class A
Connection way : 2pcs in series ,4 groups  in parallel
8
All-in one solar generator built-in 1pcs 5000W/48V pure sine wave inverter
Low frequency output ,Transfer time :<4ms
Multiple output: 2*AC output socket, 4*DC 12V, 4*USB.
1
built-in 1pcs 48V/60A MPPT solar controller
Max PV input voltage :150V ,PV Array Max Power :3360W
built-in 4*12V 200AH GEL battery
Each Size :522*240*220mm,55KG
Solar bracket 1 set of aluminum bracket for ground/pitched roof 1
Solar cable 100M PV cable 4mm2 1
MC4 Connector 1 set of MC4 Connector :
3 sets of  MC4 branch connector (2input 1output)
5 sets of MC4 connector(1input 1output)
1
System output 25440WH =15840WH(PV electricity) + 9600WH(Battery backup electricity)
110V/120V/220V/230V/240Vac can be customized before delivery
Recommended loads 1pcs AC(2P), 1pcs fridge, 1pcs cooker, 1pcs TV, 2pcs fan, 4pcs lights
Others System will use solar prior, battery second, and then utility
System support utility or diesel/gasoline generator(>15KW) input
estimated 1.9 CBM & 540KG per set



700W Solar Generator System Description QTY
PCS
Components Solar panel 8pcs poly solar panel 330W ,Application area :Class A
Connection way : 2pcs in series ,4 groups  in parallel
8
1pcs all-in one solar generator built-in 1pcs 7000W/48V pure sine wave inverter
Low frequency output ,Transfer time :<4ms
Multiple output: 2*AC output socket, 4*DC 12V, 4*USB.
1
built-in 1pcs 48V/60A MPPT solar controller
Max PV input voltage :150V ,PV Array Max Power :3360W
built-in 4*12V 200AH GEL battery
Each Size :522*240*220mm,55KG
Solar bracket 1 set of aluminum bracket for ground/pitched roof 1
Solar cable 100M PV cable 4mm2 1
MC4 Connector 1 set of MC4 Connector :
3 sets of  MC4 branch connector (2input 1output)
5 sets of MC4 connector(1input 1output)
1
System output 25440WH =15840WH(PV electricity) + 9600WH(Battery backup electricity)
110V/120V/220V/230V/240Vac can be customized before delivery
Recommended loads 2pcs AC(1.5HP), 1pcs fridge, 1pcs cooker, 1pcs TV, 2pcs fan, 4pcs lights
Others System will use solar prior, battery second, and then utility
System support utility or diesel/gasoline generator(>21KW) input
estimated 1.9 CBM & 560KG per set






All In One Solar Generator System Wiring Diagram



all in one solar generator system wiring



Contact me for customized home solar generator system solutions and wiring method.






All In One Solar Generator System Components



All In One Solar Generator
1. Solar inverter + solar controller + batteries all in one
2. Plug and play solar generator with USB and DC/AC output socket
3. Low frequency pure sine wave output, compared to high-frequency unit, low-frequency has better stability
4. Capable of both solar and AC charging
5. PWM or MPPT solar controller optional
6. Gel or LifePO4 battery optional

home solar generator system with solar inverter controller and batteries

home solar generator system with solar panels

Solar Panels
1. Mono or poly solar panels optional
2. Front Glass: 3.2mm, Anti Reflection Coaring, High Transmission, Low Iron, Tempered Glass
3. Frame: Anodized Aluminium Alloy
4. Warranty: 25-years performance warranty

Solar Mounting System
1. Aluminum Alloy 6005-T5
2. Fasteners Material SUS304
3. Easy Installation, the installation angle can be adjusted according to the demand
4. Can Be used in different forms,Tin Roofs,Flat Roofs
5. 10 Years Warranty, Over 25 Years Service Life

home solar generator system with solar mounting system

home solar generator system with installation kit

Solar Accessories
1. Complete accessories including pv cable, battery cable, mc4 connector, combiner box
2. Additional installation kit (if required)
3. Perfectly match for solar generator system

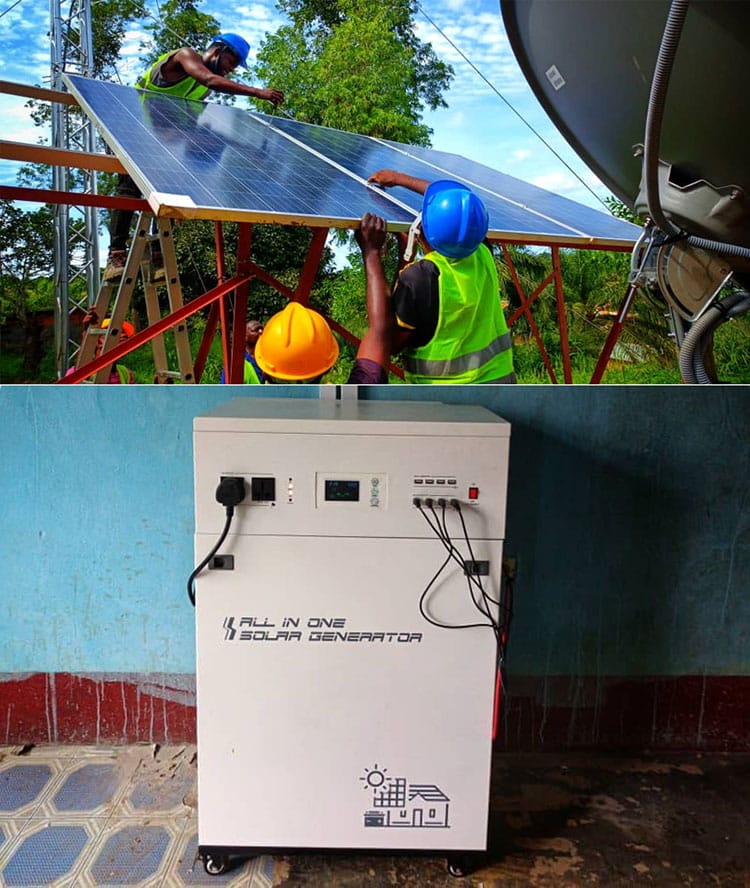

All In One Solar Generator System Installation & Application



home solar generator system application



all in one solar generator installation



all in one solar generator system installation



We also have many all in one solar generator system installation photos and videos, Contact me to get the solar case in your country.






All In One Solar Generator System Company



As an all in one solar generator system company in China, Xindun has large-scale production capacity. Due to China's maturity and advantage in the manufacturing industry, we can leverage the scale advantage to achieve efficient production, provide competitive prices, while ensuring quality and reliability to you. This will give me a significant competitive advantage in the international market. Besides, we can offer flexible solutions and provide customized solar generator system according to your requirements and needs. If you buy a complete home solar generator system from me, you will be able to get 1-3 years of after-sales maintenance for all solar components. Let us help you enjoy solar energy and uninterrupted power supply while reducing your energy bills.


▼ Solar Generator Factory



solar generator system company

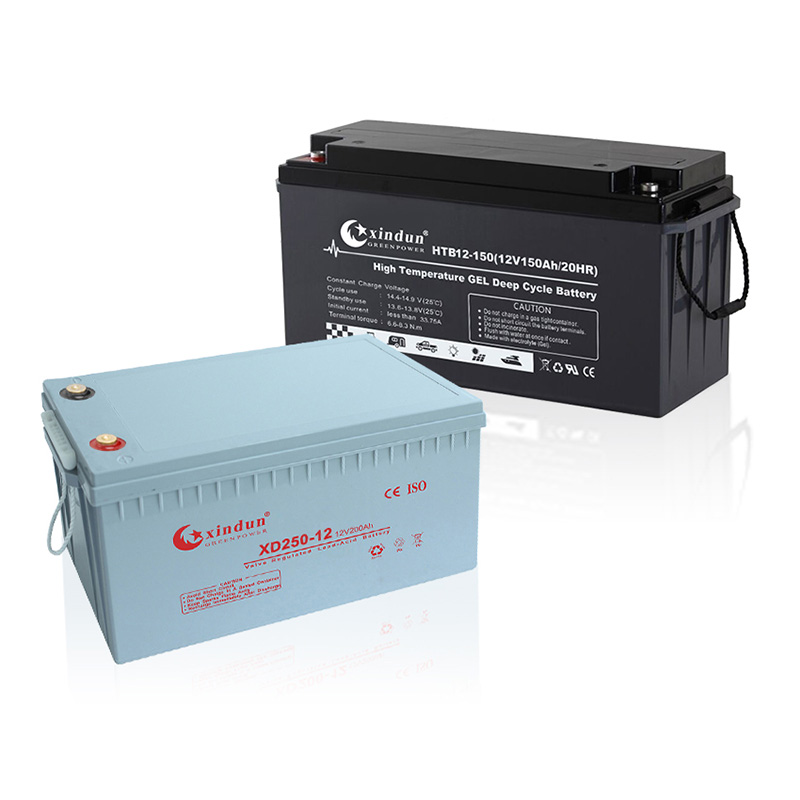

▼ Solar Batteries Factory
