Power Inverter
Home - Inverters - Power Inverter
rv inverter charger
rv inverter charger
motorhome inverter charger
caravan inverter charger
camper inverter charger

DF Caravan Motorhome Camper RV Power Inverter Charger 1000W-7000W

Input Voltage: 12V/24V48VDC | Output Voltage: 110V/120V/220V/230V/240VAC±2% | Efficiency: ≥85% | Type: Low frequency Power inverter charger Pure sine wave Output

1 : Supports dual LCD displays, optional 3-meter-long external display, one-button turn on and off the inverter and easy to view the operating data.

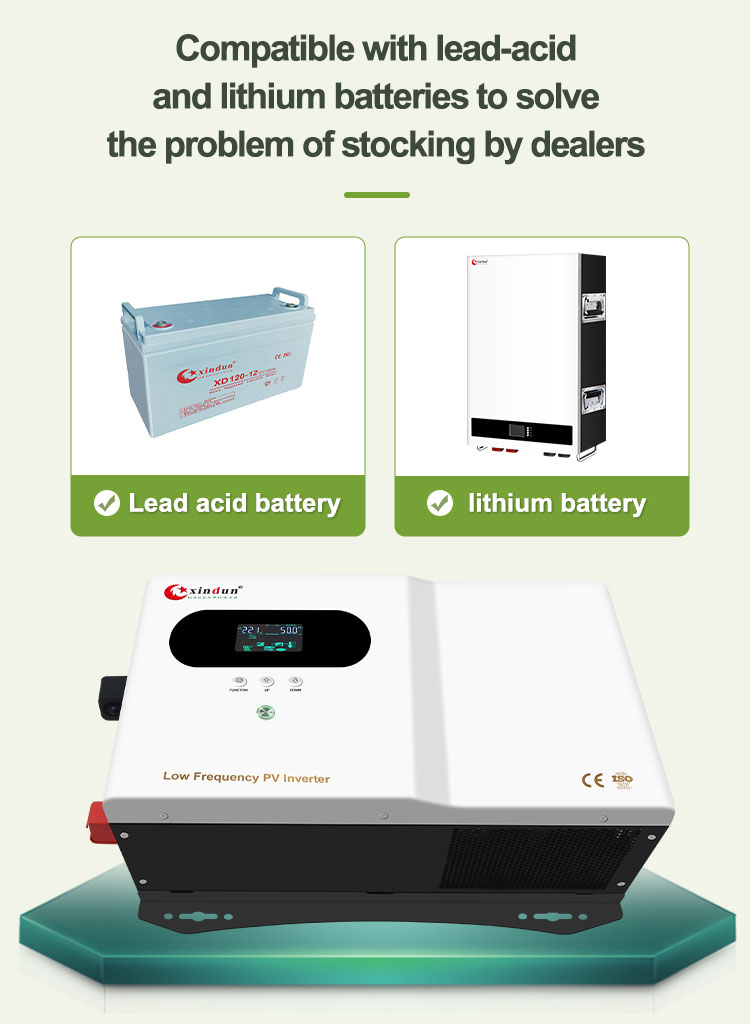

2 : Compatible with lithium and lead-acid batteries. Solar energy, diesel gasoline generators, and utility grid can charge the battery.

3 : Support RS485, WIFI, GPRS communication to monitor inverter operating data.

4 : Suitable for RV, camper, boats, food trucks, ambulances, yacht boat, homes, etc. Turn dc to ac.

5 : Power factory is 1.

Produt Details Download



About Xindun's Power Inverter Charger



Powering Your Adventures on Wheels:
Embark on your journey with confidence, knowing that Xindun's DF Series, a horizontal design power inverter charger, is your trusted companion for all your mobile power needs. Crafted with precision, this innovative inverter is tailored to cater to a diverse range of mobile living spaces, including RVs, motorhomes, caravans, campers, food trucks, and more.

Efficiency Unleashed:
Designed for life on the road, the DF Series inverter maximizes energy efficiency, ensuring that you have ample power for all your appliances and devices. With a focus on performance, it converts DC power from your vehicle's battery or extra-carry battery into clean and stable AC power, delivering a seamless and reliable energy source for your adventures.

Silent Powerhouse:
Enjoy the tranquility of your surroundings without the disturbance of a noisy generator. The DF Series inverter operates whisper-quiet, allowing you to savor the serenity of your outdoor settings while enjoying the comforts of home.

Your Gateway to Freedom:
With the DF Series inverter at your side, you have the freedom to roam, explore, and live life on your terms. It's the perfect solution for those seeking to power their mobile lifestyles, whether it's enjoying a road trip, embracing the RV / motorhome / caravan / camper lifestyle, or running a food truck business.



rv power inverter horizontal wall hangingrv inverter charger with universal AC output socketmotorhome power inverter compatible with lead-acid and lithium batteries






DF Power Inverter Charger Details



The DF Series power inverter charger combines an elegant exterior with intelligent internal engineering, offering a seamless blend of form and function. It's a silent powerhouse designed to increase the power generation efficiency of your motorhome, motorhome, caravan or campervan, reliability, and peace of mind.



motorhome inverter charger lcd display

caravan power inverter wiring port

caravan inverter charger circuit board






Power Inverter Technical Parameter

Accept OEM/ODM



Model: DF 10212/24/48 15212/24/48 20212/24/48 30224/48 40224/48 50248 60248 70248
Power
Rated Power 1000W 1500W 2000W 3000W 4000W 5000W 6000W 7000W
Phase Type Single- Phase
Battery
Standard Battery Voltage 12/24/48VDC 24/48VDC 24/48VDC 48VDC
Battery Type Lead-acid / Gel / Lithium Batteries//Custom battery
AC Input
Rated Input Voltage 110VAC/120VAC/220VAC /230VAC/ 240VAC
AC Input Voltage Range 85VAC~138VAC(110VAC)/ 95VAC~148VAC(120VAC)/ 170VAC~275VAC(220VAC)/
180VAC~285VAC(230VAC)/ 190VAC~295VAC(240VAC)
AC Input Frequency 45Hz~55Hz(50Hz),55Hz~65Hz(60Hz)
AC Output
Output Wave Pure Sine Wave
 Conversion efficiency(INV mode) >85%
Output Voltage/Frequency (INV mode) 110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2%,50/60Hz±1%
Built-in Controller MPPT(optional)
Rated Current 30A 60A 100A
PV Array Max Power 12V(420W)/24V(840W)/48V(1680W) 12V(840W)/24V(1680W)/48V(3360W) 5600W
Max PV Input Voltage(Voc)
(At The Lowest Temperature)
12V/24V system:120VDC;48V system:180VDC
MPPT Tracking Voltage Range 12V System(15V-80V)/24V System(30V-100V)/48V System(60V-140V)
Other
Protection Devices Battery undervoltage protection/Battery overvoltage protection/Overload power protection/Inverter output short circuit protection/Temperature protection
Protection Degree IP20
Display LCD
Cooling Method Cooling fan in intelligent control
Communication RS485/RS232,APP(WIFI monitoring or GPRS monitoring)Optional
Working Mode(settable) Battery priority/Mains  priority
Operating Temperature -15℃~40℃
Relative Humidity 0%~95% ,No condensation
Dimensions and Weight
Product Size(L*W*Hmm) 482*328*191 615*315*209
Packing Size(L*W*Hmm) 555*366*249 675*391*249
N.W.(kg) 12 13 15.5 18 23 24.5 26 27.5
G.W.(kg) 14 15 17.5 20 25.5 27 28.5 30

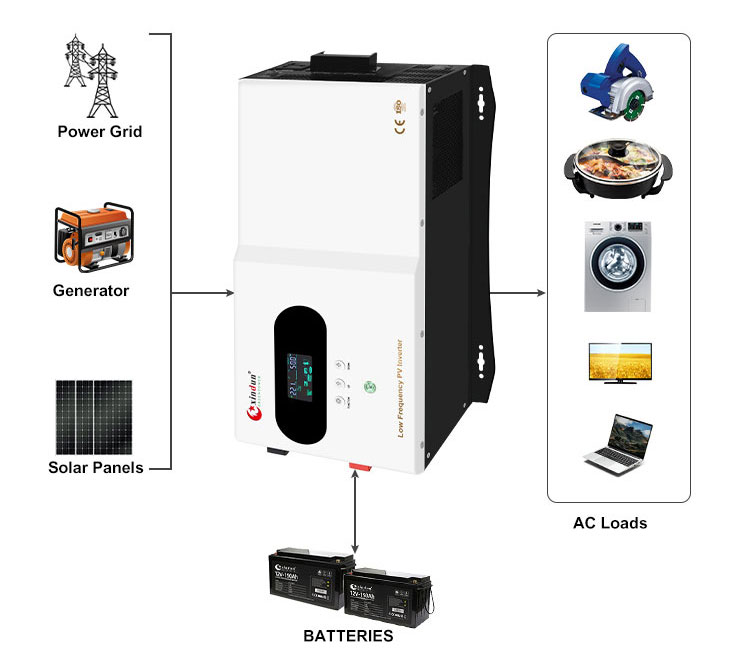

Power Inverter Charger Connection Diagram



An RV inverter that can use mains power, generators and solar energy to charge the battery and power the AC appliances on the RV



camper power inverter connection diagram






Power Inverter Charger for RV, Motorhome, Camper, Caravan



In the confined spaces of mobile living, every inch counts. The horizontal design of the DF Series power inverter charger not only saves space but also allows for convenient installation in various settings. Its compact form factor ensures it seamlessly integrates into your vehicle's layout, leaving you with more room for the experiences that matter most.
Xindun's DF Series power inverter charger is not just a power source; it's a gateway to limitless adventures. Get ready to embark on unforgettable journeys with the confidence that comes from having reliable and efficient power wherever you go. Experience freedom like never before with Xindun.



rv power inverter motorhome power inverter caravan power inverter camper power inverter






RV Inverter Manufacturing Company



At Xindun Power, innovation is at the heart of what we do. We take pride in developing cutting-edge solar inverters, power inverter charger, charge controllers, and energy storage systems that redefine efficiency and performance. Our products are designed to meet the unique needs of residential, commercial, and industrial clients, as well as rv, motorhome and camper, ensuring they get the most out of their solar investments. With a R&D team of nearly 50 people, distributors and traders are welcome to consult OEM.



camper inverter charger company






The 17-year-old factory has a 10,000-square-meter production plant and 8 subdivided production lines, dedicated to the production of power inverter charger. 3-step testing and aging ensures that each inverter is of high quality. You would rather trust a source inverter factory that only does one thing all year round, rather than a trader that changes products every year.



motorhome rv inverter charger factory






These certifications and endorsements are not just badges of honor for us; they are a testament to our unwavering commitment to our customers, the environment, and the advancement of the solar energy industry. When you choose Xindun Power, you're choosing products that have been rigorously tested, certified, and recognized for their quality and performance. We're proud of these achievements and look forward to continuing to set the industry standard for excellence.

caravan camper inverter charger certification






Over the years, we have expanded our reach to serve customers worldwide. Our global footprint has allowed us to understand and cater to the unique energy challenges faced by different regions. We are proud to have contributed to solar power projects across the globe, supporting the transition to renewable energy sources. The following are some photos of Xindun company participating in the global power exhibition.

Xindun at electricity exhibition around the world
