Wonder1 MPPT Solar Panel Charge Controller Price 12V-384V 10A-100A

Type: MPPT | Rated Current: 10A/20A/30A/40A/50A/60A/80A/100A | Rated Voltage: 12V/24V/48V/96V/192V/216V/240V384V | Max Solar Input Voltage: 150V-800V

1 : MPPT has higher power generation efficiency, 20% higher than PWM efficiency.

2 : MPPT 12V/24V/48V automatic identification.

3 : MPPT solar panel charge controller can connect to and charge the lithium battery.

4 : MPPT can work in parallel.

5 : OEM/ODM is ok.

Produt Details Download

12V 24V 48V 96V MPPT Solar Panel Charge Controller Price






Wonder1 Series MPPT Solar Panel Charge Controller



Here is Xindun's wonder1 series mppt solar panel controller, the model is mppt 12V/24V/48V automatic identification 10A/20A/30A/40A/50A/60A/80A/100A, and, mppt 96V/192V/216V/240V/384V 50A/100A. MPPT solar panel controller has the characteristics of maximum power point tracking, with higher power generation efficiency and 20% higher than PWM efficiency. Our mppt is already compatible with lithium batteries. When applied to multi-column solar arrays,, our mppt solar panel controller can also be used in parallel. The solar panel charge controller is the most popular solar controller type with the best performance, and its price is relatively expensive.



mppt 48v charge controller power generation efficiency48v 12v 24v charge controller48v mppt charge controller with lithium battery48v mppt can work in parallel






MPPT Solar Panel Charge Controller Details Show



From the visible exterior to the internal circuit, Xindun's solar controllers have fine workmanship. Our mppt can accept appearance customization and trademark customization.



24v solar controller china

solar panel charge controller 12v48v solar controller circuit board






MPPT 12V 24V 48V Solar Charge Controller Wiring & Datasheet



The solar controller is used in the solar power system to coordinate the work of solar panels, batteries and loads, and is the brain of the solar power system. The MPPT controller can detect the voltage generated by the solar panel in real time, and track the highest voltage and current value (VI), so that the solar power system can charge the battery with the maximum power output. Low voltage solar controller can charge DC load directly.

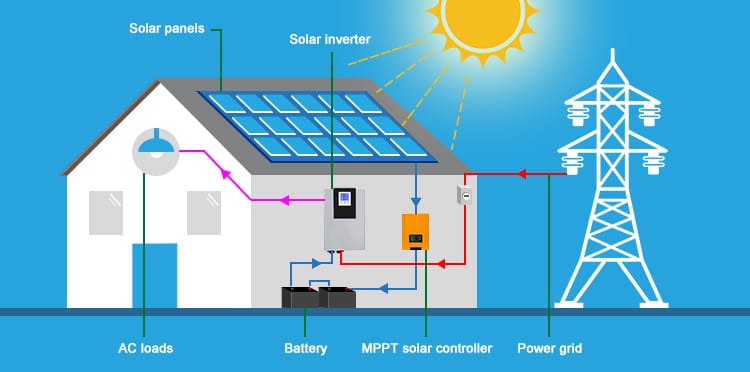

12v mppt charge controller connection

24v mppt charge controller wiring

Model: Wonder1 150/10, 150/20, 150/30
(10/20/30)
150/40, 150/50, 150/60
(40/50/60)
150/80, 150/100
(80/100)
Rated Current 10A/20A/30A 40A/50A/60A 80A/100A
Rated System Voltage 12V/24V/48V Auto Recognition
Max PV Input Voltage(Voc)
(At the lowest ambient temperature)
150V
MPPT Tracking Voltage Range 12V system:15V-120V;24V system:30V-120V;48V system:60V-120V
Recommended operating voltage range 12V system:15V-20V;24V system:30V-40V;48V system:60V-80V
PV array Max power 12V system: 140W(10A)/280W(20A)/420W(30A)/560W(40A)/700W(50A)/840W(60A)/1120W(80A)/1400W(100A);
24V system: 280W(10A)/560W(20A)/840W(30A)/1120W(40A)/1400W(50A)/1680W(60A)/2240W(80A)/2800W(100A);
48V system: 560W(10A)/1120W(20A)/1680W(30A)/2240W(40A)/2800W(50A)/3360W(60A)/4480W(80A)/5600W(100A)
Battery Type Lead acid battery(Battery type base on user charge specification)
Floating Voltage 13.8V/Single battery
Charge Voltage 14.2V/Single battery
Charging Protection Voltage 15V/Single battery
Promote recovery voltage  13.8V/Single battery
Recovery voltage after low voltage disconnect 12.5V/Single battery
Discharge Limited voltage 10.5V/Single battery
Temperature Compensation Coefficient -3mV / ℃ / 2V (25℃ is base line) (Optional)
Charging Mode MPPT maximum power point tracking
Charging Method Three stages: constant current(MPPT); constant voltage; floating charge
Protection Over-voltage/under-voltage/over-temperature/PV anti-reverse protection
Conversion Efficiency >98%
MPPT Tracking Efficiency >99%
Machine Size(L*W*Hmm) 185*135*65 240*143*74 280*180*100
Package Size(L*W*Hmm) 224*171*94(1pc)
351*233*196 (4pcs)
281*181*103(1pc)
371*290*214 (4pcs)
321*224*134(1pc)
457*330*142 (2pcs)
N.W(kg) 1.15(1pc) 1.8(1pc) 3.7(1pc)
G.W.(kg) 1.35(1pc) 2(1pc) 4.0(1pc)
Display LCD
Thermal Method Cooling fan in intelligent control
Type Of Mechanical Protection IP20
Operating Temperature -15℃~+50℃
Storage  Temperature -20℃~+60℃
Elevation 5000m(Dreating above 2000m)
Humidity 5%~95%(No condensation)
Communication  RS485/APP(WIFI monitoring or GPRS monitoring)
Note: All specifications are subject to change without prior notice






MPPT 96V 192V 240V 384V Solar Charge Controller Wiring & Datasheet



The high voltage mppt solar controller has dual solar inputs, which can be connected one by one according to the wiring ports on the function panel. If you don't understand how to use solar charge controller, you can contact Xindun at any time.

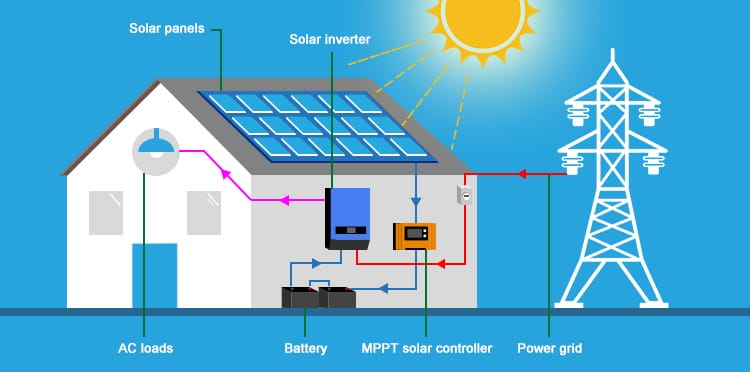

96v charge controller connection

96v mppt charge controller wiring

Model: Wonder1 96/50
(50)
96/100
(100)
192/50, 216/50, 240/50, 384/50
(50)
192/100, 216/100, 240/100, 384/100
(100)
Rated Current 50A 100A 50A 100A
Rated System Voltage 96V 96V 192V/216V/240V 384V 192V/216V/240V 384V
Max PV Input Voltage(Voc)
(At the lowest ambient temperature)
300V(96V system) / 450V(192V/216V system)/500V(240V system) / 800V(384V system)
PV array Max power 5.6KW 5.6KW*2 11.2KW/12.6KW/14KW/22.4KW 11.2KW*2/12.6KW*2/14KW*2/22.4KW*2
MPPT Tracking Voltage Range 120V~240V(96V system) / 240V/270V~360V(192V/216V system)/ 300V~400V(240V system) /480V~640V(384V system)
MPPT route number 1 2 1 2
Recommended operating voltage range 120V-160V(96V system); 240V-320V(192V system); 270V-320V(216V system); 300V-350V(240V system); 480V-560V(384V system)
Battery Type Lead acid battery(Battery type base on user charge specification)
Floating Voltage 110.4V(96V system)/220.8V(192V system)/248.4V(216V system)/276V(240V system)/441.6V(384V system)
Charge Voltage 113.6V(96V system)/227.2V(192V system)/255.6V(216V system)/284V(240V system)/454.4V(384V system)
Charging Protection Voltage 120V(96V system)/240V(192V system)/270V(216V system)/300V(240V system)/480V(384V system)
Promote recovery voltage  105.6V(96V system)/211.2V(192V system)/237.6V(216V system)/264V(240V system)/422.4V(384V system)
Temperature Compensation -3mV / ℃ / 2V (25℃ is base line) (Optional)
Charging Mode MPPT maximum power point tracking
Charging Method Three stages: constant current(MPPT); constant voltage; floating charge
Protection Over-voltage/under-voltage/over-temperature/PV&Battery anti-reverse protection
Conversion Efficiency >98%
MPPT Tracking Efficiency >99%
Machine Size(L*W*Hmm) 315*250*108 460*330*140 530*410*162
Package Size(L*W*Hmm) 356*296*147(1pc) / 365*305*303(2pcs) 509*405*215 598*487*239
N.W(kg) 4.5(1pc) 5.6(1pc) 13.5 15 22.6 26.5
G.W.(kg) 5.2(1pc) 6.3(1pc) 15 16.5 24.6 28.5
Display LCD
Thermal Method Cooling fan in intelligent control
Type Of Mechanical Protection IP20
Operating Temperature -15℃~+50℃
Storage  Temperature -20℃~+60℃
Elevation <5000m(Dreating above 2000m)
Humidity 5%~95%(No condensation)
Communication  RS485/APP(WIFI monitoring or GPRS monitoring)
Note: All specifications are subject to change without prior notice






MPPT Solar Panel Charge Controller Setup



You can view some of the customer cases that applied Xindun mppt charge controllers. mppt charge controllers are used in solar street lights, solar communications, household solar power systems, industrial solar power systems, etc., With high power generation efficiency. "Xindun is the one with the highest performance and price ratio among many solar charge controller suppliers." "Their charge controller is very convenient to use." "The service is as good as ever."



mppt 48v solar charge controller manufacturer & supplier




MPPT Solar Panel Charge Controller Packaging



Packaging is the last and most important part of our quality inspection of mppt charge controllers. Protective foam, protective film, and thickened honeycomb carton are all effective protection measures we take for packaging. In addition, we can also print your logo on the packing box.



12v solar panel charge controller manufacturer & supplier






MPPT Solar Panel Charge Controller Supplier - Xindun



A solar energy supplier with a history of 17 years in China, Xindun is mainly engaged in solar inverters, solar charge controllers, solar arrays, and off grid solar power systems. We can provide customers with one-stop services from product design, solution configuration, product production, marketing promotion, and after-sales technical services. Our main customer groups are Africa, Middle East, Asia and Latin America, South America. With rich export experience, you can ensure the safety and efficiency of importing charge controllers from China. The 10,000 square meter production plant, 20 engineering R&D personnel, more than 100 production workers, and several automated production equipment, all of these allow us to have strong R&D strength and strong production capacity.



96v mppt charge controller manufacturer & supplier

mppt 96v manufacturer & supplier96v charge controller manufacturer & supplier






MPPT Solar Panel Charge Controller Manufacturer


OK, let me show you our actual production pictures. We will take a factory live show every month. Contact Xindun immediately to check the time of the next live broadcast.



mppt 48v charge controller manufacturer & supplier






Certified MPPT Solar Panel Charge Controller



Xindun company has passed ISO9001:2015 quality management system certification, ISO45001:2018 occupational health and safety management system certification, ISO14001:2015 environmental management system certification. mppt charge controller has passed CE certification and third-party inspection.



96v mppt solar charge controller certificate
