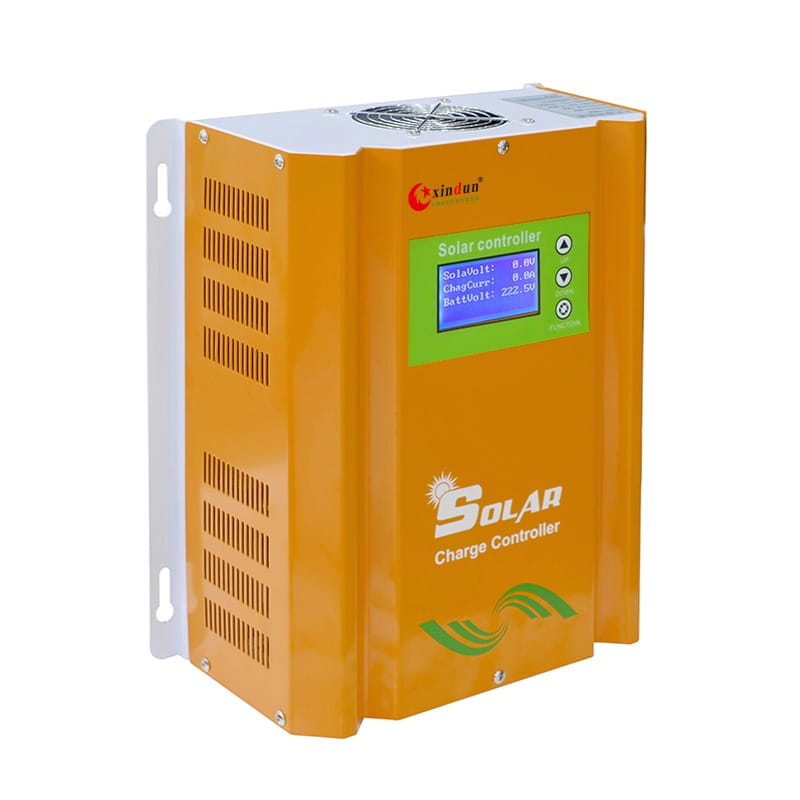

KY1 PWM Solar Panel Regulator Battery Charge Controller 96V-384V 50A-200A

Type: PWM | Rated Current: 50A/80A/100A/150A/200A | Rated Voltage: 96V/120V/192V/384V | Max Solar Input Voltage: 200V-750V

1 : PWM charging mode, high cost performance.

2 : Compatible with multiple battery types such as valve regulated lead-acid battery, gel battery, open-type lead-acid battery and user-set charging parameters.

3 : Charge controller for high-power industrial solar power station.

4 : RS485 communication port optional.

5 : Can screen print your logo on the controller.

Produt Details Download

solar panel regulator lead acid lithium ion solar battery charge controller



KY1 Series Solar Battery Charge Controller


Xindun solar battery charge controller regulator 96V-384V 50A-200A, has power regulation function, indication function, protocol communication function, and complete protection functions: electrical protection, reverse connection protection, short circuit protection, and overcurrent protection.

This industrial power station solar battery charge controller uses intelligent chip control algorithms to reduce controller failure rates and stabilize operation; The charge and discharge protection adopts advanced three-stage PWM charging technology: constant current, constant voltage, floating charge, to extend the battery life. Using PWM (pulse width modulation), the battery is charged a bit as soon as the voltage is low, one by one, to prevent the battery temperature from rising, which is very good for the battery because the internal temperature of the battery has a significant impact on the charging and discharging process. Compatible with lead acid battery, gel battery and other battery.


solar panel regulator charge controller - smart chipsolar panel regulator charge controller - pwm charging technologylithium ion battery lead acid battery solar charge controller regulatorsolar battery regulator - multiple security protectionsolar battery regulator - rs232/rs485 communication interfacesolar panel regulator - dual solar input



Solar Battery Charge Controller Model


There are two different sorts of solar battery charge controllers to pick from depending on various voltages and currents. Their roles change and adapt to various work settings. You can make a decision based on real-world situations! Please get in touch with our specialists if you're unsure which battery charge controller would be best for your solar system if you had any queries!


96v 50a 100a solar battery regulator

96v 150a 200a solar battery regulatorsolar battery regulator with lcd display


Solar Battery Charge Controller Datasheet


Solar Battery Charge Controller Parameter
Model:KY1 5096/192 10096 50384 80120 100192/384 15096/192/384 20096/192/384
Rated charging current 50A 100A 50A 80A 100A 150A 200A
Rated system voltage 96V/192V 96V 384V 120V 192V/384V 96V/192V/384V
PV input voltage range 96V System:120V-176V;120V System:150V-220V;192V System:240V-352V;384V System:480V-704V
Max PV Input Voltage(Voc)
(At the lowest temperature)
96V System:200V;120V System:250V;192V System:400V;384V System:750V
Number of PV array input routes 1 1 2
PV Array Maximum Power 5.6KW/11.2KW 11.2KW 22.4KW 11.2KW 22.4KW/44.8KW 8.4KW*2/16.8KW*2/
44.8 KW *2
Battery type Valve Regulated Lead Acid battery (Battery type base on user charge specification)
Floating voltage 13.8V/Single battery
Charge voltage 14.2V/Single battery
Charging protection voltage 15V /Single battery
Temperature compensation coefficient -3mV / ℃ / 2V (25℃  is base line )(Only models above 96V support optional)
Charging mode PWM pulse width control
Charging method Three stages :constant current; constant voltage; floating charge
Efficiency >95%
Display LCD
Cooling method Cooling fan in intelligent control
Type of mechanical protection IP20
Operating temperature -15℃~+50℃
Storage  temperature -20℃~+60℃
Elevation <5000m,(Less solar panel when exceed 2000m)
Humidity 5~95%(No condense)
Protect the circuit RS485(Only models above 96V support optional)
Machine size (L*W*Hmm) 340*300*140 460*360*160 500*330*805
Package size (L*W*Hmm) 400*345*195 530*405*225 565*395*870
N.W (Kg) 5 6 9 9.5 10 32 33
G.W (Kg) 6 7 11 11.5 12 37 38
Note: All specifications are subject to change without prior notice



Solar Battery Charge Controller Connection


In the entire solar system, this solar battery charge controller adjusts the DC current of the solar panel to charge and discharge the battery, stabilizes the current and voltage, and protects the battery to extend its life! At the bottom of the battery charge controller, there are positive and negative connection ports for the solar input and battery. Connect them correctly according to the instructions, and do not connect them reversely. This is easy to use.


lead acid battery charge controller connection

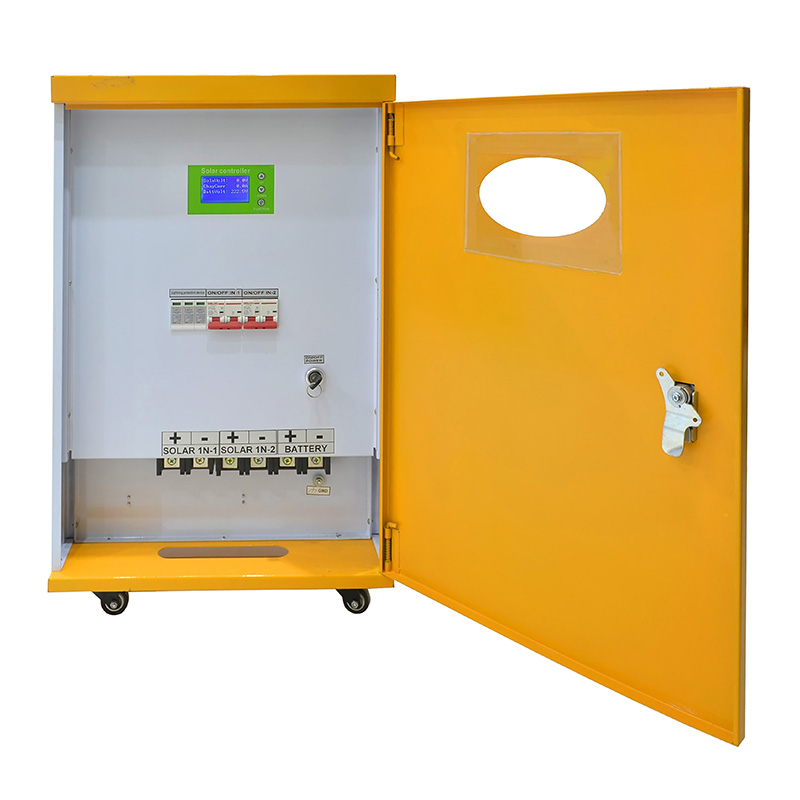

96V-384V,150A-200A, This solar battery charge controller can support the simultaneous connection of two solar panels. A solar panel is equivalent to a power supply. The power supply can be connected in series and in parallel. It is necessary to note that the output of the two needs to match. For a series connection, the maximum power point output current is consistent, and for a parallel connection, the maximum power point output voltage is consistent.

Be Careful:
1. When connecting, connect the battery first, and then connect the solar input. Pay attention to its polarity, and do not connect it reversely;
2. Remove the solar first and then the battery.

lithium battery solar regulator connection

solar panel regulator charge controller connection



Solar Battery Charge Controller Brand


Which brand is better for solar battery charge controller regulator? Xindun Power has expanded to employ more than 280 people since the company was founded in 2007. This number includes more than 30 senior engineers in R&D and design, more than 100 factory producers, more than 80 sales and promotion staff, and more than 30 after-sales technical service members. To ensure an adequate supply of solar battery charge controller and inverters, more than 10 international warehouses have been constructed. Also, our inverters and off-grid solar system have been marketed and promoted in more than 80 countries and regions. So far, we have provided high-quality battery charge controllers to hundreds of brand around the world.


lithium ion battery charge controller brand



Xindun in Solar Power Exhibition


As a leading manufacturer of high-quality inverter chargers and solar battery charge controllers in China, we exhibit our best solar products at international solar energy events almost every year. This attracts a lot of clients who discuss solar technology and ultimately sign a collaboration agreement.


lithium solar regulator - xindun power from chinalithium battery solar regulator - xindun from china



Solar Battery Charge Controller Manufacturer Supplier


Xindun Power is a famous Chinese supplier and manufacturer in the solar energy industry. More than 10,000 square meters make up our factory. Additionally, we can build 10,000 inverters and charge controller regulator each month, and we export the best pure sine wave inverter, solar battery charge controller, and solar systems for up to 80% of our annual revenue. We manufacture and create a variety of products, including inverters, solar panels, charge controllers, batteries, solar panel holders, cables, and other solar system components.

Our free design projects and drawing ideas are another free perk. Sincerely consult!


solar battery regulator manufacturer supplier

Tag: solar charge controller
