SESS-LS Off Grid Solar System 1Kw 2Kw 3Kw 4Kw 5Kw 6Kw

Xindun off grid solar system has undergone hundreds of practical applications, purchasing a complete solar system with solar panels/batteries/inverter, saves you procurement time and cost, installation and maintenance all duties to one company.

Type : Off Grid Solar System

Power : 1KW-6KW

Input Voltage : DC 12V/24V/48V

Output Voltage : AC 110V/120V/220V/230V/240V (Support Split Phase Output)

Brand : Xindun Power (Factory)

Original : China

Service : Customized Solutions, Cost Calculation, Installation Guidance, Maintenance, Product Training

Produt Details Download

1Kw 2Kw 3Kw 4Kw 5Kw 6Kw Off Grid Solar System Design



Off grid solar system : self-sufficient clean energy

Off grid solar systems are devices that can convert solar energy into electricity, providing stable electricity for homes and other places. This system can break free from dependence on traditional power grids, while also reducing electricity bills and environmental impacts.

Xindun hot-sells various specifications of solar systems: 1kw off grid solar system, 2kw off grid solar system, 3kw off grid solar system, 4kw off grid solar system, 5kw off grid solar system, 6kw off grid solar system. The off grid solar system is composed of components such as solar panels, batteries, inverter, and solar charge controller. Solar panels will absorb solar energy, while batteries are responsible for storing electrical energy for use when there is insufficient sunlight. The inverter converts the direct current of solar energy or batteries into alternating current, and the solar charge controller monitors and adjusts the entire system based on the current state.

In addition to the initial investment cost, the off grid solar system requires almost no maintenance costs. If install and use correctly, the system will has a lifespan of 5 years or more. In addition to solving your own electricity consumption problems, it can even obtain a certain financial return. Off grid solar systems, as a very practical energy solution, are receiving increasing attention from people. Contact Xindun to obtain a solution and quotation for the off grid solar system.



Off Grid Solar System 1Kw 2Kw 3Kw 4Kw 5Kw 6Kw - Xindun China






Off Grid Solar System Equipment List



1Kw Off Grid Solar System Description QTY
PCS
Components Solar panel 2pcs Mono solar panel 160W , Application area : Class A
Connection way : 2 pcs in parallel
2
Solar inverter 1pcs 1KW/12V pure sine wave inverter
Low frequency output ,Transfer time :<4ms
built-in:
1pcs 12V/30A PWM  solar controller
Max PV input voltage :50V
PV Array Max Power :420W
1
Solar battery 2pcs 12V 100AH GEL battery
Each size :407*172*208mm,29KG
2
Solar bracket 1 set of  aluminum bracket for ground/pitched roof 1
Solar cable 60M PV cable 4mm2 1
MC4 Connector 1 set of MC4 Connector :
1 set of  MC4 branch connector (2input 1output)
2 sets of  MC4 branch connector ( 1 input 1 output )
1
System output 4320WH =1920WH(PV electricity) + 2400WH(Battery backup electricity)
110V/120V/220V/230V/240Vac can be customized before delivery
Recommended loads 1pcs TV, 1pcs fan, 4pcs lights
Others System will use solar prior, battery second, and then utility
System support utility or diesel/gasoline generator(>3000W) input
estimated 0.8CBM & 130KG per set



2Kw Off Grid Solar System Description QTY
PCS
Components Solar panel 4pcs poly solar panel 330W ,Application area :Class A
Connection way : 4 pcs in parallel
4
Solar inverter 1pcs 2KW/24V pure sine wave inverter
Low frequency output ,Transfer time :<4ms
built-in :
1pcs 24V/60A MPPT solar controller
Max PV input voltage :150V
PV Array Max Power :1680W
1
Solar battery 2pcs 12V 200AH GEL battery
Each Size :522*240*220mm,55KG
2
Solar bracket 1 set of  aluminum bracket for ground/pitched roof 2
Solar cable 60M PV cable 4mm2 1
MC4 Connector 1 set of MC4 Connector :
2 sets of  MC4 branch connector (2input 1output)
3 sets of  MC4 branch connector ( 1 input 1 output )
1
System output 11400WH =6600WH(PV electricity) + 4800WH(Battery backup electricity)
110V/120V/220V/230V/240Vac can be customized before delivery
Recommended loads 1pcs AC(1P), 1pcs fridge, 1pcs cooker, 1pcs TV, 2pcs fan, 4pcs lights
Others System will use solar prior, battery second, and then utility
System support utility or diesel/gasoline generator(>6KW) input
estimated 1.6CBM & 310KG per set



3Kw Off Grid Solar System Description QTY
PCS
Components Solar panel 4pcs poly solar panel 330W ,Application area :Class A
Connection way : 4 pcs in parallel
4
Solar inverter 1pcs 3KW/24V pure sine wave inverter
Low frequency output ,Transfer time :<4ms
built-in :
1pcs 24V/60A MPPT solar controller
Max PV input voltage :150V
PV Array Max Power :1680W
1
Solar battery 2pcs 12V 200AH GEL battery
Each Size :522*240*220mm,55KG
2
Solar bracket 1 set of  aluminum bracket for ground/pitched roof 2
Solar cable 60M PV cable 4mm2 1
MC4 Connector 1 set of MC4 Connector :
2 sets of  MC4 branch connector (2input 1output)
3 set of  MC4 branch connector ( 1 input 1 output )
1
System output 11400WH =6600WH(PV electricity) + 4800WH(Battery backup electricity)
110V/120V/220V/230V/240Vac can be customized before delivery
Recommended loads 1pcs AC(2P), 1pcs fridge, 1pcs cooker, 1pcs TV, 2pcs fan, 4pcs lights
Others System will use solar prior, battery second, and then utility
System support utility or diesel/gasoline generator(>9KW) input
estimated 1.6CBM & 320KG per set



4Kw Off Grid Solar System Description QTY
PCS
Components Solar panel 8pcs poly solar panel 330W, Application area: Class A
Connection way : 2pcs in series ,4 groups  in parallel
8
Solar inverter 1pcs 4KW/48V pure sine wave inverter
Low frequency output ,Transfer time :<4ms
built-in:
1pcs 48V/60A MPPT solar controller
Max PV input voltage :150V
PV Array Max Power :3360W
1
Solar battery 4*12V 200AH GEL battery
Each Size :522*240*220mm,55KG
4
Solar bracket 1 set of aluminum bracket for ground/pitched roof 4
Solar cable 100M PV cable 4mm2 1
MC4 Connector 1 set of MC4 Connector :
4 sets of  MC4 branch connector (2input 1output)
5 sets of MC4 connector(1input 1output)
1
System output 25440WH =15840WH(PV electricity) + 9600WH(Battery backup electricity)
110V/120V/220V/230V/240Vac can be customized before delivery
Recommended loads 1pcs AC(2P), 1pcs fridge, 1pcs cooker, 1pcs TV, 2pcs fan, 4pcs lights
Others System will use solar prior, battery second, and then utility
System support utility or diesel/gasoline generator(>12KW) input
estimated 1.9 CBM & 540KG per set



5Kw Off Grid Solar System Description QTY
PCS
Components Solar panel 8pcs poly solar panel 330W, Application area: Class A
Connection way : 2pcs in series ,4 groups  in parallel
8
Solar inverter built-in 1pcs 5KW/48V pure sine wave inverter
Low frequency output ,Transfer time :<4ms
built-in :
1pcs 48V/60A MPPT solar controller
Max PV input voltage :150V
PV Array Max Power :3360W
1
Solar battery 4*12V 200AH GEL battery
Each Size :522*240*220mm,55KG
4
Solar bracket 1 set of aluminum bracket for ground/pitched roof 4
Solar cable 100M PV cable 4mm2 1
MC4 Connector 1 set of MC4 Connector :
4 sets of  MC4 branch connector (2input 1output)
5 sets of MC4 connector(1input 1output)
1
System output 25440WH =15840WH(PV electricity) + 9600WH(Battery backup electricity)
110V/120V/220V/230V/240Vac can be customized before delivery
Recommended loads 2pcs AC(1.5HP), 1pcs fridge, 1pcs cooker, 1pcs TV, 2pcs fan, 4pcs lights
Others System will use solar prior, battery second, and then utility
System support utility or diesel/gasoline generator(>15KW) input
estimated 1.9 CBM & 560KG per set



6Kw Off Grid Solar System Description QTY
PCS
Components Solar panel 8pcs poly solar panel 330W, Application area: Class A
Connection way : 2pcs in series ,4 groups  in parallel
8
Solar inverter built-in 1pcs 6KW/48V pure sine wave inverter
Low frequency output ,Transfer time :<4ms
built-in :
1pcs 48V/60A MPPT solar controller
Max PV input voltage :150V
PV Array Max Power :3360W
1
Solar battery 4*12V 200AH GEL battery
Each Size :522*240*220mm,55KG
4
Solar bracket 1 set of aluminum bracket for ground/pitched roof 4
Solar cable 100M PV cable 4mm2 1
MC4 Connector 1 set of MC4 Connector :
4 sets of  MC4 branch connector (2input 1output)
5 sets of MC4 connector(1input 1output)
1
System output 25440WH =15840WH(PV electricity) + 9600WH(Battery backup electricity)
110V/120V/220V/230V/240Vac can be customized before delivery
Recommended loads 2pcs AC(1.5HP), 1pcs fridge, 1pcs cooker, 1pcs TV, 2pcs fan, 4pcs lights
Others System will use solar prior, battery second, and then utility
System support utility or diesel/gasoline generator(>18KW) input
estimated 1.9 CBM & 560KG per set






Off Grid Solar System Components

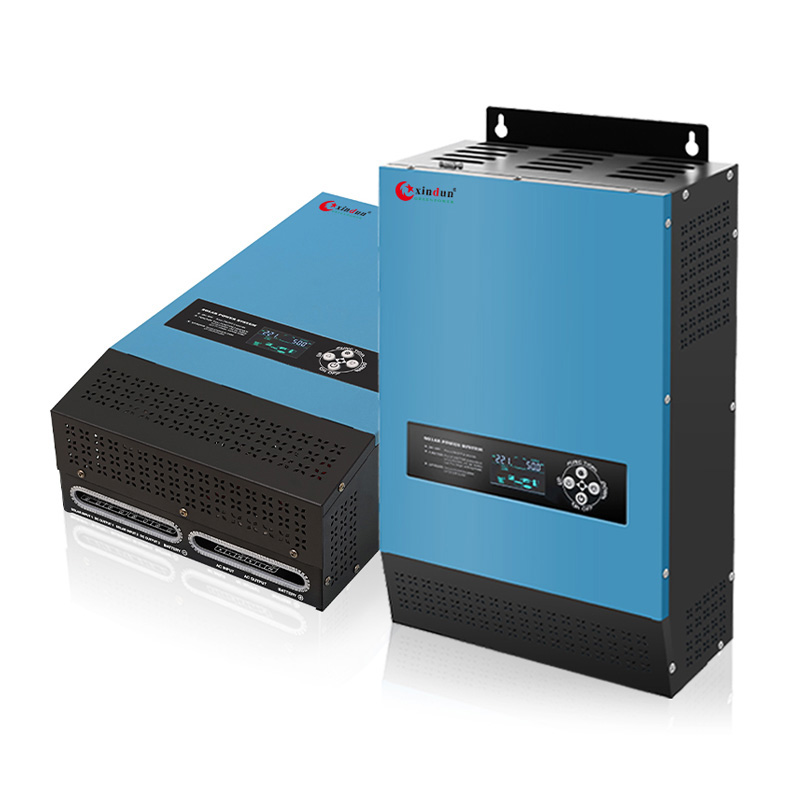

Solar Inverter
1. Off grid solar inverter with mppt charge controller in it
2. Low frequency inverter with toroidal transformer, pure sine wave, stable carrying capacity
3. Can have dual output voltage, 120V&240V or 110V&220V, more suitable for users in the Americas region
4. Compatible with lead-acid and lithium batteries
5. Equipped with solar/AC/generator to charge the battery through inverter
6. WIFI or GPRS communication port optional

5kw off grid solar system with inverter

4kw off grid solar system with batteries

Lithium Battery
1. High safety level of lithium lifepo4 battery cell
2. Long life cycle time >6000cycles
3. Advanced BMS protection functionality
4. Installation: Floor/Wall mounted

Gel Battery
1. High thermal stability and resistance to overcharging and discharging
2. The deep discharge cycle life is increased 50%
3. Gel battery have better safety

Solar Panels
1. Mono or poly solar panels optional
2. Front Glass: 3.2mm, Anti Reflection Coaring, High Transmission, Low Iron, Tempered Glass
3. Frame: Anodized Aluminium Alloy
4. Warranty: 25-years performance warranty

3kw off grid solar system with solar panels

2kw off grid solar system with solar mounting system

Solar Mounting System
1. Aluminum Alloy 6005-T5
2. Fasteners Material SUS304
3. Easy Installation, the installation angle can be adjusted according to the demand
4. Can Be used in different forms,Tin Roofs,Flat Roofs
5. 10 Years Warranty, Over 25 Years Service Life
Solar Accessories
1. Complete accessories including pv cable, battery cable, mc4 connector, combiner box
2. Additional installation kit (if required)
3. Perfectly match for solar system

1kw off grid solar system with solar accessories






Off Grid Solar System Wiring Diagram



6kw off grid solar system wiring diagram



Contact me for customized off grid solar system solutions and wiring method.






Off Grid Solar System Installation & Application



off grid solar system 1kw application



We also have many off grid solar system installation photos and videos, Contact me to see the installation case in your city.






Off Grid Solar System Brand



A best off grid solar system brand is here - XINDUN POWER from China. Make the switch to solar power today with our high-quality off grid solar systems! Our products are designed to provide you with maximum efficiency, reduce your energy costs, and provide long-term savings. We offer a wide range of solar panels, solar inverters, batteries, and solar mounting systems to meet your unique needs, and our team of experts is committed to providing you with exceptional customer service and technical support. We have years of experience in the solar power industry, and we have built a reputation for providing top-quality products and outstanding customer service. Contact us today to learn more and receive a customized quote.
