120 240 Volt Solar Electricity Inverter 10KW-12KW

Input Voltage: 48 Volt DC | Output Voltage:L1-N-L2（L1-L2：200/210/220/240 Volt AC；L1-N/L2-N：100/105/110/120 Volt AC）±2% | Solar Charging: MPPT | PV Input Voltage: 125 Volt-500 Volt DC | Mode: On Grid & Off Grid & Hybrid & Battery-less Mode

1 : Split phase input and output, and US standard single phase input and output, flexibly adapting to different power grid standards.

2 : Supports parallel operation of up to 6 units, supporting single phase or three phase system expansion.

3 : Features time of use charging and discharging capabilities, fully utilizing peak and off peak electricity pricing to reduce costs.

4 : Supports hybrid power supply from solar and mains electricity, enabling intelligent charging of loads and batteries.

5 : Supports battery-less operation, meeting diverse application needs.

6 : Supports lithium battery activation and BMS communication functions for intelligent battery management.

7 : Provides USB/RS485/dry contact/WIFI/GPRS communication interfaces for convenient remote monitoring and system management.

8 : Built in MPPT solar controller, solar input voltage up to 500 Volt.

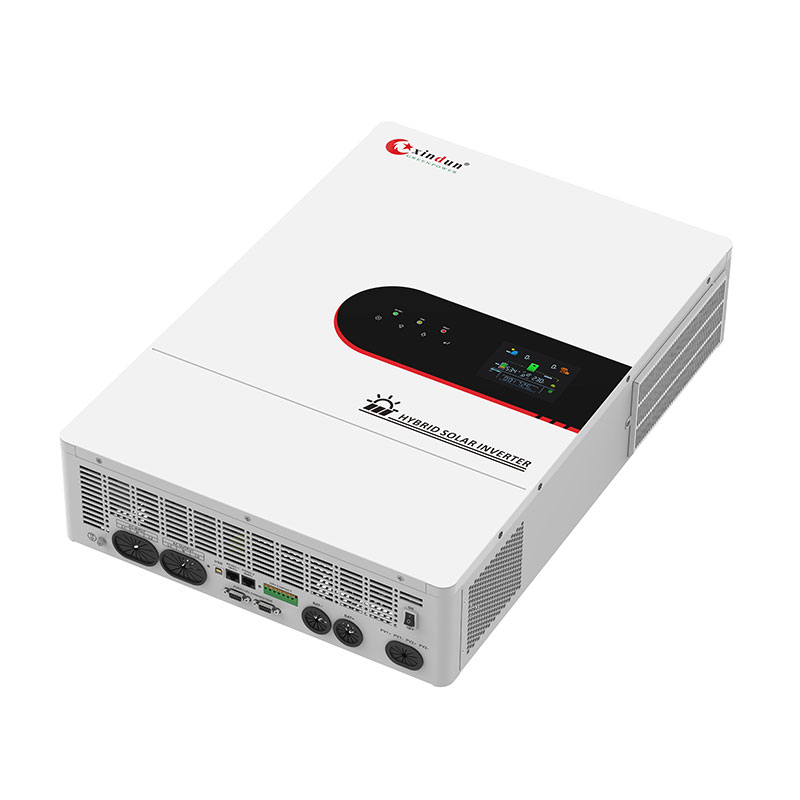

About Solar Electricity Inverter

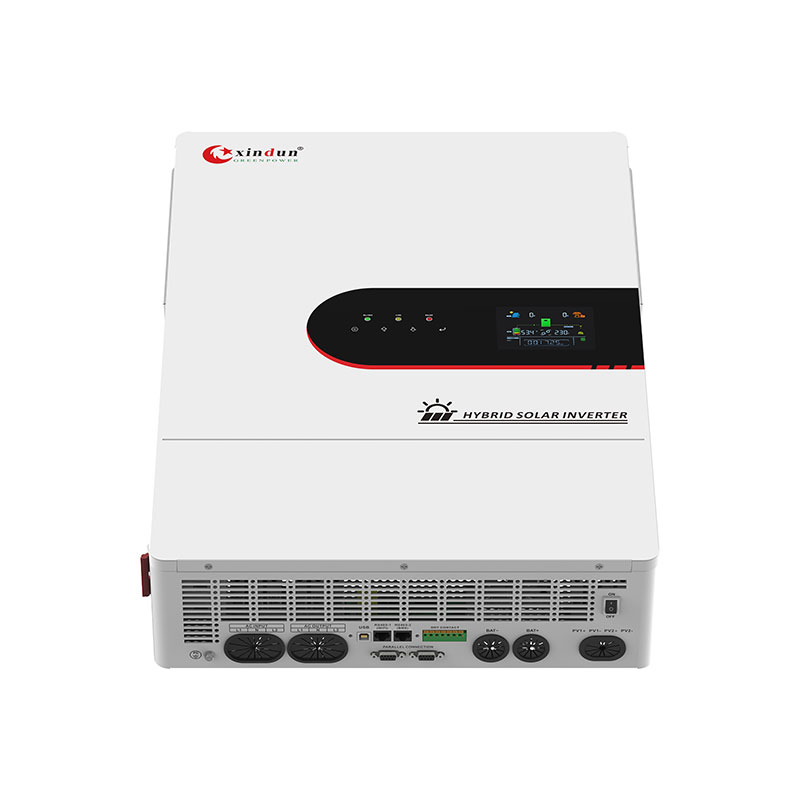

The 10KW/12KW solar electricity inverter is a on& off grid hybrid inverter featuring a high frequency design and pure sine wave output. It boasts dual output functionality, supporting split phase input and split phase output at 100&200 Volt AC, 105&210 Volt AC, 110&220 Volt AC, or 120&240 Volt AC, as well as US standard single phase input and single phase output at 100/105/110/120 Volt AC. With a maximum conversion efficiency of up to 92%, it also supports parallel operation, with up to six units connected in parallel (single phase or three phase), achieving a total power output of up to 60KW/72KW, meeting the needs of different power expansion stages. Both solar and mains power can charge the load and battery, allowing for normal power supply without battery, saving system costs. Built in high performance MPPT solar controller supports a maximum solar input voltage of 500 Volt, efficiently tracking the maximum power point of the solar panels and significantly improving energy conversion efficiency. Meanwhile, it features a customizable battery charging and discharging time setting function, which can accurately plan battery usage periods according to the user's power consumption habits, achieving 24-hour intelligent power management.

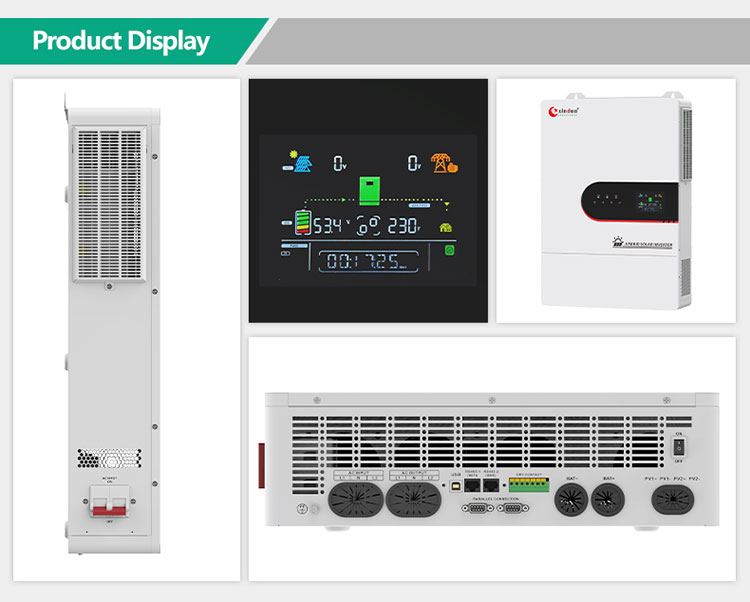

120 240 volt solar electiricity inverter details

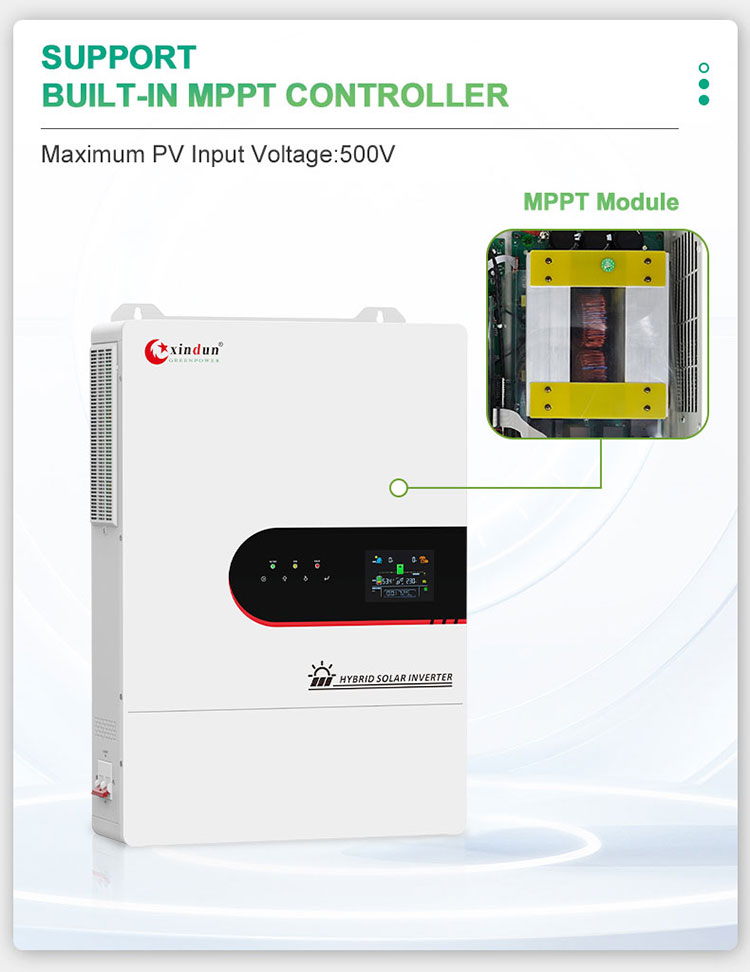

120 volt solar inverter mppt

inverter charging and discharging times

batteryless solar electricity inverter

solar inverter in parallel

inverter bms

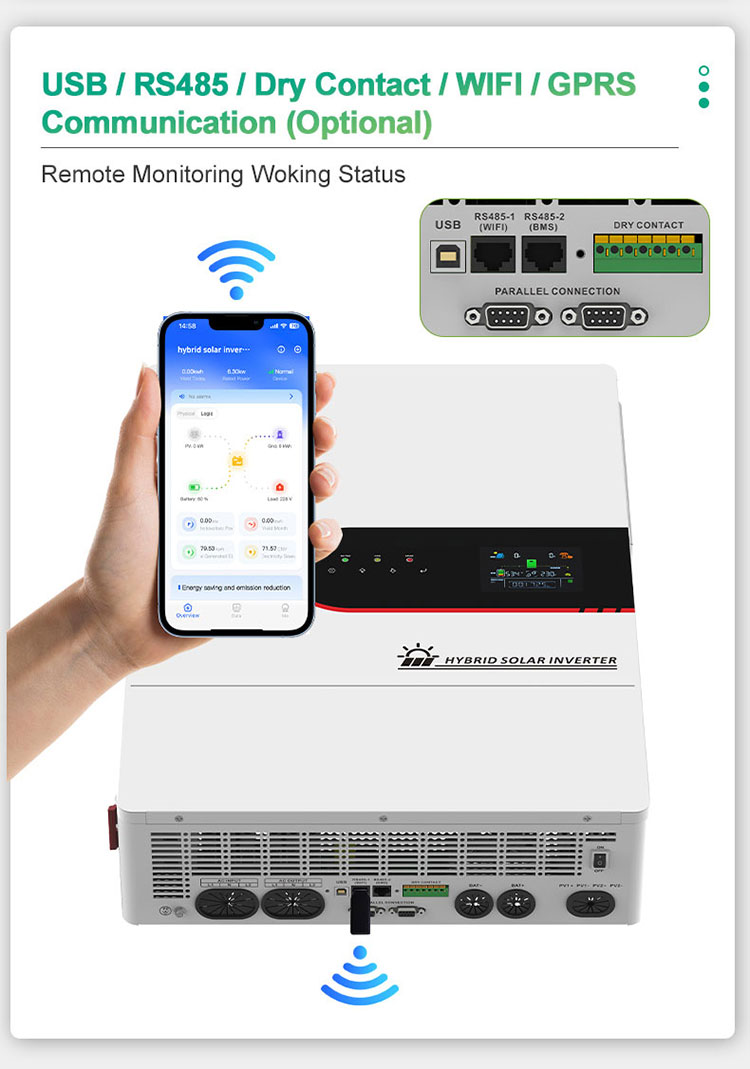

solar electricity inverter wifi

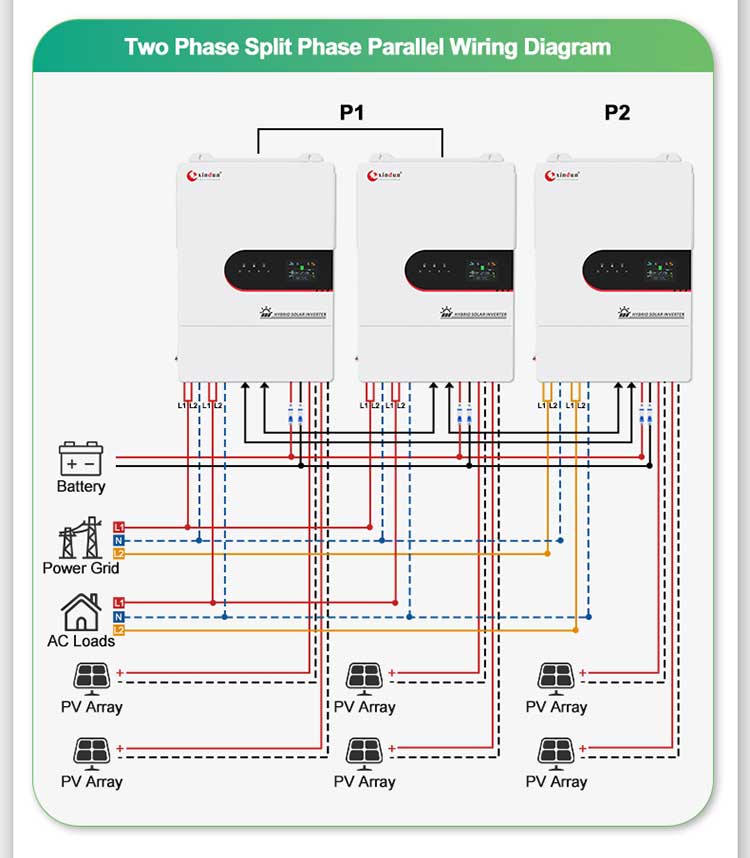

Solar Electricity Inverter Wiring Diagram

Wiring diagrams for single phase, split phase, three phase, and parallel operation of solar electricity inverters provide a clear understanding of the connections between solar panels, battery, mains electricity, and loads. This clear wiring layout not only facilitates installation and commissioning but also ensures efficient, safe, and stable energy conversion and power supply across different operating modes.

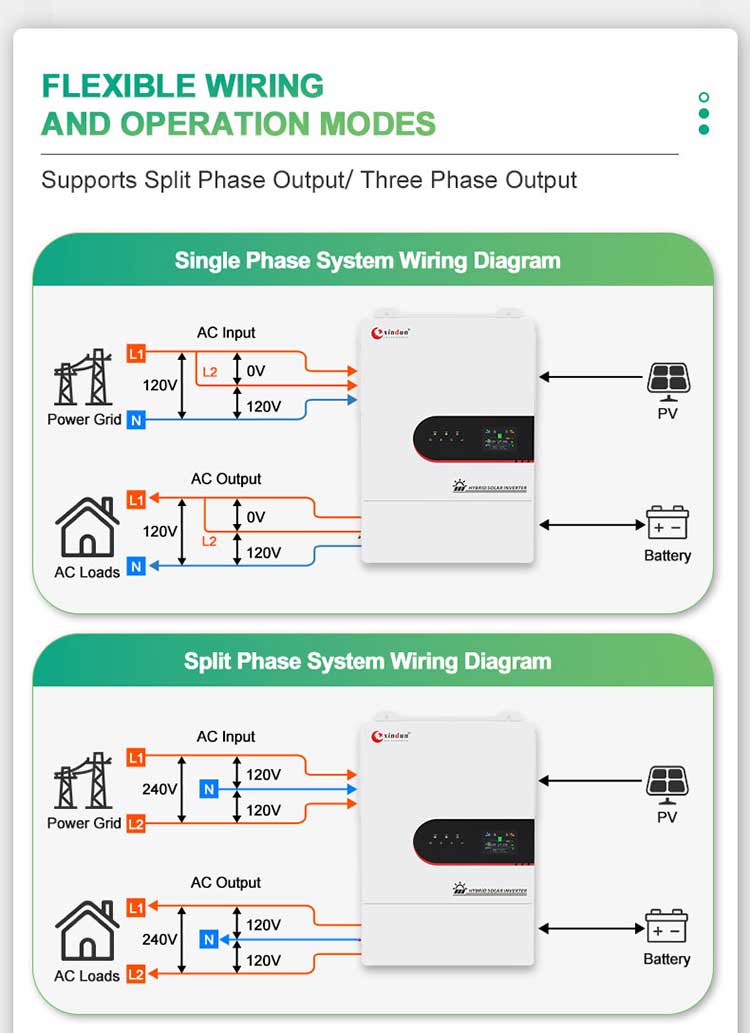

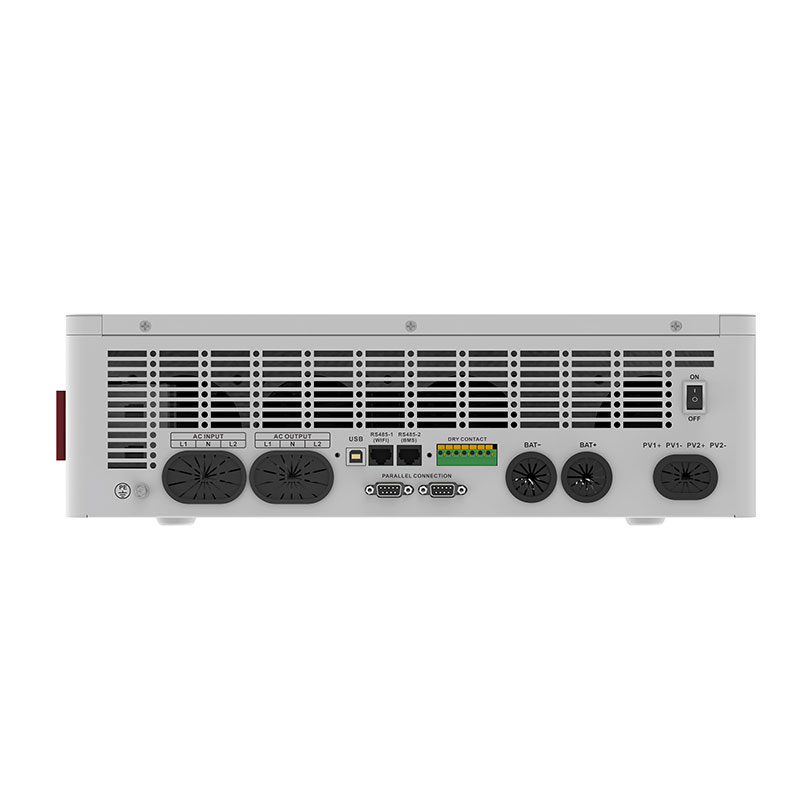

120 240 volt solar inverter

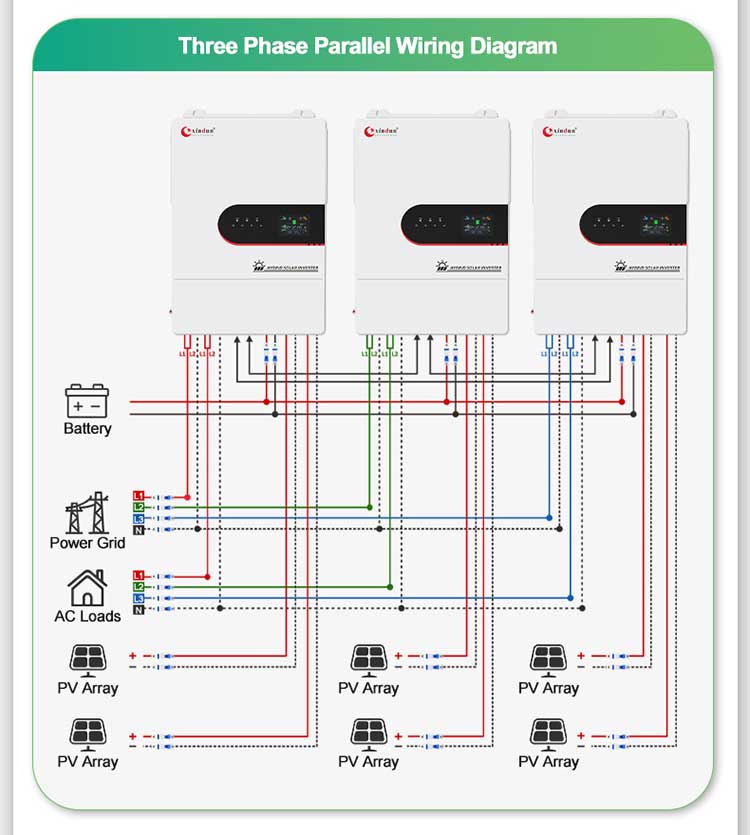

three phase solar inverter

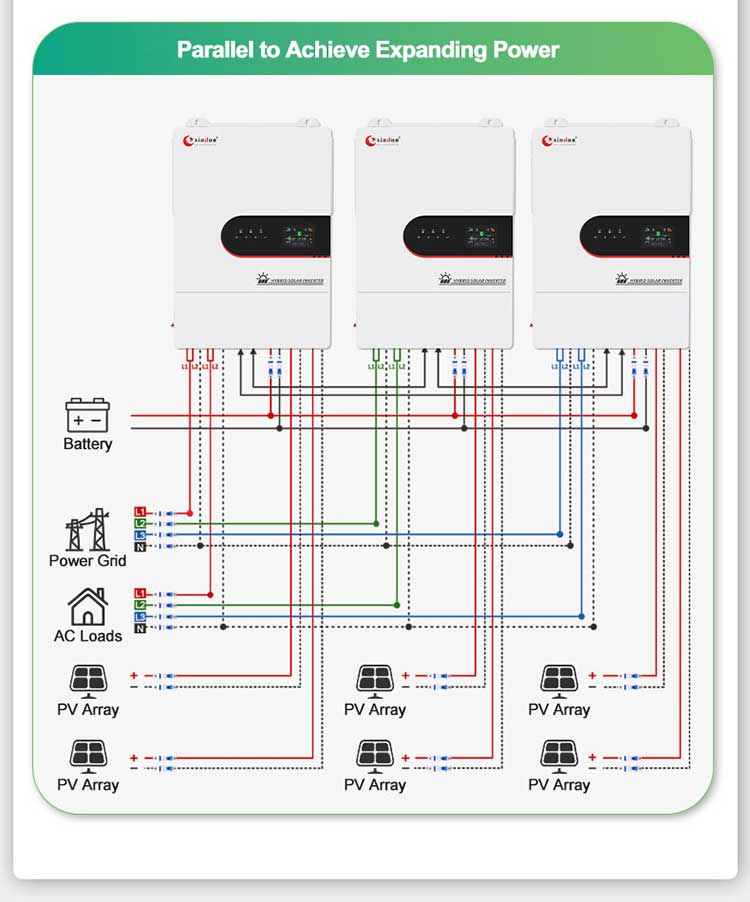

parallel solar electricity inverter

HU Series Solar Electricity Inverter Specification

Specification
Model： HU			10348	12348
PV Input	Max PV Input Power		5500W*2	6500W*2
	MPPT Tracking Voltage Range		125 Volt dc~425 Volt dc
	Rated Voltage		360 Volt dc
	Max PV Input Voltage voc (at the lowest temperature)		500 Volt dc
	Max PV Input Current		22A*2
	MPPT Tracking Channels (Input Routed )		2 Routed
Battery& Charging	Battery Type		Lead-acid Battery/Lithium Battery
			Custom Battery (Charging and discharging paramcters of different types of batteriescan be set through the operation board)
	Rated Battery Voltage		48 Volt dc
	Battery voltage Range		42~60 Volt dc (default)
	Max PV Charging Current		200A	220A
	Max AC Charging Current		120A	140A
	Max Charging Current		200A	220A
AC Input	Rated input voltage	Single phase input	100/105/110/120 Volt ac
		Split phase input	L1-N-L2（L1-L2：200/210/220/240 Volt ac；L1-N/L2-N：100/105/110/120 Volt ac）
	Range of mains input voltage	Single phase input	85/90~140 Volt ac
		Split phase input	L1-N-L2（L1-L2：170/180~280 Volt ac；L1-N/L2-N：85/90~140 Volt ac）
	Rated Input Frequency		50Hz/60Hz
AC Output	Rated output power		10KW	12KW
	Rated output voltage	Single phase input	100/105/110/120Vac
		Split phase input	L1-N-L2（L1-L2：200/210/220/240 Volt ac；L1-N/L2-N：100/105/110/120 Volt ac）
	Output Voltage Accuracy		±2%
	Rated Input Frequency		50Hz/60Hz
	Output Frequency Accuracy		±1%
	Output Wave		Pure Sine Wave
General Parameters
Maximum conversion efficiency (battery discharge)			92% (peak value)
MPPT Tracking Efficiency			≥99.9
Transfer Time			10mS (Typical value)
Display			LCD+LED
Cooling Method			Cooling fan in intelligent control
Communication			USB/RS485/dry contact/mobile app (WIFI monitoring or GPRS monitoring) (optional)
Protection Degree			IP20
Installation			Wall-Mounted
Protect	Overload protection		After triggering overload protection, the inverter will resume output after 3 minutes. If there are 5 consecutive overloads, the output will be turned off until the inverter restarts. (102%<load<110%) ± 10%: Error reported, output turned off after 5 minutes. (110%<load<125%) ± 10%: Error, turn off output after 10 seconds. Load>125% ± 10%: Error reported, output turned off after 5 seconds.
	Anti-islanding protection		≤2S
	overload power protection		Automatic Protection (battery mode),Circuit Breaker or Insurance (AC mode)
	Inverter output short circuit protection		Automatic Protection (battery mode),Circuit Breaker or Insurance (AC mode)
	Temperature protection		＞90 ℃(Turn off inverter and charging)
Environment	Operating temperature		-10℃~50℃
	Storage temperature		-15℃~60℃
	Noise		≤55dB
	Elevation		2000m（More than derating）
	Humidity		0%~95% ,No condensation
Dimension and Weight
Product Size(LWHmm)			630445136.5
Package Size(LWHmm)			725540225
N.W.(kg)			21	21.5
G.W.(kg)			22	22.5
Note: All specifications are subject to change without prior notice

Our solar electricity inverter parameters have undergone extensive testing and clearly display key data such as rated power, input voltage range, MPPT voltage, battery type, and efficiency, helping customers select the appropriate model. We also offer customization services for special requirements.

Solar Electricity Inverter Manufacturer

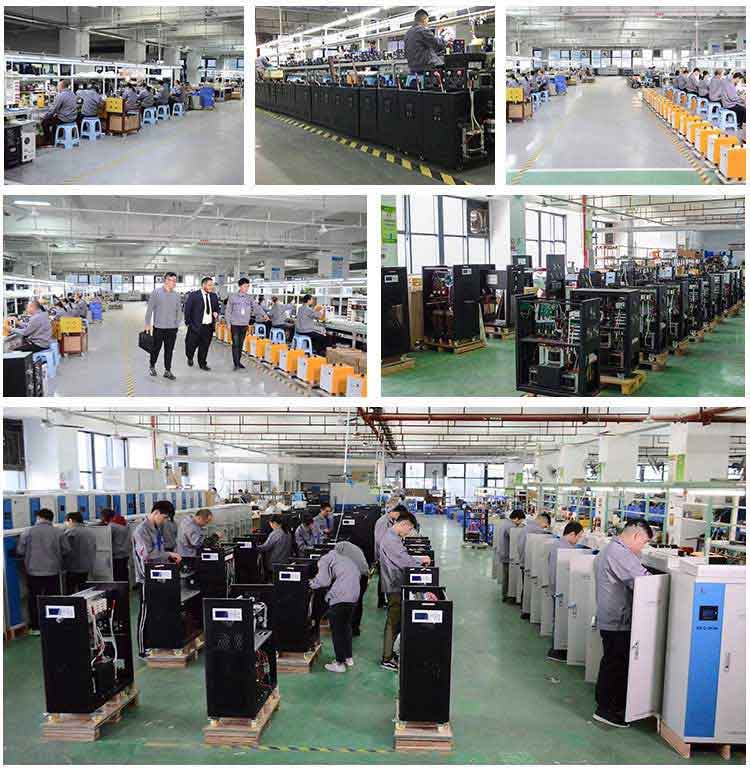

Xindun Power is a leading manufacturer of solar electricity inverter, specializing in R&D, production, sales, and service. With over 20 years of experience, a modern production plant exceeding 12,000 square meters, 12 semi-automatic production lines, and an annual output exceeding 100,000 units, we boast exceptional production and delivery capabilities. As a global supplier of solar electricity inverter, our products are sold to major solar market worldwide and are widely used in commercial, residential, agricultural, and industrial sectors. We offer a range of inverter, including single phase, split phase, and three phase inverter, tailored to the specific power requirements of each project to meet diverse power supply needs. Furthermore, we provide different voltages and configurations according to national power standards to ensure product compatibility with local grid environments.

We also have a professional R&D team that keeps abreast of solar market trends, continuously innovating and improving technology and product quality to develop high efficiency, intelligent solar electricity inverter that meet the demands of the global solar market. Partnering with Xindun Power will provide you with solar electricity inverter that offer superior value for money.
