ESS Best Portable Mini Solar Power Inverter with Battery for Home Price 300W-1000W

Input Voltage: 12VDC | Output Voltage: 110/120/220/230/240VAC±2% | Battery: 50Ah/100Ah | Solar Charging: PWM | Max PV Open Circuit Voltage: 50VDC

1 : Off grid inverter+solar charge controller+battery all in one.

2 : Multiple output modes

3 : 4pcs 3w bulbs and 4pcs 5m wireswith switch for free.

4 : Mini and portable design, use for home or camping.

5 : OEM/ODM is ok.

Produt Details Download

Best Portable Mini Solar Power Inverter with Battery for Home Price



About ESS Solar Power Inverter with Battery



Xindun ESS series best solar power inverter with battery for home, 300W-1000W 12V with 1*50Ah or 1*100Ah battery. A solar controller, gel battery, and dc to ac inverter all in one box. This portable mini inverter has a smaller size and is the best choice for outdoor travel power. There are multiple operating modes: AC priority, ECO mode, and Solar priority. It can meet the needs of customers in different scenarios. And built-in AVR stabilizer, continuous and stable pure sine wave output, providing higher quality AC power than the grid. Mini solar power inverter with battery price is affordable, but the quality is good, just because we are the source factory.

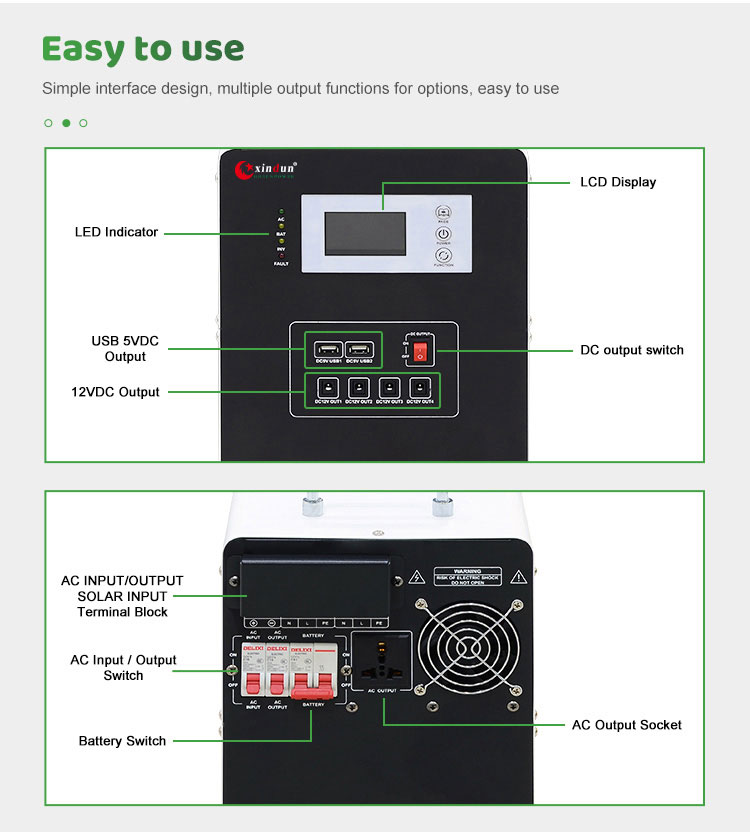

Best Solar Power Inverter with Battery Appearance



Buy 1pc mini portable inverter with battery, we'll give you 4pcs 3w bulbs and 4pcs 5m wireswith switch for free. We can screen print your logo on the inverter.

inverter with battery for home appearance




Solar Power Inverter with Battery Details



This portable mini solar inverter has multiple output modes: DC 12V, USB5V, and universal AC output socket. Can be used in energy storage solar systems, which can configure the number and capacity of batteries according to the actual needs of users, and is easy to replace and maintain batteries. Its built-in PWM solar controller is economical and efficient, which not only controls the cost of the system, but also improves the efficiency of the system.



power inverter for home - easy to usesolar inverter for home - easy maintenancemini inverter with battery - battery storage solutionportable inverter with battery - built-in pwm controllerbest solar inverter for home - applied to solar energy system






Solar Power Inverter with Battery Wiring Diagram



It is extremely clear from this wiring diagram how to use this mini solar inverter with battery for home effectively. Solar panels, grid electricity, or diesel generators that directly power DC/AC loads, or store the power supply in the battery as a backup power source! I can tell you for sure that this solar inverter with battery is an explosive product in 2023.



how to use solar power inverter for home






Solar Power Inverter with Battery Datasheet



Inverter Specification
Model : ESS 301P 501P 102P
Capacity Rated power 300W 500W 1000W
Peak power(20ms) 900VA 1500VA 3000VA
Input Stardard battery voltage 12VDC
AC input voltage range 73~138VAC(110VAC)/83~148VAC(120VAC)/145~275VAC(220VAC)/ 155~285VAC(230VAC)/165~295VAC(240VAC)
AC input frequency range 45Hz~55Hz(50Hz);55Hz~65Hz(60Hz)
Output Conversion efficiency ≥85%(Battery mode); >99%(AC mode)
AC Output voltage 110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2%/ 240VAC±2%(Battery mode);     110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10%(AC mode)
AC Output frequency 50/60Hz±1%(Battery mode); Tracking Automatically(AC mode)
AC Output waveform Pure Sine Wave
THD ≤3%(Linear load)
DC Output voltage  4*DC 12V; 2*USB(5V)
AC charger AC charging current 0~30A(Depends on model)
AC charging method Three-stage(constant current, constant voltage, floating charge)
solar charger  (Optional) Charging mode PWM
Max PV input voltage(Voc)
(At the lowest temperature)
50V
PV input voltage range 15V~44V
Charge & discharge current 20A 40A
Max PV input power 280W 560W
Inbuilt battery Capacity 1*50AH 1*100AH
Battery size(LxWxH)/pcs 229*138*210(228) 407*174*210(240)
Other Transfer time ≤4ms
Protection with over-voltage, low-voltage, overload, short circuit, high tempreature protections
Display LCD & LED
Cooling way Cooling fan in intelligent control
Communication(Optional) RS485/APP(WIFI monitoring or GPRS monitoring)(Models below 1000W (including 1000W) are not supported)
Working mode
(selectable)
d1 AC priority mode
d2 ECO mode
d3 Solar priority mode
Work
environment
Operating temperature -10℃~40℃
Storage temperature -15℃~60℃
Elevation 2000m(More than derating)
Humidity 0%~95% ,No condensation
Physical Dimention L x W x H(mm) 358*192*390 488*232*450
Net weight(kg)(without battery) 8 10 16
Packing Dimention  L x W x H(mm) 400*252*500 550*295*625
Gross weight(kg)(without battery) 11 13 21
Quantity/CTN 1pcs per wooden case
Note: All specifications are subject to charge without prior notice






Solar Power Inverter with Battery Application



Such a portable mini inverter with battery has a variety of uses, such as standby power sources for residences, companies, irrigation systems for agricultural use, outdoor RVs, and transportation, among others. In places with abundant solar energy resources, it is ideal for the development of solar energy systems, which not only relieve load on the power grid but also safeguard the environment, fully utilize renewable energy sources, and boost economic value.



best power inverter for homemini inverter with battery for home






Solar Power Inverter Package & Shipment



You can review the portable mini solar inverter's quality online, which is created by Xindun Power. Our mini solar inverters are professionally built before being safely shipped. Our inverters are supplied quickly, affordably, and securely to consumers. Unharmed, they arrive at their destinations. In order to ensure that portable inverters are installed and used properly by clients, we will also provide installation drawings and technical advice.



portable inverter with battery for home package & shipment






Chinese Solar Power Inverter Company



Since its establishment in 2007, Xindun Power Company has grown to include more than 200 employees. More than 30 senior engineers in R&D and design, more than 100 factory workers, more than 80 members of the sales and promotion team, and more than 30 members of the after-sale technical support team are included in this total. Our portable mini solar inverters, power inverter, and off grid solar system have been marketed and promoted in more than 100 countries and regions in order to assure a sufficient supply of inverters. More than 10 global warehouses have also been built.

Welcome to Xindun Power's inverter distributor program.



mini solar inverter with battery company






Solar Inverter Global Exhibition



We show our numerous portable inverter kinds at international solar & power exhibitions practically every year as a major power inverter manufacturer in China, bringing in a sizeable clientele to talk about inverter technology and ultimately sign a partnership agreement.



portable inverter for home - xindun from chinasolar power inverter for home price - xindun from china






Manufacturer of Solar Power Inverter with Battery



Our plant spans an area of more than 10,000 square meters. Up to 80% of our yearly revenue can be derived from the export of solar systems and the inverter with battery, which we can manufacture at a rate of 10,000 per month.

Inverters, solar panels, solar controllers, batteries, solar brackets, cables, and other parts of solar systems are just a few of the things we manufacture and create.

We are able to design unique portable inverter with battery that precisely fit the voltage, power, aesthetic preferences, and other particular technical needs of users, and all of our top-notch inverters are compatible with OEM/ODM. We could also offer free setup plans and illustration suggestions. Please consult!



mini inverter with battery price - xindun manufacturer china

portable inverter with battery - xindun supplier china
