HF Inverter Hybrid On Off Grid 12KW 10KW 8KW 6KW 5KW 48V

Input Voltage: 48VDC | Output Voltage: 220/230/240VAC±2% | Solar Charging: MPPT | PV Input Voltage: 120-500VDC | Mode: On Grid & Off Grid & Hybrid

1 : Inverter hybrid offers a compact design through its high-frequency construction, leading to significant power output while maintaining impressive efficiency.

2 : It includes a two-way energy storage mechanism, enabling efficient electric energy flow management, allowing both solar and grid sources to charge the battery efficiently.

3 : Features an exceptionally wide MPPT range, beginning at just 80VDC, to optimize solar energy harvesting.

4 : Users can select from multiple operational modes, including on-grid, off-grid, and hybrid, to best suit their energy needs.

5 : Comes equipped with an output priority function, allowing users to specify the priority source of power output.

6 : Also features a charging priority setting, providing flexibility in managing charging sources for the battery.

7 : Integrates a BMS communication capability for lithium batteries, ensuring compatibility and efficient management.

8 : Capable of operating without a battery, offering versatility for different user requirements and installation scenarios.

9 : Includes smart meter compatibility to prevent grid backflow, ensuring safe and efficient operation in on-grid scenarios.

Produt Details Download


About Inverter Hybrid On Off Grid


The inverter hybrid on off grid is a multi-functional inverter that can truly achieve seamless operation in off-grid mode, hybrid mode and on-grid mode. Off-grid mode: When the utility power is scarce, you can directly use solar energy or batteries to power electrical appliances. Hybrid mode: can realize solar energy, batteries, and utility power supply at the same time. On-grid mode: The electricity generated by solar energy can be transferred to the national utility grid to earn profits. When there is a utility power supply, if the utility power is suddenly cut off, it can automatically switch to the generator power supply to ensure safe and reliable operation of electrical appliances.

There are not many companies on the market that can truly implement the inverter hybrid on off grid function. Inverter hybrid will be a trend in the next 3-5 years because it can realize the integration and full utilization of energy. Traders and dealers are welcome to consult.

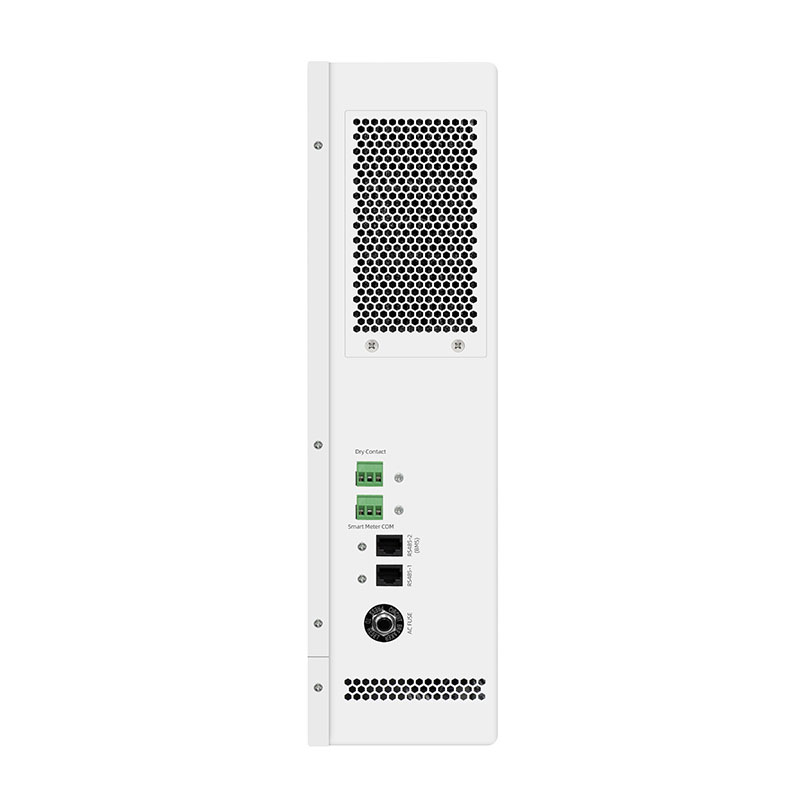

inverter hybrid on off grid 10kw on grid modeinverter hybrid on off grid 10kw off grid modeinverter hybrid on off grid 10kw hybrid modebatteryless inverter hybrid 48vinverter hybrid 48v prevent backflow protectioninverter hybrid 8kw and lifepo4 battery communication functioninverter hybrid 8kw rs485 dry contact signal and wifi 4g remote control


Inverter Hybrid On Off Grid Technical Parameters


OEM ODM is warmly welcome! Flexible MOQ


Model: HF 50248 60248 80248 10348 12348
PV Max PV Input Power 6000W 6000W 4500W*2 6000W*2 6000W*2
MPPT Tracking Voltage Range 120VDC-450VDC
Rated Voltage 360VDC
Max PV Input Voltage Voc (at the lowest temperature) 500VDC
Max PV Input Current 27A 18A*2 27A*2
MPPT Tracking Channels (Input Routed ) 1 Routed 2 Routed
Battery & Charging Battery Type Lead-acid Battery/Lithium Battery
Custom Battery (Charging and discharging parameters of different types of batteries can be set through the operation board)
Rated Battery Voltage 48VDC
Battery Voltage Range 42~60VDC(default)
Max PV Charging Current 120A 150A 180A 200A
Max AC Charging Current 80A 100A 120A 140A
Max Charging Current 120A 150A 180A 200A
On-Grid Operation
On-Grid Output (AC) Rated Output Power 5000W 6000W 8000W 10KW 12KW
Rated Output Voltage 220VAC/230VAC/240VAC
Grid Voltage Range 187VAC~264VAC
Rated Output Frequency 50Hz/60Hz
Frequency Range 47Hz~52Hz(50Hz),57Hz~62Hz(60Hz)
Rated Output Current 22.7A/21.7A/ 27.3A/26.1A/ 36.4A/34.8A/ 45.5A/43.5A/ 54.5A/52.2A/
20.8A 25A 33.3A 41.7A 50A
Power Factor >0.98(Rated Power)
Off-Grid Operation
AC Input Rated Input Voltage 220V/230V/240V
Mains input voltage range 165VAC~280VAC / 120VAC~280VAC(Can be set)
Rated Input Frequency 50Hz/60Hz
Input Frequency Range 45Hz~55Hz(50Hz),55Hz~65Hz(60Hz)
AC Output Rated Output Power 5000W 6000W 8000W 10KW 12KW
Rated Output Voltage 220V/230V/240V
Output Voltage Accuracy ±2%
Rated Input Frequency 50Hz/60Hz
Output Frequency Accuracy ±1%
Output Wave Pure Sine Wave
Hybrid Operation (Complementary Mode)
AC Input Rated Input Voltage 220V/230V/240V
Mains Input Voltage Range 187VAC~264VAC
Rated Input Frequency 50Hz/60Hz
Input Frequency Range 47Hz~52Hz(50Hz),57Hz~62Hz(60Hz)
AC Output Rated Output Power 5000W 6000W 8000W 10KW 12KW
Rated Voltage 220VAC/230VAC/240VAC
Rated Output Current 22.7A/21.7A/20.8A 27.3A/26.1A/25A 36.4A/34.8A/33.3A 45.5A/43.5A/41.7A 54.5A/52.2A/50A
Regular Parameters
Maximum Conversion Efficiency (Battery Discharge) 94% (peak value)
MPPT Tracking Efficiency ≥99.9
Transfer Time 10ms(Typical value)
Display LCD+LED
Cooling Method Cooling fan in intelligent control
Communication RS485/Dry Contact/Mobile APP(WIFI Monitoring or GPRS monitoring)(Optional)
Protection Degree IP20
Installation Wall-Mounted
Protection Battery low voltage alarm 44VDC(default value)
Battery low voltage protection 42VDC(default value)
Anti-islanding protection ≤2S
Overload power protection Automatic Protection (battery mode),Circuit Breaker or Insurance (AC mode)
Inverter output short circuit protection Automatic protection (battery mode),circuit breaker or insurance (AC mode)
Temperature protection >90℃(Shut down output)
Operating temperature -10℃~50℃
Storage temperature -15℃~60℃
Environment Noise ≤55dB
Elevation 2000m(More than derating)
Humidity 0%~95% (No condensation)
Dimension and Weight
Product Size(L*W*Hmm) 430*325*112.5 515*365*117 630*540*130
Package Size(L*W*Hmm) 510*380*178 600*430*192 715*605*205
