SESS-WD Off Grid Solar System 10Kw 15Kw 20Kw 25Kw 30Kw 40Kw

Xindun solar system off grid has undergone hundreds of practical applications, purchasing a whole set off grid solar system with batteries/inverter/solar panels, saves you procurement time and cost, installation and maintenance all duties to one company.

Type : Single/Split Phase Off Grid Solar System

Power : 8KW-40KW

Input Voltage : DC 96V/192V/240V/384V

Output Voltage : AC 110V/120V/220V/230V/240V

Brand : Xindun Power (Factory)

Original : China

Service : Customized Solutions, Cost Calculation, Installation Guidance, Maintenance, Product Training

Produt Details Download

10Kw 15Kw 20Kw 25Kw 30Kw 40Kw Off Grid Solar System Design

Solar power system is a popular trend nowadays, which is energy-saving, environmentally friendly, and low-carbon. While off grid solar systems are more like a necessity for daily life. Do you feel the same way, without electricity, fans and air conditioning are not working, despite you are being in high temperatures above 30 ° C. Without electricity, no cooking or boiling water, and no lighting at night. Without electricity, you can't watch the exciting football games on the TV. Without electricity, the freezer cannot store anything. Without electricity, there are many inconveniences in life and work. At this time, the off grid solar system can solve the above electricity consumption problems. The Xindun solar system has a variety of specifications to choose from: 10kw off grid solar system, 15kw off grid solar system, 20kw off grid solar system, 25kw off grid solar system, 30kw off grid solar system, 40kw off grid solar system, etc.

These are super efficient off grid solar solutions that can provide a large amount of clean energy for homes of all sizes, resorts, farms, complexes, factories, mines, engineering projects, and other places. Not only can they significantly reduce energy costs, but they can also maintain stable power supply in emergency situations. The off grid system is also equipped with a large capacity battery pack, allowing it to provide continuous and stable energy output during nighttime and adverse weather conditions. In addition, Xindun has 17 years of experience in solar systems off grid, and our products integrate the needs and suggestions of tens of thousands of customers, providing extremely high safety, ease of use, low maintenance costs, and long service life. It is an economical, practical, and reliable energy solution.

So, for households and companies who want to install solar systems, this off grid solar system is a very good choice. It can not only help users reduce the burden of electricity bills, but also reduce dependence on traditional energy and protect the environment.



10Kw 15Kw 20Kw 25Kw 30Kw 40Kw Solar System Off Grid






Off Grid Solar System Equipment List



Model SESS-WD 8KW SESS-WD 10KW SESS-WD 15KW SESS-WD 20KW SESS3-WD 30KW SESS-WD 40KW
Solar Panel Poly 330W
 (12 Pieces)
Mono 390W
(12 Pieces)
Mono 390W
(24 Pieces)
Mono 390W
(32 Pieces)
Poly 330W
(54 Pieces)
Mono 390W
(64 Pieces)
Combiner Box

500VDC 3in1out
(1 Piece)

500VDC 3in1out
(1 Piece)

500VDC 3in1out
(1 Piece)

500VDC 2in1out
(2 Pieces)

3in1out
(2 Pieces)

1000VDC 2in1out
(2 Pieces)

MPPT Controller

96VDC 50A
(1 Piece)
MPPT built-in solar inverter

96VDC 50A
(1 Piece)
MPPT built-in solar inverter

192VDC 50A
(1 Piece)
MPPT built-in solar inverter

192VDC 100A
(1 Piece)

240VDC 100A
(1 Piece)

384VDC 100A
(1 Piece)

Off Grid Inverter 96VDC 8KW 96VDC 10KW 192VDC 15KW 192VDC 20KW 240VDC 30KW 384VDC 40KW
12V200AH lead acid Battery 8 Pieces 8 Pieces 16 Pieces 32 Pieces 40 Pieces 64 Pieces
PV Cable

4mm² ×100m
(Solar Panel to PV combiner)

10mm² ×100m
(PV combiner to Solar inverter)

4mm² ×100m
(Solar Panel to PV combiner)

10mm² ×100m
(PV combiner to Solar inverter)

4mm² ×200m
(Solar Panel to PV combiner)

10mm² ×100m
(PV combiner to Solar inverter)

4mm²×200m
(Solar Panel to PV combiner)

10mm² ×100m
(PV combiner to MPPT)

4mm²×200m
(Solar Panel to PV combiner)

10mm²×200m
(PV combiner to MPPT)

4mm²×200m
(Solar Panel to PV combiner)

10mm²×200m
(PV combiner to MPPT)

Battery Cable 16mm² (11 paris) 25mm² (10 paris) 25mm² 10m/pcs (21 paris) 25mm² 20m/pcs (41 pairs) 25mm² 10m/pcs (41 pairs) 25mm² 10m/pcs (62 pairs)
M4 plug (male and female) 9 pairs 1 in 1 out 9 pairs 1 in 1 out 21 pairs 1 in 1 out 28 pairs 1 in 1 out 48 pairs 1 in 1 out 60 pairs 1 in 1 out
Mounting System 1 set 1 sets 1 sets 1 sets 1 sets 1 sets






Off Grid Solar System Components



Solar Inverter
1. Off grid low frequency inverter, pure sine wave
2. Can built-in solar charge controller according to your need
3. Compatible with lithium and gel batteries
4. Solar/AC/generator charger in one
5. WIFI/ GPRS remote monitoring optional

10kw off grid solar system with solar inverter

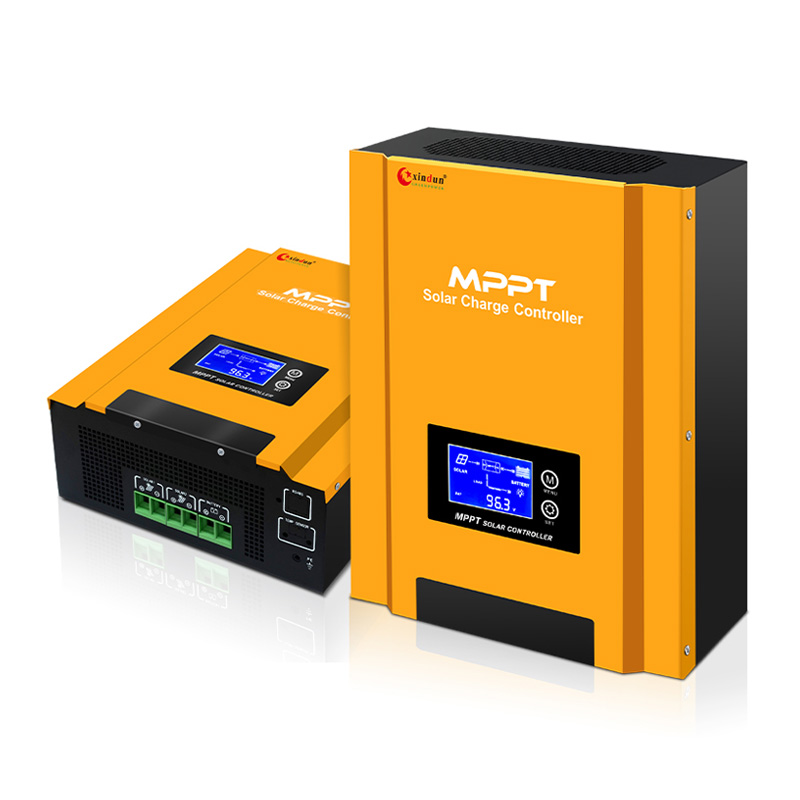

10kw off grid solar system with solar controller

Solar Controller
1. MPPT Solar charge controller with higher generation efficiency
2. Can connect to lithium battery or gel battery
3. Can work in parallel
4. RS485/APP communication port optional

Lithium Battery
1. High safety level of lithium lifepo4 battery cell
2. Long life cycle time >6000cycles
3. Advanced BMS protection functionality
4. Installation: Floor/Wall mounted

Gel Battery
1. High thermal stability and resistance to overcharging and discharging
2. The deep discharge cycle life is increased 50%
3. Gel battery have better safety

10kw off grid solar system with batteries

10kw off grid solar system with solar panels

Solar Panels
1. Mono or poly solar panels optional
2. Front Glass: 3.2mm, Anti Reflection Coaring, High Transmission, Low Iron, Tempered Glass
3. Frame: Anodized Aluminium Alloy
4. Warranty: 25-years performance warranty
Solar Mounting System
1. Aluminum Alloy 6005-T5
2. Fasteners Material SUS304
3. Easy Installation, the installation angle can be adjusted according to the demand
4. Can Be used in different forms,Tin Roofs,Flat Roofs
5. 10 Years Warranty, Over 25 Years Service Life

10kw off grid solar system with solar mounting system

10kw off grid solar system with pv combiner box

Solar Accessories
1. Complete accessories including pv cable, battery cable, mc4 connector, combiner box
2. Additional installation kit (if required)
3. Perfectly match for solar system






Off Grid Solar System Wiring Diagram



15kw off grid solar system wiring diagram



Contact me for customized solar system off grid solutions and wiring method.






Off Grid Solar System Installation & Application



15kw off grid solar system installation



20kw off grid solar system application



We also have lots of off grid solar system application photos and videos, if you are interested, feel free to contact me.






Off Grid Solar System Supplier



Are you tired of high energy costs and looking for a sustainable and reliable energy source? Our off grid solar systems are the perfect solution! We offer a range of high-quality solar panels, dc-ac inverters, batteries, and solar mounting systems to meet your unique needs, power range from 300w to 40kw single phase, 30kw to 100kw three phase. 10 program designers and cost accountants, 200 production technicians, 10 after-sales maintenance centers in various countries in Asia and Africa. We have 17 years of experience in the field of off grid solar systems, and the number of customers has accumulated to 100,000. Contact us today to learn more about our off grid solar solutions and receive a customized quote. Xindun Power, Your trusted off grid solar system supplier in China.



▼ Solar Inverter Workshop



25kw off grid solar system with inverter supplier



▼ Solar Batteries Workshop



30kw off grid solar system with battery supplier



▼ Solar Panels Workshop



30kw off grid solar system with solar panels supplier



▼ Package and Delivery



20kw solar system off grid delivery



▼ Third-Party Certification Report



40kw off grid solar system certificate



▼ Some of Xindun's Solar Distrobutors



40kw off grid solar system supplier - xindun solar
