HP PRO Direct Solar Hybrid Inverter Without Battery Price 1000W-8000W

Input Voltage: 24/48VDC | Output Voltage: 220/230/240VAC±2% | Solar Charging: MPPT | Max PV Open Circuit Voltage: 500VDC

1 : Full sine wave high frequency inverter conversion efficiency ≥94%.

2 : Off grid inverter, direct solar hybrid inverter can work without battery.

3 : Can communicate with lithium batteries.

4 : One inverter with multiple charging function such as solar/battery/AC/generator charging.

5 : RS485/APP(Wifi/GPRS) communication port.

Produt Details Download

Direct Solar Hybrid Inverter Without Battery Price - Xindun China

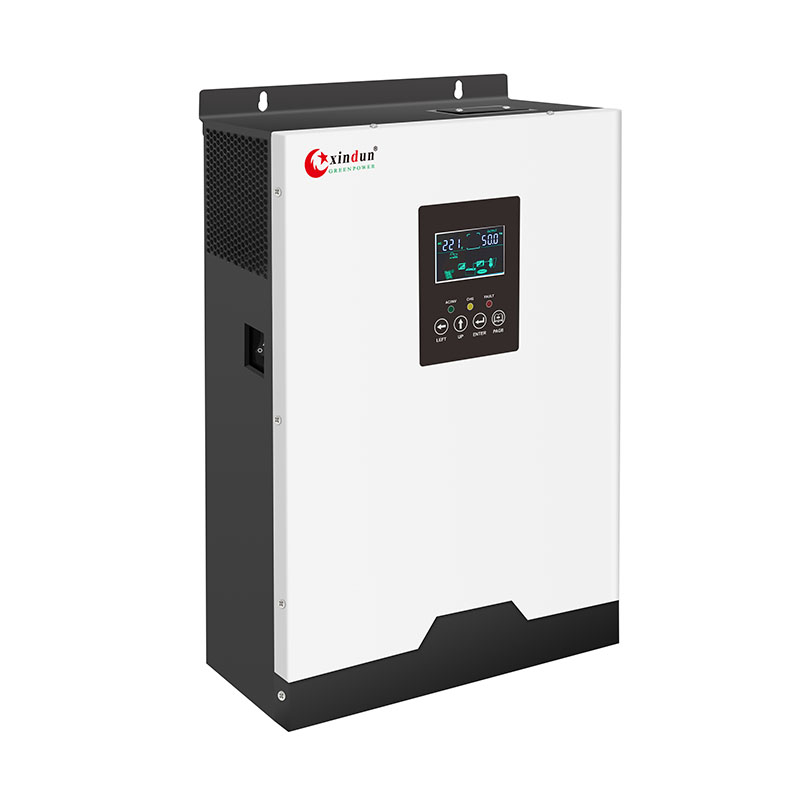

About HP PRO Solar Hybrid Inverter



Xindun HP PRO 1Kw-7Kw high-frequency pure sine wave output, this solar hybrid inverter can operate either with or without battery. Direct solar inverter without battery can be flexibly configured according to customer needs, saving system costs. However, solar hybrid inverter systems with battery can store power and charge the battery in the following ways: solar charging, AC charging, and generator charging.
Solar hybrid inverter is a new version newly developed and designed recently. It solves various common inverter technical problems, such as high back temperature during inverter operation, unsatisfactory power generation of the solar system, high/low grid voltage, high/low grid frequency, missing grid, and displaying corresponding fault codes.
More hybrid solar inverter features are as follows:



solar inverter without battery price is good

Our high-frequency solar hybrid inverter is a new version newly developed and designed recently. It solves various common solar hybrid inverter technical problems, such as high back temperature during inverter operation, unsatisfactory power generation of the solar system, high/low grid voltage, high/low grid frequency, missing grid, and displaying corresponding fault codes.

solar hybrid inverter without battery - high efficiencysolar hybrid inverter without battery - multiple charging modesolar hybrid inverter without battery - wifi monitormppt hybrid solar inverter without batteryhybrid solar inverter without battery - wide pv input voltagehybrid solar inverter with lithium battery






Solar Hybrid Inverter without Battery Datasheet



OEM/ODM is acceptable



Inverter Specification
Model: HP pro 32224 50248
Rated Power 3200W 5000W
Peak Power(20ms) 9600VA 15KVA
Battery Voltage 24VDC 48VDC
Product Size(L*W*Hmm) 420x290x110 460x304x110
Package Size(L*W*Hmm) 486x370x198 526x384x198
N.W(Kg) 8.5 10
G.W(Kg) 9.5 11
Installation Method Wall-Mounted
PV Charging Mode MPPT
Rated PV input voltage 360VDC
MPPT tracking voltage range 120V-450V
Max PV Input Voltage Voc
(At the lowest temperature)
500V
PV Array Maximum Power 4000W 6000W
MPPT tracking channels (input channels) 1
Input DC Input Voltage Range 21VDC-30VDC 42VDC-60VDC
Rated AC input voltage 220VAC  / 230VAC  / 240VAC
AC Input Voltage Range 170VAC~280VAC (UPS mode)/ 120VAC~280VAC(INV mode)
AC Input Frequency Range 45Hz~55Hz(50Hz),55Hz~65Hz(60Hz)
Output Output efficiency(Battery/PV Mode) 94%(Peak value)
Output Voltage(Battery/PV Mode) 220VAC±2%  / 230VAC±2%  / 240VAC±2%
Output Frequency(Battery/PV Mode) 50Hz±0.5 or 60Hz±0.5
Output Wave(Battery/PV Mode) Pure Sine Wave
Efficiency(AC Mode) >99%
Output Voltage(AC Mode) Follow input
Output Frequency(AC Mode) Follow input
Output waveform distortion
Battery/PV Mode)
≤3%(Linear load)
No load loss(Battery Mode) ≤1% rated power
No load loss(AC Mode) ≤0.5% rated power(charger does not work in AC mode)
Battery  Battery
 Type
VRLA Battery Charge Voltage :13.8V; Float Voltage:13.7V(Single battery voltage)
Customize battery Charging and discharging parameters of different types of batteries can be customized according to user requirements
(charging and discharging parameters of different types of batteries can be set through the operation panel)
Max AC Charging Current 60A 60A
Max PV Charging Current 100A 100A
Maximum charging current (mains + PV) 100A 100A
Charging method Three-stage (constant current, constant voltage, floating charge)
Protection Battery low voltage alarm Battery undervoltage protection value+0.5V(Single battery voltage)
Battery low voltage protection Factory default: 10.5V(Single battery voltage)
Battery over voltage alarm Constant charge voltage+0.8V(Single battery voltage)
Battery over voltage protection Factory default: 17V(Single battery voltage)
Battery over voltage recovery voltage Battery overvoltage protection value-1V(Single battery voltage)
Overload power protection Automatic protection (battery mode), circuit breaker or insurance (AC mode)
Inverter output short circuit protection Automatic protection (battery mode), circuit breaker or insurance (AC mode)
Temperature protection >90°C(Shut down output)
Working Mode Mains priority/Solar priority/Battery priority(Can be set)
Transfer Time ≤10ms
Display LCD+LED
Thermal method Cooling fan in intelligent control
Communication(Optional) RS485/APP(WIFI monitoring or GPRS monitoring)
Environment Operating temperature -10℃~40℃
Storage temperature -15℃~60℃
Noise ≤55dB
Elevation 2000m(More than derating)
Humidity 0%~95% (No condensation)
Note: All specifications are subject to charge without prior notice.






Solar Hybrid Inverter Connection Diagram



Our hybrid solar inverters have built-in mppt controllers, and users only need to follow the operating procedures to connect batteries, solar panels, AC input (or generator), and AC output loads. Please strictly follow the user manual for connection, or contact Xindun for more detailed connection diagrams for the complete solar system.



connection of direct solar inverter without battery

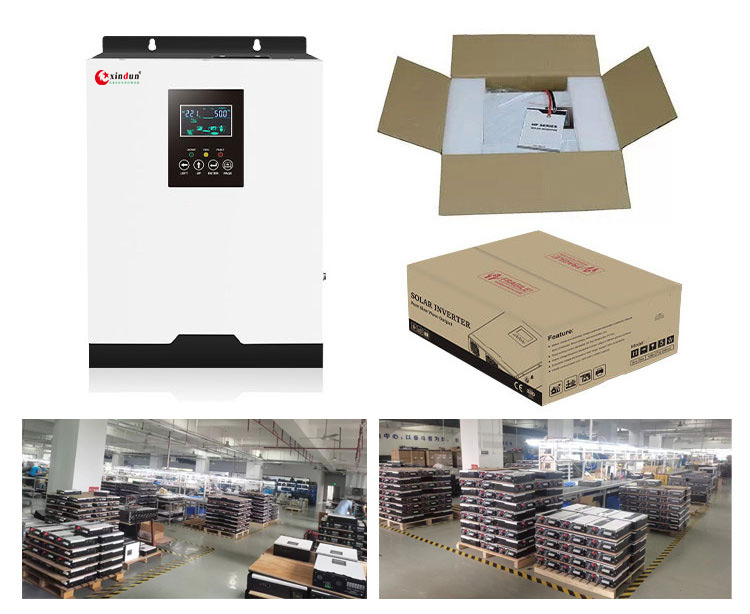

Solar Hybrid Inverter Without Battery Packaging and Shipping



Customers can view the production process, packaging, and shipment of the Xindun solar hybrid inverter online. Our high-quality inverters are professionally manufactured and delivered in a safe manner. In order to distribute our inverters to customers safely and undamaged, we have chosen a fast, affordable, and safe transportation method because we have long-term cooperative relationships with global logistics companies. To ensure that customers correctly install and operate the solar hybrid inverter, we will also provide assembly drawings and technical advice.



packaging of hybrid solar inverter without battery






Chinese Solar Hybrid Inverter Company



Since the company's founding in 2006, Guangdong Xindun Power Technology Co., Ltd. has grown to a staff of more than 280 individuals, including over 30 senior engineers in R&D and design, over 100 factory producers, over 80 sales and marketing staff, and over 30 after-sales technical service staff. Over 10 overseas warehouses have been established to ensure a sufficient supply of solar hybrid inverters, and our inverters and solar power systems have been sold and promoted in more than 100 countries and regions.



company of hybrid inverter without battery






Solar Hybrid Inverter Factory



Xindun is a Chinese factory with a good reputation in the field of solar energy. Our factory covers an area of over 10000 square meters. In addition, we have the ability to produce 10000 inverters per month, accounting for 80% of our annual revenue.

All of our solar hybrid inverters accept OEM/ODM, and we can create a specific inverter to meet customer requirements in terms of voltage, power, visual design, and other unique technical specifications. In addition, we can also provide free installation plans and drawing designs. Large inventory, more styles for dealers to choose from. No middlemen make a difference, so the solar inverter without battery price is highly competitive for dealers. If you are interested, please contact Xindun immediately. For 17 years, we have been a source of supply for global importers and brands.



factory of hybrid inverter without battery






Solar Hybrid Inverter Productive Process



Productive process of solar hybrid inverter without battery






Solar Hybrid Inverter Certification



certificate of hybrid solar inverter without battery






Global Solar Exhibition



Welcome to Xindun Power's global solar inverter dealer program.



xindun hybrid solar inverter without battery






Customer Trust



review of direct solar inverter without batteryreview of direct solar inverter without battery






Inverter FAQ



1.Can we use only hybrid inverter without battery?

Yes, you can utilize solar panels and hybrid inverter directly without battery backup, when you have accessibility to the power grid or solar energy.



2.Can solar hybrid inverter work without power grid?

It is an independent solar power system that can function on its own. It offers power backup and storage for electricity. When you choose a solar hybrid inverter with battery, this can work!



3.What is the difference between hybrid solar inverter and normal inverter?

Hybrid solar inverters can built-in solar controllers and batteries, while normal inverters generally do not built-in solar controllers and batteries; hybrid solar inverters can be on/off-grid inverters, and normal inverters are off-grid inverters; Or a hybrid solar inverter can be just a grid-tie inverter!
