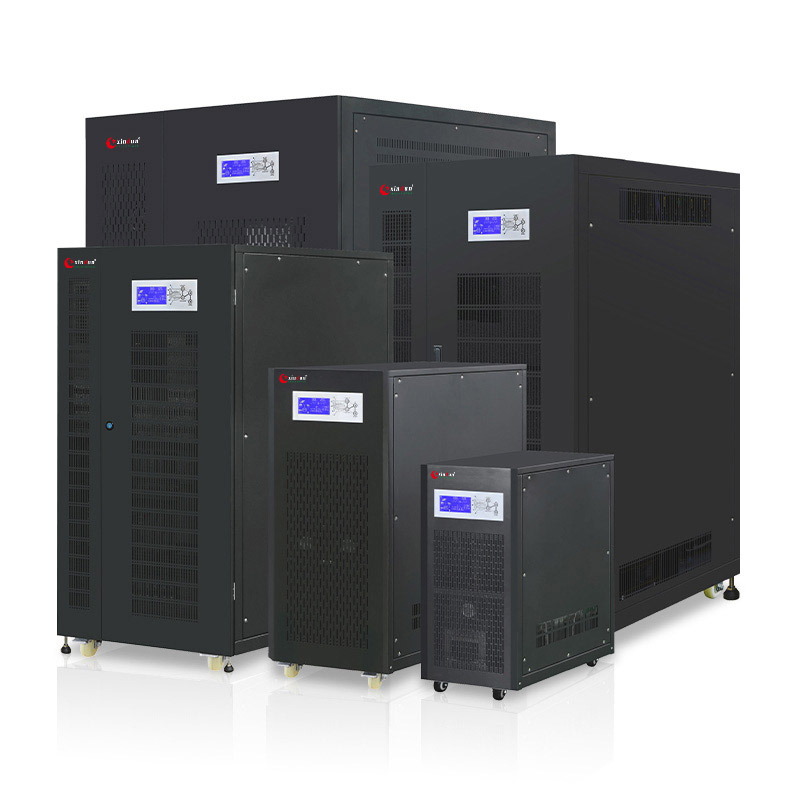

WD 12V 24V 48V Power Inverter 1000W 1500W 2000W 3000W 4000W 5000W 6000W

Input Voltage: 12/24/48/96VDC | Output Voltage: 110/120/220/230/240VAC±2% | Efficiency: ≥85% | Type: Off grid Pure sine wave Low frequency inverter

1 : Low frequency single phase inverter 700w-40kw pure sine wave output.

2 : Compatible with lithium batteries, gel batteries, and agm batteries.

3 : Power factor 100%.

4 : Inverter can be used as UPS backup power supply.

5 : OEM production, can silk screen print your logo.

Produt Details Download

12v 24v 48v power inverter 1000w 1500w 2000w 3000w 4000w 5000w 6000w - xindun china



About WD Series Power Inverter



This page describes a tower type low frequency power inverter 700W-6000W, turn 12V, 12V, 48V to 110V, 120V, 220V, 230V, 240V. Although its volume is relatively large, the power inverter has a high conversion efficiency (up to 85% or more under full load), as well as a strong nonlinear load driving ability. It can also detect and monitor input voltage, current, and output voltage and current, thereby achieving unattended maintenance functions. Xindun WD series power inverters have many applications, such as: home, industrial, agricultural, commercial, transportation, emergency power, and so on! If you need a high-power inverter of 8kw-40kw, please click the link to view.






Power Inverter Appearance & Size



WD series power inverters have different appearances and sizes according to different power and voltage. Please check the figure below to find the model you need. Large inventory, OEM production. Can silk screen print your logo.



▼ 12V 24V 48V Power Inverter 700W 1000W 1500W



12v power inverter 1000w



▼ 24V 48V Power Inverter 2000W 3000W 3500W



24v power inverter 3000w



▼ 48V 96V Power Inverter 4000W 5000W 6000W 7000W



48v power inverter 5000w






Power Inverter Clearly Describe



The following are the product selling points of wd series power inverters, which can become the core content of dealer sales growth.
Now I briefly introduce the peak power of the inverter. Peak power, also known as maximum power, refers to the maximum power that the power inverter can output in an extremely short time (typically within 20 ms). Peak power is typically 2-3 times the rated power. Some electrical appliances or tools that use electric motors, such as refrigerators, washing machines, and electric drills, require a large amount of current to propel them at the moment of startup. Only when the peak output power reaches the peak power of the appliance can the appliance be started normally. Once successfully started, only a small current is required to maintain its normal operation. As long as the rated output power reaches the power required for stable operation of the appliance, the appliance can operate normally.



power inverter 2000w - 3 times peak powerpower inverter 1500w - high efficiency12v 24v 48v power inverter - wide power rangepower inverter 4000w - suitable for any kinds of batteriespower inverter 6000w - wifi remote mornitoringpower inverter 1500w - support generator input






Power Inverter Datasheet



Power Inverter Specification
Model WD 70112/24
(701)
10212/24
(102)
15224/48
(152)
20224/48
(202)
30224/48
(302)
35248/96
(352)
40248/96
(402)
50248/96
(502)
60248/96
(602)
70248/96/192
(702)
Rated Power 700W 1000W 1500W 2000W 3000W 3500W 4000W 5000W 6000W 7000W
Peak Power(20ms) 2100VA 3000VA 4500VA 6000VA 9000VA 10500VA 12000VA 15000VA 18000VA 21000VA
Start Motor 0.5HP 1HP 1.5HP 2HP 3HP 3HP 3HP 4HP 4HP 5HP
Battery Voltage 12/24VDC 12/24VDC 24/48VDC 24/48VDC 24/48VDC 48/96VDC 48/96VDC 48/96VDC 48/96VDC 48/96/192VDC
Max AC charging current 0A~20A(Depending on the model,The maximum charging power is 1/4 of the rated power)
Size(L*W*Hmm) 340x165x283 410x200x350 491x260x490
Packing Size(L*W*Hmm) 405x230x340(1pc) / 475x415x350(2pc) 475x265x410 545x315x550
N.W.(kg) 9.5(1pc) 10.5(1pc) 11.5(1pc) 17 20.5 21.5 29 30 31.5 36
G.W.(kg) 11(1pc) 12(1pc) 13(1pc) 19 22.5 23.5 32 33 34.5 39
Installation Method Tower
Input DC Input Voltage Range 10.5-15VDC(Single battery voltage)
AC Input Voltage Range 73VAC~138VAC(110VAC)/ 83VAC~148VAC(120VAC) / 145VAC~275VAC(220VAC) /  155VAC~285VAC(230VAC) /  165VAC~295VAC( 240VAC)
AC Input Frequency Range 45Hz~55Hz(50Hz)/ 55Hz~65Hz(60Hz)
AC charging method Three-stage (constant current, constant voltage, floating charge)
Output Efficiency(Battery Mode) ≥85%
Output Voltage(Battery Mode) 110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2%
Output Frequency(Battery Mode) 50Hz±0.5 or 60Hz±0.5
Output Wave(Battery Mode) Pure Sine Wave
Efficiency(AC Mode) >99%
Output Voltage(AC Mode) 110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10%
Output Frequency(AC Mode) Follow input
Output waveform distortion
(Battery Mode)
≤3%(Linear load)
No load loss(Battery Mode) ≤1% rated power
No load loss(AC Mode)  ≤2% rated power( charger does not work in AC mode)
No load loss
(Energy saving Mode)
≤10W
Battery Type
(selectable)
VRLA Battery Charge Voltage :14.2V; Float Voltage:13.8V(Single battery voltage)
Customize battery Charging and discharging parameters of different types of batteries can be customized according to user requirements
 (charging and discharging parameters of different types of batteries can be set through the operation panel)
Protection Battery undervoltage alarm Factory default: 11V(Single battery voltage)
Battery undervoltage protection Factory default: 10.5V(Single battery voltage)
Battery overvoltage alarm Factory default: 15V(Single battery voltage)
Battery overvoltage protection Factory default: 17V(Single battery voltage)
Battery overvoltage recovery voltage Factory default: 14.5V(Single battery voltage)
Overload power protection Automatic protection (battery mode), circuit breaker or insurance (AC mode)
Inverter output short circuit protection Automatic protection (battery mode), circuit breaker or insurance (AC mode)
Temperature protection >90°C(Shut down output)
Alarm A Normal working condition, buzzer has no alarm sound
B Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection
C When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal
Working Mode Battery First/AC First/Saving Energy Mode
Transfer Time ≤4ms
Display LCD
Thermal method Cooling fan in intelligent control
Communication(Optional) RS485/APP(WIFI monitoring or GPRS monitoring)
Environment Operating temperature -10℃~40℃
Storage temperature -15℃~60℃
Noise ≤55dB
Elevation 2000m(More than derating)
Humidity 0%~95% ,No condensation
Note: All specifications are subject to charge without prior notice






Power Inverter Connection



Steps for some precautions in power inverter wiring:
First, it is necessary to pay attention to whether the operating voltage of the power inverter is 12v, 24v, or 48v, and select the corresponding battery voltage;
Second, attention should be paid to the positive and negative electrodes of the battery, and they should not be connected incorrectly;
Third, note that the load connected cannot exceed the rated power of the low frequency power inverter itself.



12v power inverter connection






Power Inverter Case



The low frequency power inverter of Xindun Power has been put into use in various fields at home and abroad, including solar power generation in homes, power generation in large and medium-sized commercial places, emergency power for transportation, and uninterrupted and stable power consumption in factories.



power inverter 5000w installation & application






Power Inverter Company In China



Guangdong Xindun Power Technology Co., Ltd. has expanded to employ more than 200 people since the company was founded in 2007. This number includes more than 30 senior engineers in R&D and design, more than 100 factory producers, more than 80 sales and promotion staff, and more than 30 after-sales technical support staff. To ensure a sufficient supply of low frequency power inverter, more than 10 global warehouses have been constructed, and our best power inverter, solar inverter, off grid solar system have been marketed and promoted in more than 100 countries and regions.

Welcome to the greatest power inverter distributor program from Xindun Power.



24V Power Inverter Company In China






Power Inverter Factory



More than 10,000 square meters make up our factory. We can build 10,000 inverters per month, and we can export solar systems and finest power inverter for up to 80% of our annual revenue.

We manufacture and create a variety of products, including inverters, solar panels, solar controllers, batteries, solar panel holders, cables, and other solar system components.

All of our top-notch power inverters are compatible with OEM/ODM, and we are able to design special low frequency power inverter that precisely match the voltage, power, esthetic preferences, and other specialized technical requirements of commercial consumers. Also, we could provide free setup blueprints and drawing ideas. Kindly consult!



48V Power Inverter Factory






Power Inverter Production Process



12V Power Inverter Production Process






Inverter Qualification



Xindun Power is a famous Chinese manufacturer and supplier in the solar energy industry. We also have various patent certificates and quality assurance system certifications, including CE, IEC, TUV, TLC, CCC, and ISO 9001:2015 for our power inverters, solar inverters, and solar systems.



Inverter Qualification






Exhibit Our Inverters at International Solar & Power Events



As a leading power inverter manufacturer in China, we exhibit our various types of power inverter at international solar & power events almost every year, attracting a sizable clientele to discuss inverter technology and ultimately sign a collaboration agreement.



Solar & Power Events - Xindun China






Customer Feedback



24v power inverter feedback from customers48v power inverter feedback from customers
