WD High Power Inverter Price For Solar Panels 10000 Watt - 40000 Watt
Input Voltage: 48/96/192/240/384VDC | Output Voltage: 110/120/220/230/240VAC±2% | Efficiency: ≥85% | Type: Off grid Pure sine wave Single phase Inverter
1 : High power, low frequency, single phase inverter pure sine wave output.
2 : Can be used as a high power uninterruptible power supply.
3 : Can be used as split phase inverter and dual output 110V&220V or 120V&240V.
4 : RS485/WIFI/GPRS communication function optional.
5 : Can communicate with lithium batteries.
About WD High Power Inverter

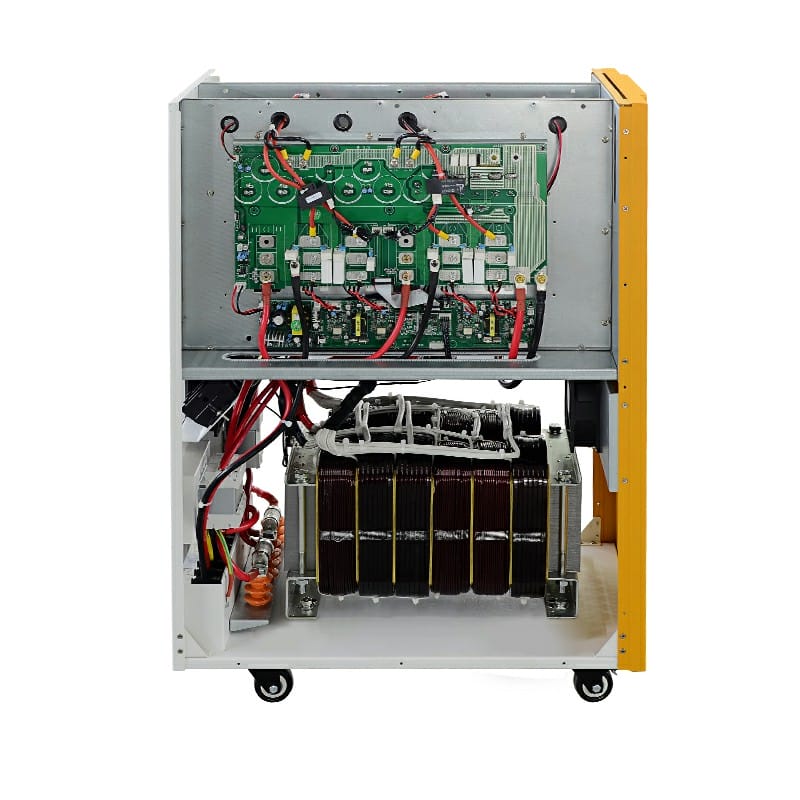

A tower-style 10000 Watt - 40000 Watt high power inverter is described on this page. The high power inverter has a sizable volume but a high conversion efficiency (up to 85% or more at full load) and a potent nonlinear load driving capability. Additionally, it has the ability to detect and keep an eye on output voltage and current as well as input voltage and current, performing unattended maintenance tasks. There are several uses for high power inverter, including in the solar panels system, home, business, industry, agriculture, transportation, emergency power, and more! If you need 700 Watt - 7000 Watt power inverters, please click this link to view. Factory wholesale power inverter prices are highly competitive, and distributors have large profit margins.
WD High Power Inverter Model
▼ Power Inverter 8000 Watt - 12000 Watt 48/96/192 Volt
▼ Power Inverter 15000 Watt - 25000 Watt 192/240 Volt
▼ Power Inverter 30000 Watt - 40000 Watt 240/384 Volt
High Power Inverter Feature
The high power inverter of Xindun Power with dedicated micro-processing chip design, equipment operation speed is faster and more stable, triple peak power, and pure sine wave output.
The high power inverter chip has the ability to withstand capacitive and inductive load shocks. For general inductive loads, such as televisions, refrigerators, air conditioners, washing machines, and high-power water pumps, when starting, their instantaneous power may be 3 to 5 times their rated power. At this time, the inverter chip will withstand significant transient surges. For such systems, sufficient margin is reserved for the rated capacity of the high power inverter chip of Xindun Power to ensure reliable load starting, which can achieve multiple full load starts without damaging the device.
In addition, the Xindun power inverter also has multiple functions, including but not limited to: compatibility with multiple battery types, communication software remote monitoring, connect to the generator, etc.
High Power Inverter Datasheet
Power Inverter Specification | |||||||||||
Model WD | 80248/96/192 (802) |
10348/96/192 (103) |
12396/192 (123) |
153192 (153) |
203192 (203) |
253240 (253) |
303240 (303) |
403384 (403) |
|||
Rated Power | 8KW | 10KW | 12KW | 15KW | 20KW | 25KW | 30KW | 40KW | |||
Peak Power(20ms) | 24KVA | 30KVA | 36KVA | 45KVA | 60KVA | 75KVA | 90KVA | 120KVA | |||
Start Motor | 5HP | 7HP | 7HP | 10HP | 12HP | 15HP | 15HP | 20HP | |||
Battery Voltage | 48/96/192VDC | 48/96V/192VDC | 96/192VDC | 192VDC | 192VDC | 240VDC | 240VDC | 384VDC | |||
Max AC charging current | 0A~40A(Depending on the model,The maximum charging power is 1/4 of the rated power) |
0A~20A(Depending on the model,The maximum charging power is 1/4 of the rated power) | |||||||||
Size(L*W*Hmm) | 540x350x695 | 593x370x820 | 721x400x1002 | ||||||||
Packing Size(L*W*Hmm) | 600*410*810 | 656*420*937 | 775x465x1120 | ||||||||
N.W.(kg) | 66 | 70 | 77 | 110 | 116 | 123 | 167 | 192 | |||
G.W.(kg) | 77 | 81 | 88 | 124 | 130 | 137 | 190 | 215 | |||
Installation Method | Tower | ||||||||||
Input | DC Input Voltage Range | 10.5-15VDC(Single battery voltage) | |||||||||
AC Input Voltage Range | 92VAC~128VAC(110VAC) / 102VAC~138VAC(120VAC) / 185VAC~255VAC(220VAC) / 195VAC~265VAC(230VAC) / 205VAC~275VAC( 240VAC) | ||||||||||
AC Input Frequency Range | 45Hz~55Hz(50Hz)/ 55Hz~65Hz(60Hz) | ||||||||||
AC charging method | Three-stage (constant current, constant voltage, floating charge) | ||||||||||
Output | Efficiency(Battery Mode) | ≥85% | |||||||||
Output Voltage(Battery Mode) | 110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2% | ||||||||||
Output Frequency(Battery Mode) | 50Hz±0.5 or 60Hz±0.5 | ||||||||||
Output Wave(Battery Mode) | Pure Sine Wave | ||||||||||
Efficiency(AC Mode) | >99% | ||||||||||
Output Voltage(AC Mode) | Follow input | ||||||||||
Output Frequency(AC Mode) | Follow input | ||||||||||
Output waveform distortion (Battery Mode) |
≤3%(Linear load) | ||||||||||
No load loss(Battery Mode) | ≤1% rated power | ||||||||||
No load loss(AC Mode) | ≤2% rated power( charger does not work in AC mode) | ||||||||||
No load loss (Energy saving Mode) |
≤10W | ||||||||||
Battery Type (selectable) |
VRLA Battery | Charge Voltage :14.2V; Float Voltage:13.8V(Single battery voltage) | |||||||||
Customize battery | Charging and discharging parameters of different types of batteries can be customized according to user requirements (charging and discharging parameters of different types of batteries can be set through the operation panel) |
||||||||||
Protection | Battery undervoltage alarm | Factory default: 11V(Single battery voltage) | |||||||||
Battery undervoltage protection | Factory default: 10.5V(Single battery voltage) | ||||||||||
Battery overvoltage alarm | Factory default: 15V(Single battery voltage) | ||||||||||
Battery overvoltage protection | Factory default: 17V(Single battery voltage) | ||||||||||
Battery overvoltage recovery voltage | Factory default: 14.5V(Single battery voltage) | ||||||||||
Overload power protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | ||||||||||
Inverter output short circuit protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | ||||||||||
Temperature protection | >90°C(Shut down output) | ||||||||||
Alarm | A | Normal working condition, buzzer has no alarm sound | |||||||||
B | Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection | ||||||||||
C | When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal | ||||||||||
Working Mode | Battery First/AC First/Saving Energy Mode | ||||||||||
Transfer Time | ≤4ms | ||||||||||
Display | LCD | ||||||||||
Thermal method | Cooling fan in intelligent control | ||||||||||
Communication(Optional) | RS485/APP(WIFI monitoring or GPRS monitoring) | ||||||||||
Environment | Operating temperature | -10℃~40℃ | |||||||||
Storage temperature | -15℃~60℃ | ||||||||||
Noise | ≤55dB | ||||||||||
Elevation | 2000m(More than derating) | ||||||||||
Humidity | 0%~95% ,No condensation | ||||||||||
Note: All specifications are subject to charge without prior notice |
Precautions for Using High Power Inverter
When utilizing a high power inverter, the issue of appropriately connecting the positive and negative electrodes is the most fundamental. The positive and negative electrodes will also be clearly defined on the power inverter, so this is a very simple affair. Also, the area where the power inverter is located needs to be kept dry, aired, and notably out of the way of explosives and precipitation. Also, avoid covering the power inverter with anything else when using it. Avoid having any other metal objects on your hands when connecting it to the batteries because short circuits can easily happen and harm your body if you do.
Do an excellent job taking these safeguards despite the fact that they are all small difficulties. Possibly your power inverter will outperform others' inverter in terms of service life and efficiency.
Power Inverter for Solar Panels System
Where there is a lack of power, a power inverter is needed. Xindun's power inverters are widely used in off grid solar panels system worldwide, providing self use and easy installation.
High Power Inverter Company
Guangdong Xindun Power Technology Co., Ltd. was established in 2007, and our team has grown to over 200 people, including over 30 senior engineers in R&D and design, over 100 factory producers, over 100 sales and promotion staffs, and over 30 after-sales technical service staffs. Our power inverters and solar panels system have been sold and promoted in more than 80 countries and regions, and more than 10 warehouses have been set up overseas to ensure an adequate supply of inverters.
Welcome to become an overseas power inverter dealer of Xindun Power.
High Power Inverters Manufacturer & Supplier
Xindun Power is a professional Chinese manufacturer and supplier in the solar & power industry. Our factory has 10000+sqm ², we produce and design solar & power products including inverters, solar panels, solar controllers, batteries, Solar bracket, cables, and so on.
Our high power inverters all support OEM/ODM, and we can customize special power inverter according to customer requirements, including voltage, power, appearance design, and other special functions. And we can provide drawing design and free configuration plans, welcome to consult !
Power Inverters Production And Shipment
Customers can conduct online quality inspections of Xindun Power's power inverter while they are being produced. Following meticulous production methods, our high power inverters are securely packaged and transported. In order to send our high quality inverters to clients securely and undamaged, we opt for a quick, inexpensive, and safe delivery option. To guarantee that customers correctly install and operate power inverters, we will also provide installation drawings and technical advice.
Power Inverters Technical Certification
Moreover, our power inverters, solar inverters and solar systems have obtained multiple patent certificates and quality assurance system certifications, such as CE, IEC, TUV, TLC, CCC, and ISO9001: 2015. Our inverter production can reach 10000 units per month, and the annual export of high power inverters and solar systems can reach 80% of the total turnover.
Solar Power Inverter Global Exhibition
As a high-quality power inverter manufacturer in China, our inverters are displayed at international solar energy & power exhibitions almost every year, attracting numerous customers to discuss inverter technology together, and ultimately reaching a cooperation agreement.
Power Inverter Customer Feedback
