DP Off Grid Hybrid Solar Inverter Charger With MPPT Charge Controller 12V 24V 48V 1Kw-7Kw
Input Voltage: 12/24/48VDC | Output Voltage: 110/120/220/230/240VAC±2% | Solar Charging: MPPT/PWM | Max PV Open Circuit Voltage: 50/100/150VDC
1 : Low frequency pure sine wave, off grid solar inverter charger
2 : AC/solar priority for charging, adjustable solar and AC charging current via multi-function display
3 : Matches a variety of battery types, such as lithium battery, LiFePO4, gel battery
4 : Optional external display with a length of 3 meters and one-button switch inverter
5 : Hybrid solar inverter with pwm/mppt charge controller
hybrid solar inverter with mppt charge controller
About DP Off Grid Solar Inverter Charger
Xindun DP is a cost-effective intelligent off grid hybrid solar inverter charger with PWM or MPPT charge controller. In addition to the built-in LCD display, users can also choose an external display with a length of 3 meters. The display can set the battery charging parameters, AC/solar charger priority, charging current, and view the inverter fault code. When the battery voltage is low, it will automatically switch to the AC power grid to provide continuous power for the load. Matches a variety of battery types, such as lithium ion battery, lithium iron phosphate battery (LiFePO4), Gel battery, sealed valve regulated lead acid battery, It is suitable for personal use. If you need one machine with the functions of inverter and charger, DP inverter is very suitable for you, inverter charger 12v/24v/48v convert to 110v/120v/220v/230v/240v, 1Kw to 7Kw.
hybrid solar inverter with mppt charge controller
Off Grid Solar Inverter Charger Technical Parameter
Xindun accepts customization of special parameters and functional requirements. Product specifications are subject to change without further notice.
| Solar Inverter Charger Specification | |||||||||
| Model: DP | 10212/24/48 | 15212/24/48 | 20212/24/48 | 30224/48 | 40224/48 | 50248 | 60248 | 70248 | |
| Rated Power | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | 7000W | |
| Peak Power（20ms) | 3000VA | 4500VA | 6000VA | 9000VA | 12000VA | 15000VA | 18000VA | 21000VA | |
| Start Motor | 1HP | 1.5HP | 2HP | 3HP | 3HP | 4HP | 4HP | 5HP | |
| Battery Voltage | 12/24/48VDC | 24/48VDC | 24/48VDC | 48VDC | |||||
| Size(L*W*Hmm) | 555*297*184 | 615*315*209 | |||||||
| Packing Size(L*W*Hmm) | 620*345*255 | 680*365*280 | |||||||
| N.W.(kg) | 12 | 13 | 15.5 | 18 | 23 | 24.5 | 26 | 27.5 | |
| G.W.(kg)（Carton Packing） | 14 | 15 | 17.5 | 20 | 25.5 | 27 | 28.5 | 30 | |
| Installation Method | Wall-Mounted | ||||||||
| Parameter | |||||||||
| Input | DC Input Voltage Range | 10.5-15VDC（Single battery voltage） | |||||||
| AC Input Voltage Range | 85VAC~138VAC（110VAC）/ 95VAC~148VAC（120VAC / 170VAC~275VAC（220VAC / 180VAC~285VAC（230VAC） / 190VAC~295VAC（240VAC） |
||||||||
| AC Input Frequency Range | 45Hz~55Hz(50Hz) / 55Hz~65Hz(60Hz) | ||||||||
| Max AC charging current | 0~30A(Depending on the model） | ||||||||
| AC charging method | Three-stage (constant current, constant voltage, floating charge) | ||||||||
| Output | Efficiency(Battery Mode) | ≥85% | |||||||
| Output Voltage(Battery Mode) | 110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2% | ||||||||
| Output Frequency(Battery Mode) | 50/60Hz±1% | ||||||||
| Output Wave(Battery Mode) | Pure Sine Wave | ||||||||
| Efficiency(AC Mode) | >99% | ||||||||
| Output Voltage(AC Mode) | 110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10% | ||||||||
| Output Frequency(AC Mode) | Follow input | ||||||||
| Output waveform distortion (Battery Mode) |
≤3%（Linear load） | ||||||||
| No load loss(Battery Mode) | ≤0.8% rated power | ||||||||
| No load loss(AC Mode) | ≤2% rated power（ charger does not work in AC mode） | ||||||||
| No load loss(Energy saving Mode) | ≤10W | ||||||||
| Battery Type | VRLA Battery | Charge Voltage :14V; Float Voltage:13.8V( 12V system; 24V system x2 ; 48V system x4) | |||||||
| Customize battery | Charging and discharging parameters of different types of batteries can be customized according to user requirements (charging and discharging parameters of different types of batteries can be set through the operation panel) |
||||||||
| Protection | Battery undervoltage alarm | Factory default: 11V(12V system; 24V system x2; 48V system x4) | |||||||
| Battery undervoltage protection | Factory default: 10.5V(12V system; 24V system x2; 48V system x4) | ||||||||
| Battery overvoltage alarm | Factory default: 15V(12V system; 24V system x2; 48V system x4) | ||||||||
| Battery overvoltage protection | Factory default: 17V(12V system; 24V system x2; 48V system x4) | ||||||||
| Battery overvoltage recovery voltage | Factory default: 14.5V(12V system; 24V system x2; 48V system x4) | ||||||||
| Overload power protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | ||||||||
| Inverter output short circuit protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | ||||||||
| Temperature protection | >90°C（Shut down output） | ||||||||
| Alarm | A | Normal working condition, buzzer has no alarm sound | |||||||
| B | Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection | ||||||||
| C | When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal | ||||||||
| Inside Solar controller (Optional) |
Charging Mode | PWM or MPPT | |||||||
| Charging current | 10A~60A（PWM or MPPT） | 10A~60A(PWM ) / 10A~100A(MPPT) | |||||||
| PV Input Voltage Range | PWM: 15V-44V(12V system); 30V-44V(24V system); 60V-88V(48V system) MPPT: 15V-120V(12V system); 30V-120V(24V system); 60V-120V(48V system) |
||||||||
| Max PV Input Voltage(Voc) (At the lowest temperature) |
PWM: 50V(12V/24V system); 100V(48V system) / MPPT: 150V(12V/24V/48V system) | ||||||||
| PV Array Maximum Power | 12V system: 140W(10A)/280W(20A)/420W(30A)/560W(40A)/700W(50A)/840W(60A)/1120W(80A)/1400W(100A）; 24V system: 280W(10A)/560W(20A)/840W(30A)/1120W(40A)/1400W(50A)/1680W(60A)/2240W(80A)/2800W(100A）; 48V system: 560W(10A)/1120W(20A)/1680W(30A)/2240W(40A)/2800W(50A)/3360W(60A)/4480W(80A)/5600W(100A） |
||||||||
| Standby loss | ≤3W | ||||||||
| Maximum conversion efficiency | >95% | ||||||||
| Working Mode | Battery First/AC First/Saving Energy Mode | ||||||||
| Transfer Time | ≤4ms | ||||||||
| Display | LCD（External LCD Display(Optional)） | ||||||||
| Thermal method | Cooling fan in intelligent control | ||||||||
| Communication(Optional) | RS485/APP（WIFI monitoring or GPRS monitoring） | ||||||||
| Environment | Operating temperature | -10℃~40℃ | |||||||
| Storage temperature | -15℃~60℃ | ||||||||
| Noise | ≤55dB | ||||||||
| Elevation | 2000m（More than derating） | ||||||||
| Humidity | 0%~95% ,No condensation | ||||||||
| Note: All specifications are subject to charge without prior notice | |||||||||
solar inverter charger 12v parameter

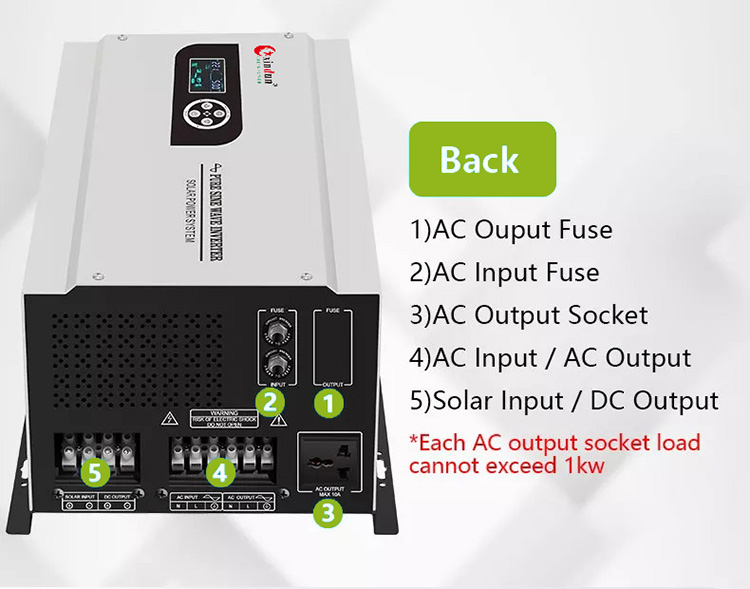

How to Use Off Grid Solar Inverter Charger
Turn off the inverter charger first, and connect the solar positive and negative poles, the battery positive and negative poles, the AC input neutral wire, live wire, ground wire, the AC load and the DC load one by one. Please note that the maximum withstand power of each AC output socket cannot exceed 1000w. And if this is a inverter charger 12v, the battery voltage also needs 12v. If this is a 24V inverter charger, the battery voltage also needs 24V. If this is a 48v inverter charger, the battery voltage also needs 48v.
how to use 24v solar inverter charger
Off Grid Solar Inverter Charger Installation
Xindun DP solar inverter charger has two installation modes, lying down installation and wall mounted installation. The lying down installation is suitable for RV and camping, and the wall mounted installation is suitable for home use, hybrid solar inverter with pwm/mppt charge controller which saves a lot of space during installation.
48v solar inverter charger installation
Off Grid Solar Inverter Charger Project Case
This solar inverter charger is particularly popular in American and African countries. With battery pack, it can be used for mobile power supply, with battery pack and solar panels, it can be used for off grid solar power system. Don't doubt the strength of Xindun and the quality of inverter charger. Our customers are all over the world. Xindun inverter charger has been widely used in poverty alleviation, new energy, schools, commerce, mining, factories, agriculture, communications, home and other industries.
12v solar inverter charger project case
Shipment Safety Inverter Packaging
Packing list: inverter, battery cable, manual, warranty card, anti-collision foam. We can provide customers with customized packaging and trademark printing services. The inverter charger packaging firmness has been verified for tens thousands of times and is suitable for long-distance transportation by sea, air and land.
solar inverter charger 24v package
About Off Grid Solar Inverter Charger Manufacturer
PRODUCTS: Specializes in manufacturing and selling hybrid solar inverters, power inverters, inverter charger, off grid solar system
MANUFACTURER: 10,000+ square meters. 200+ workers. 10+ online shopping store.
EXPERIENCE: 17 years manufacturer. Products are sold to more than 100 countries.
OVERSEAS STATION: Nigeria, Senegal, Kenya, Pakistan, Philippines, Indonesia
CERTIFICATE: Software, Design and Project patent, CE, TUV, ROHS
XINDUN MANUFACTORY
Located in Foshan, Guangdong, China, the manufactory covers an area of 10,000 square meters and has 8 production lines, Strong R&D support for OEM & ODM orders. Inverter 2 years warranty. "0" Risk, Any products in warranty period, any problem happened, you can return products. 7-15 days delivery time (hot sale solar inverter charger from stock directly).
solar inverter charger 48v manufactory
faq of off grid solar inverter charger
Frequently Asked Question Of Inverters
Q1: What is off grid solar inverter charger price?
Xindun is now carrying out solar inverter promotion activities. Welcome to contact us to obtain the wholesale price and customized price of inverter charger.
Q2: Do I need a hybrid solar inverter with mppt charge controller?
In the past two years, more and more customers choose hybrid solar inverter with mppt charge controller because they are more convenient to use. If you are using the off grid solar power system, the hybrid solar inverter is more suitable.
Q3: Is your solar inverter charger 12v 24v 48v compatible?
No. Please define the inverter voltage you need before purchasing.
Q4: How to solve the inverter charger technical problem?
24 hours after-service consultancy just for you and to make your problem to solve easily.
