HP PLUS Best All In One Solar Charge Controller Inverter 3000W 5000W

Input Voltage: 48VDC | Output Voltage: 208/220/230/240VAC±2% | Solar Charging: MPPT | Max PV Open Circuit Voltage: 450VDC

1 : Support inverter parallel operation up to 9 units (available for 5000W 48V)

2 : Compatible various battery types such as lithium battery, gel battery, lead-acid battery

3 : Support inverter provide the power to the load without batteries (without parallel operation)

4 : Combine solar charging, AC power grid charging, generator charging, battery charging all in one inverter

5 : Support USB, RS232, WIFI, GPRS monitoring function (optional)

solar charge inverter - best all in one solar charge controller inverter

best all in one solar charge controller inverter hp plus

About HP PLUS All In One Solar Charge Inverter

HP PLUS is called "best all in one solar charge controller inverter". It integrates solar charger, AC power grid charger, generator charger and battery charger all in one inverter, and is compatible with lithium batteries and lead-acid batteries. The solar charge inverter is high-frequency off-grid pure sine wave, and the rated power voltage is 3000W and 5000W 48V. The all in one inverter has built-in MPPT solar charge controller, which can support the maximum number of 9 parallel operation to 45 kilowatts.

solar charge controller inverter parallel operation

solar charge controller inverter usb rs232 wifi mornitoring

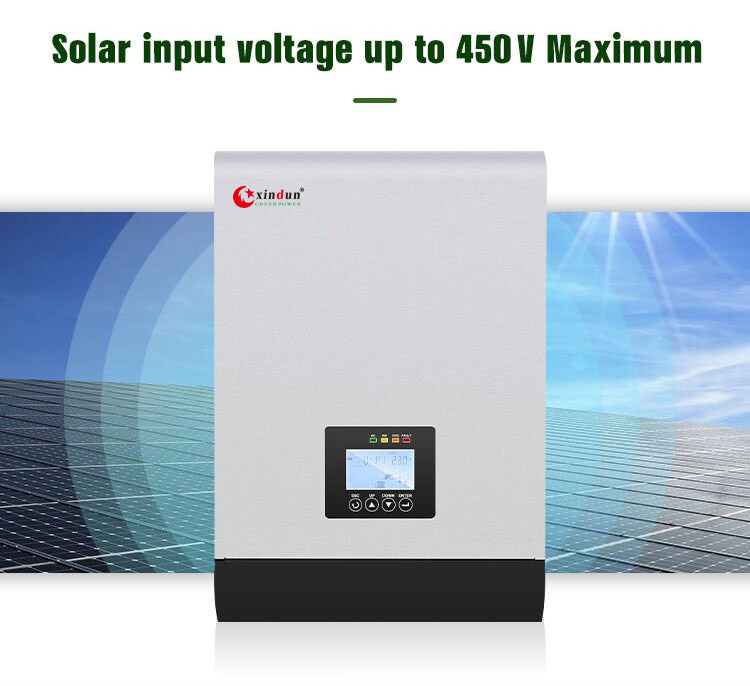

solar charge controller inverter max pv open circuit voltage 450v

mppt solar charge controller inverter

solar charge controller inverter without battery

best all in one solar charge controller inverter selling points

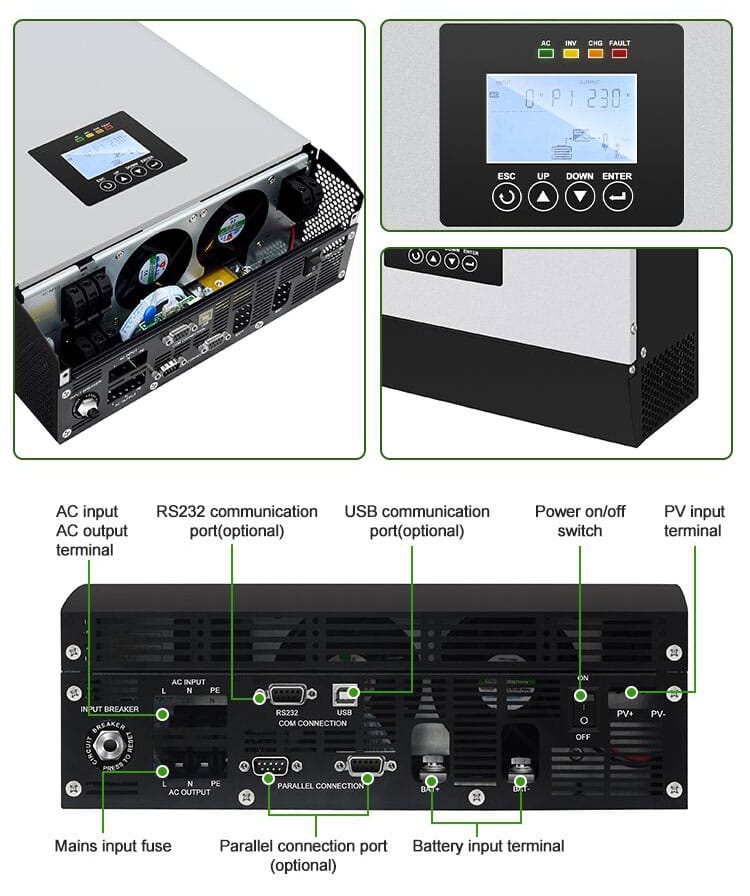

All In One Solar Charge Inverter Exterior and Interior

HP PLUS Wall-mounted solar charge controller inverter meet the aesthetic requirements of the absolute majority of people around the world. You can see from the following pictures that our workmanship is very fine, from the outside to the inside. We can print your trademark on the inverter case cover, or spray the color you like according to your needs.

solar controller inverter lcd display

solar controller inverter circuit board

best all in one solar charge controller inverter parameter

All In One Solar Charge Inverter Technical Parameter

We can also customize special voltage, power or other functional requirements according to the needs of users

Solar Charge Controller Inverter Specification
Model:			HP plus-502
Rated Power			5000W
Peak Power（20ms)			15KVA
Battery Voltage			48VDC
Product Size（LWHmm）			440x300x110
Package Size（LWHmm）			515x375x205
N.W（Kg）			9.5
G.W（Kg）			10.5
Installation Method			Wall-Mounted
PV	Charging Mode		MPPT
	Rated PV input voltage		360VDC
	MPPT tracking voltage range		120V-430V
	Max PV Input Voltage Voc (At the lowest temperature)		450V
	PV Array Maximum Power		5500W
	MPPT tracking channels (input channels)		1
Input	DC Input Voltage Range		42VDC-60VDC
	Rated AC input voltage		208VAC/220VAC/230VAC/240VAC
	AC Input Voltage Range		90VAC~280VAC(Appliance mode)/170VAC~280VAC(UPS mode)
	AC Input Frequency Range		40Hz~70Hz(default)
Output	Output efficiency(Battery/PV Mode)		94%（Peak value）
	Output Voltage(Battery/PV Mode)		208VAC±2%/220VAC±2%/230VAC±2%/240VAC±2%(INV mode)
	Output Frequency(Battery/PV Mode)		50Hz/60Hz±0.1%
	Output Wave(Battery/PV Mode)		Pure Sine Wave
	Efficiency(AC Mode)		>99%
	Output Voltage(AC Mode)		Follow input
	Output Frequency(AC Mode)		Follow input
	Output waveform distortion Battery/PV Mode)		≤3%(Linear load)
	No load loss(Battery Mode)		≤1% rated power
	No load loss(AC Mode)		≤0.5% rated power(charger does not work in AC mode)
Battery	Battery Type	VRLA Battery	Charge Voltage :56.4V; Float Voltage:54V
		Customize battery	Charging and discharging parameters of different types of batteries can be customized according to user requirements (charging and discharging parameters of different types of batteries can be set through the operation panel)
	Max AC Charging Current		60A
	Max PV Charging Current		80A
	Maximum charging current (mains + PV)		80A
	Charging method		Three-stage (constant current, constant voltage, floating charge)
Protection	Battery low voltage alarm		Factory default: 44V
	Battery low voltage protection		Factory default: 42V
	Battery over voltage protection		61VDC
	Overload power protection		Automatic protection (battery mode), circuit breaker or insurance (AC mode)
	Inverter output short circuit protection		Automatic protection (battery mode), circuit breaker or insurance (AC mode)
	Temperature protection		>90°C(Shut down output)
Working Mode			Mains priority/Solar priority/Battery priority(Can be set)
Transfer Time			≤10ms
Display			LCD+LED
Thermal method			Cooling fan in intelligent control
Communication(Optional)			RS232/USB/APP(WIFI monitoring or GPRS monitoring)
Environment	Operating temperature		-10℃~40℃
	Storage temperature		-15℃~60℃
	Noise		≤55dB
	Elevation		2000m(More than derating)
	Humidity		0%~95% (No condensation)
Note: All specifications are subject to charge without prior notice.

best all in one solar charge controller inverter use method

How to Use All In One Solar Charge Inverter

The HP Plus all in one solar charge inverter is a bit special. It can be used by a single machine or in parallel. We have clearly printed marks on each connection port at the bottom of the inverter. You only need to connect the solar panel, the positive and negative poles of the battery, the load, and the parallel connection port one by one according to the marks. Next, we will show the connection diagram of how to use a single inverter and how to use a parallel inverter.

how to use solar controller inverter

how to use solar controller inverter with parallel operation

all in one charge controller inverter package

Shipment Safety Inverter Packaging

In addition to paying attention to the quality of solar controller inverters, we also pursue higher and safer packaging quality. We use hard honeycomb cardboard boxes, and use wooden boxes to staple when necessary. We always ensure that the charge controller inverter is safe in the process of shipping or air transportation to reduce after-sales problems when customers receive goods.

solar controller inverter package

all in one charge controller inverter factory

About All In One Solar Charge Inverter Factory

Xindun China factory wholesales solar charge controller inverter, hybrid inverter, power inverter, 3 phase inverter, energy storage inverter, off grid solar power system, ups power supply. The company has about 300 employees, about 20 engineering R&D teams, nearly 100 one-on-one sales and technical consultants. Company and products have successfully passed ISO, CE, TUV and other certifications. Xindun has 12 online shopping malls and 6 offline warehouses and maintenance sites in Africa, Middle East and Asia.

best all in one solar inverter factory china

XINDUN MANUFACTORY

Xindun Power is a production-oriented company since 2006, has a manufacturing factory with 10,000 square meters in China, 8 production lines. We accept OEM/ODM all in one solar charge inverter. Please check our inverter factory below.

all in one inverter chinese factory

all in one charge controller inverter factory

Some Inverter Questions You Want to Know

Q1: Do I need a solar charge controller inverter?

If you need to use solar power system, the solar controller inverter is very convenient. One machine has the functions of charge controller and inverter, which is simpler to use and can reduce the installation space.

Q2: How to select the best all in one solar charge controller?

What suits you is the best. And never buy anything just for the eagerness to get things on the cheap. Xindun has been engaged in inverters for 17 years. I believe we can provide you with the best quality all in one charge controller inverters that are suitable for you.
