HP Off Grid Battery Less Solar Inverter Without Battery 1000W-7200W
Input Voltage: 12/24/48VDC | Output Voltage: 220/230/240VAC±2% | Solar Charging: MPPT | Max PV Open Circuit Voltage: 500VDC
1 : High frequency off grid solar inverter can work without battery
2 : AC output voltage and frequency can be set through the inverter panel

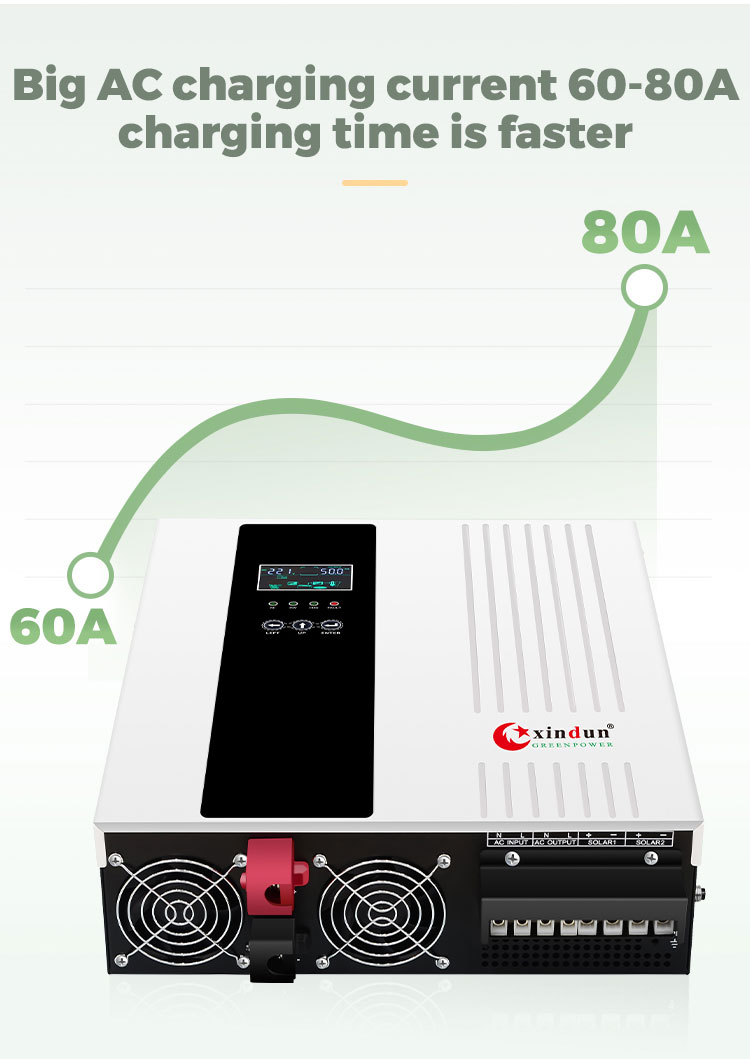

3 : AC charging current 60A-80A for uninterruptible power supply
4 : Compatible with lead-acid and lithium batteries to solve the problem of stocking by dealers
5 : Compatible with diesel or gasoline generator
buy solar inverter at Xindun shopping mall
About HP Battery Less Solar Inverter
Battery less solar inverter, as the name implies, off grid solar inverter work without battery. The solar inverter has built-in mppt solar controller and the mppt tracking voltage range is 120V-450V, max 500V. The electricity from solar energy is directly converted into pure sine wave AC power supply through solar inverter to provide uninterrupted power supply for daily electrical appliances.
In addition, the biggest highlight of this off grid solar inverter is that users can set the battery type and charging parameters, as well as the output voltage and frequency through the inverter panel buttons, which is very convenient for different countries and regions and different electrical appliances.
Details of Battery Less Solar Inverter
LCD display shows various parameters of the off grid solar inverter, intelligent temperature control fan automatically starts and stops according to the internal temperature of the inverter, RS232/485/APP collection port remotely monitors the inverter, industrial internal circuit structure, high-frequency pure copper transformer, and higher conversion efficiency.
Xindun has made an evaluation: the appearance preference of this battery less inverter is up to 95%. Of course, we are also willing to provide customized design for dealers.
buy solar inverter at Xindun shopping mall
How to Use Battery Less Solar Inverter
There are clear marks on the bottom of the solar inverter: solar input, AC input, battery positive and negative poles, and AC output. It is worth noting that the positive pole of the battery is connected to the red port and the negative pole is connected to the black port. If you don't know how to calculate the capacity of solar panels and batteries, you can contact Xindun. First understand the requirements and configuration of the off grid solar inverter, and then we place order.
Battery Less Solar Inverter Technical Parameter
The following is the technical parameter table of HP series off grid solar inverter. If you have any questions, please contact Xindun. We support customization with special requirements, as long as you have batch order.
| Battery Less Solar Inverter Specification | |||||||
| Model: HP | 10212 | 15224 | 32224 | 50248 | 72248 | ||
| Rated Power | 1000W | 1500W | 3200W | 5000W | 7200W | ||
| Peak Power（20ms) | 3000VA | 4500VA | 9600VA | 15KVA | 21.6KVA | ||
| Battery Voltage | 12VDC | 24VDC | 24VDC | 48VDC | 48VDC | ||
| Product Size（L*W*Hmm） | 411.5x283x88 | 476x350x118 | 538x388x118 | ||||
| Package Size（L*W*Hmm） | 459x347x152 | 502x410x168 | 561x457x172 | ||||
| N.W（Kg） | 7 | 7 | 11.5 | 11.8 | 16 | ||
| G.W（Kg） | 8 | 8 | 12.5 | 12.8 | 17.5 | ||
| Installation Method | Wall-Mounted | ||||||
| Inside MPPT Solar controller (Optional) |
Charging Mode | MPPT | |||||
| Rated PV input voltage | 360VDC | ||||||
| MPPT tracking voltage range | 120V-450V | ||||||
| Max PV Input Voltage Voc (At the lowest temperature) |
500V | ||||||
| PV Array Maximum Power | 2000W | 2000W | 4000W | 6000W | 4500W*2 | ||
| MPPT tracking channels (input channels) | 1 | 2 | |||||
| Inside PWM Solar controller (Optional) |
Charging Mode | PWM | |||||
| Charging current | 30A | 60A/120A | |||||
| PV Input Voltage Range | 15V-44V | 30V-44V | 30V-44V | 60V-88V | |||
| Max PV Input Voltage Voc (At the lowest temperature) |
50V | 100V | |||||
| PV Array Maximum Power | 420W | 840W | 1680W/3360W | 3360W/6720W | |||
| PV input channels | 1 | 1 or 2 | |||||
| Input | DC Input Voltage Range | 10.5VDC-15VDC | 21VDC-30VDC | 42VDC-60VDC | |||
| Rated AC input voltage | 220VAC / 230VAC / 240VAC | ||||||
| AC Input Voltage Range | 170VAC~280VAC （UPS mode）/ 120VAC~280VAC（INV mode） | ||||||
| AC Input Frequency Range | 45Hz~55Hz（50Hz)，55Hz~65Hz（60Hz) | ||||||
| Output | Output efficiency(Battery/PV Mode) | 94%（Peak value） | |||||
| Output Voltage(Battery/PV Mode) | 220VAC±2% / 230VAC±2% / 240VAC±2% | ||||||
| Output Frequency(Battery/PV Mode) | 50Hz±0.5 or 60Hz±0.5 | ||||||
| Output Wave(Battery/PV Mode) | Pure Sine Wave | ||||||
| Efficiency(AC Mode) | >99% | ||||||
| Output Voltage(AC Mode) | Follow input | ||||||
| Output Frequency(AC Mode) | Follow input | ||||||
| Output waveform distortion Battery/PV Mode) |
≤3%(Linear load) | ||||||
| No load loss(Battery Mode) | ≤1% rated power | ||||||
| No load loss(AC Mode) | ≤0.5% rated power(charger does not work in AC mode) | ||||||
| Battery | Battery Type |
VRLA Battery | Charge Voltage :13.8V; Float Voltage:13.7V(Single battery voltage) | ||||
| Customize battery | Charging and discharging parameters of different types of batteries can be customized according to user requirements (charging and discharging parameters of different types of batteries can be set through the operation panel) |
||||||
| Max AC Charging Current | 60A | 40A | 60A | 60A | 80A | ||
| Max PV Charging Current (Built-in MPPT controller model) |
80A | 60A | 100A | 100A | 150A | ||
| Maximum charging current (mains + PV) (Built-in MPPT controller model) |
80A | 60A | 100A | 100A | 150A | ||
| Maximum charging current (mains + PV) (Built-in PWM controller model) |
Mains60A+ PWM controller charging current |
Mains40A+ PWM controller charging current |
Mains60A+ PWM controller charging current |
Mains60A+ PWM controller charging current |
Mains80A+ PWM controller charging current |
||
| Charging method | Three-stage (constant current, constant voltage, floating charge) | ||||||
| Protection | Battery low voltage alarm | Battery undervoltage protection value+0.5V(Single battery voltage) | |||||
| Battery low voltage protection | Factory default: 10.5V(Single battery voltage) | ||||||
| Battery over voltage alarm | Constant charge voltage+0.8V(Single battery voltage) | ||||||
| Battery over voltage protection | Factory default: 17V(Single battery voltage) | ||||||
| Battery over voltage recovery voltage | Battery overvoltage protection value-1V(Single battery voltage) | ||||||
| Overload power protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | ||||||
| Inverter output short circuit protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | ||||||
| Temperature protection | >90°C(Shut down output) | ||||||
| Working Mode | Mains priority/Solar priority/Battery priority(Can be set) | ||||||
| Transfer Time | ≤4ms | ||||||
| Display | LCD+LED | ||||||
| Thermal method | Cooling fan in intelligent control | ||||||
| Communication(Optional) | RS485/APP(WIFI monitoring or GPRS monitoring) | ||||||
| Environment | Operating temperature | -10℃~40℃ | |||||
| Storage temperature | -15℃~60℃ | ||||||
| Noise | ≤55dB | ||||||
| Elevation | 2000m(More than derating) | ||||||
| Humidity | 0%~95% (No condensation) | ||||||
| Note: 1. The working mode of the built-in MPPT controller model supports PV priority/battery priority/mains priority, and the working mode of the built-in PWM controller model only supports battery priority/mains priority; 2. All specifications are subject to charge without prior notice. |
|||||||
Battery Less Solar Inverter Project Case
HP series off grid solar inverters have been put into the market for 2 years, and have been widely used in various occasions such as water pumps, household appliances, kindergartens, etc. The solar inverters are wall-mounted, small in size and light in weight, and are deeply loved by customers.
buy off grid inverter at Xindun shopping mall
Shipment Safety Inverter Packaging
Good quality of solar inverter requires more reliable packaging for protection. There are inverter instructions and warranty cards inside the package. Please check the list when receiving the goods. The packaging of the off grid inverter can also be printed with the customer's trademark or other patterns.
buy off grid inverter at Xindun shopping mall
About Battery Less Inverter Manufacturer
Xindun is an off grid solar inverter manufacturer based in China, established in 2006. At present, the company has passed ISO9001 quality management system certification, ISO14001 environmental management system certification, ISO45001 health and safety management system certification. At present, our customer covers new energy, electricity, construction, communication, trade, government, etc. We provide high-quality inverter products for customers in the Middle East, Africa, Asia, South America and Latin America all year round, with competitive prices.
buy off grid inverter at Xindun shopping mall
XINDUN MANUFACTURER
With a production plant of 10,000 square meters and more than 100 professional production workers, we have sufficient strength to provide wholesale and customized off grid solar inverters for global customers. Xindun has overseas warehouses and maintenance teams in Nigeria, Kenya, Senegal, Philippines, Pakistan and Indonesia, which is more convenient for local after-sales maintenance and inverter replacement.
buy off grid inverter at Xindun shopping mall
Some Common Inverter Question & Answer
Q1: What is battery less inverter?
Generally, off grid inverter must be used with batteries. For battery less inverter, with built-in MPPT solar controller with relatively large photovoltaic tracking voltage. In this case, the battery less inverter will automatically start up and operate normally when the solar energy is sufficient or there is mains power.
Q2: Where to buy off grid solar inverter, or where to buy off grid solar inverter without battery?
As one of the largest solar inverter manufacturers in China, Xindun has 12 online stores and 6 offline overseas marketing centers. Our inverter has reliable quality and competitive price.
Q3: What is battery less inverter price?
Get in touch with Xindun through the contact information at the bottom of the page. We will provide you with the latest inverter price and discount.
