What is a MPPT Solar Charge Controller and How to Use It?

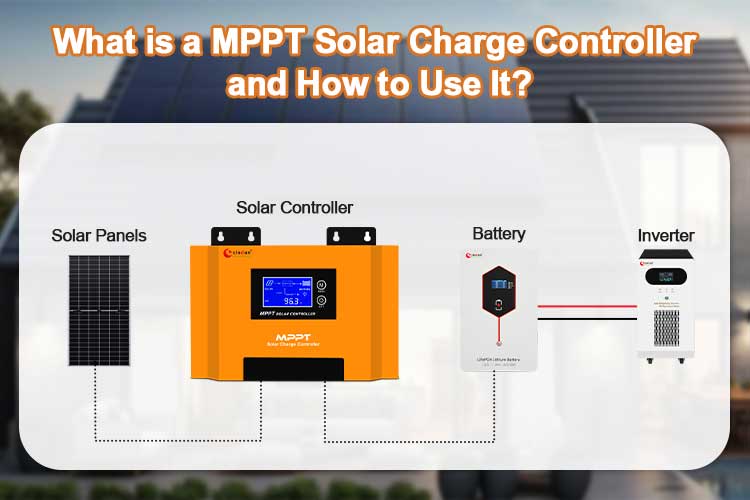

Solar power system consists of solar panels, solar charge controller, inverter, and energy storage battery. These components work together to convert solar energy into electrical energy, which is then stored and used. During system operation, each component performs its respective function to ensure the overall efficiency and stability of the system.

In solar power system, the solar charge controller plays a crucial role. It not only protects the battery from overcharging or over discharging damage but also optimizes the charging process, thereby extending their lifespan. Furthermore, the solar charge controller can adjust the output power according to actual electricity demand to ensure the rational distribution and utilization of energy.

There are two types of solar charge controller: PWM solar charge controller and MPPT solar charge controller.

PWM stands for Pulse Width Modulation, which controls the charging process by adjusting the pulse width of the voltage and current output by the solar panel.

MPPT, short for Maximum Power Point Tracking, is a solar charge controller that maximizes the output power of solar panels. The output voltage and current of solar panel change with variations in sunlight intensity and temperature. The role of the MPPT solar charge controller is to track and ensure the solar panel operates at its "maximum power point" in real time, thereby extracting the maximum amount of electrical energy from the panel. By tracking the solar panel's maximum power point, the optimal match between output voltage and current, the overall efficiency of the solar system is effectively improved. Compared to traditional PWM solar charge controller, MPPT can increase power generation efficiency by 10% to 30%, with even more significant advantages under conditions of significant weather changes, low sunlight, or low temperatures.

How to use a mppt solar charge controller?

The MPPT solar charge controller requires users to connect the wires correctly and set the parameters properly to maximize the utilization of the solar panel's power, which can efficiently charge the battery or directly supply power.

First, connect the battery to the controller, allowing it to automatically recognize the battery voltage and start smoothly. Then, connect the solar panels. Once completed, the MPPT solar charge controller will automatically activate the MPPT tracking function and begin efficient charging.

When disconnecting the controller, the process is reversed! The order is reversed! First disconnect the solar panel! Then disconnect the battery.

When connecting or disconnecting the MPPT solar charge controller, it is absolutely forbidden to connect the solar panel without connecting the battery first. Otherwise, the controller will be damaged! If the solar panel is connected first, the instantaneous high voltage from the panel will directly impact the controller's internal circuitry, easily damaging the controller.

Most MPPT solar charge controller  have a "LOAD" output port. This port allows direct connection to DC loads when AC loads are not needed, eliminating the need for inverter. Applications include DC lighting bulbs, RV power supplies, and security cameras. MPPT solar charge controller offer advantages in both residential and large scale system, as well as in scenarios requiring higher efficiency.

To further optimize the operation of the solar power system, users can also monitor and control the entire system via APP based communication management system. Through this APP, users can view real time information such as the power generation of the solar  panels, the charging status of the battery, and the power consumption of the load. This not only helps in the timely identification and resolution of problems but also helps users better plan their energy usage strategies, thereby achieving higher energy efficiency.

Whether in home energy storage system, off grid power supply, or applications such as RVs and surveillance, MPPT solar charge controller can provide more efficient energy management solutions and are an important component for improving system performance.

If you would like to learn more about the Xindun MPPT solar charge controller, please submit your request through the website's(https://www.xinduninverter.com/) customer service window, and we will contact you as soon as possible during working hours.
