SESS-ES On Grid Off Grid Hybrid Solar PV System 3KW-20KW

Xindun hybrid solar system has undergone hundreds of practical applications, purchasing an on grid off grid hybrid solar system with solar panels/batteries/inverter, save you procurement time and cost, installation & maintenance all duties to one company.

Type : On Grid Off Grid Hybrid Solar System

Power : 3KW-20KW

Input Voltage : DC 48V/96V/192V

Output Voltage : AC 220V/230V

Brand : Xindun Power (Factory)

Original : China

Service : Customized Solutions, Cost Calculation, Installation Guidance, Maintenance, Product Training

On Grid Off Grid Hybrid Solar PV System Solution

In the context of the global energy crisis, the characteristics of low carbon, environmental protection, high efficiency and power saving of solar pv system are favored by the market. In the market, there are three common types of solar pv systems: on grid, off grid, and hybrid. Today, we will introduce the most convenient and practical - on grid off grid hybrid solar pv system.

This hybrid solar system can provide independent and self use power generation not connected to power grid, as well as be connected to the power grid supply system for use. In the on grid mode, the hybrid solar system connected to the power grid, stabilize voltage by an inverter to supply power to the AC load, while charging the battery. The remaining electricity can also be sold to the grid to earn electricity profits. When the power grid is suddenly interrupted, this system can also switch to off grid mode, generating and supplying power independently to ensure safe use. The core of this hybrid solar system is to reserve battery components. With the addition of batteries, it can fully store the remaining electricity of the power generation system, and also fully utilize the advantages of power grid to store backup power. The system is more environmentally friendly and has a longer service life. Furthermore, the surplus electricity that cannot be used up by AC loads or batteries can also be sold to the power grid, fully utilizing power resources and making it the most popular electricity consumption mode in the current market.

The hybrid solar system is easy to install and easy to maintain, especially suitable for use in homes, shopping malls, schools, and other places. If you are looking for an efficient, practical, and environmentally friendly solar system in the market, then on grid off grid hybrid solar system will definitely become your top choice. It is practical, reliable, and economical, providing stable power anytime and anywhere, making your life more beautiful.

On Grid Off Grid Hybrid Solar PV System - Xindun China

Hybrid Solar PV System Equipment List

Model	SESS-ES 3KW48V	SESS-ES 5KW48V	SESS-ES 10KW96V	SESS-ES 15KW192V	SESS-ES 20KW192V
330W Solar Panel	8 Pieces	12 Pieces	24 Pieces	32 Pieces	36 Pieces
Combiner Box	2 in 1 out*2	3 in 1 out*2	2 in 1 out*2	2 in 1 out*2	2 in 1 out*2
Hybrid Inverter	3kw 48v with 70A mppt	5kw 48v with 120A mppt	10kw 96v with 110A mppt	15kw 192v with 80A mppt	20kw 192v with 110A mppt
12V 200AH lead acid Battery (Lithium battery acceptable)	4 pieces	4 pieces	8 pieces	16 pieces	16 pieces
PV Cable	300 Meters	300 Meters	400 Meters	600 Meters	700 Meters
Battery Cable	3 pairs (16mm2)	3 pairs	7 pairs	15 pairs	15 pairs
MC4 Connector	5 Pairs	5 Pairs	6 Pairs	6 Pairs	6 Pairs
Mounting System	4 set	6 sets	12 sets	16 sets	18 sets

Hybrid Solar PV System Components

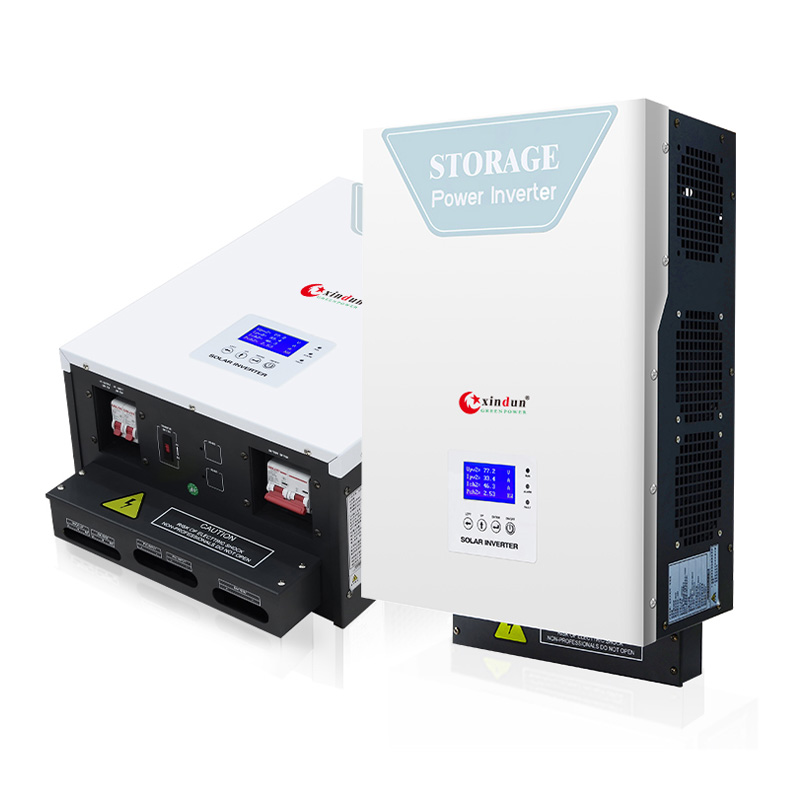

Hybrid Solar Inverter 1. Combine on grid and off grid function in one hybrid solar inverter 2. Inverter built-in dual MPPT solar charge controller 3. Compatible with lithium and gel batteries 4. Solar/AC charger in one 5. WIFI/ GPRS remote monitoring optional
	Lithium Batteries 1. High safety level of lithium lifepo4 battery cell 2. Long life cycle time >6000cycles 3. Advanced BMS protection functionality 4. Installation: Floor/Wall mounted Gel Batteries 1. High thermal stability and resistance to overcharging and discharging 2. The deep discharge cycle life is increased 50% 3. Gel batteries have better safety
Solar Panels 1. Mono or poly solar panels optional 2. Front Glass: 3.2mm, Anti Reflection Coaring, High Transmission, Low Iron, Tempered Glass 3. Frame: Anodized Aluminium Alloy 4. Warranty: 25-years performance warranty
	Solar Mounting System 1. Aluminum Alloy 6005-T5 2. Fasteners Material SUS304 3. Easy Installation, the installation angle can be adjusted according to the demand 4. Can Be used in different forms,Tin Roofs,Flat Roofs 5. 10 Years Warranty, Over 25 Years Service Life
Solar Accessories 1. Complete accessories including pv cable, battery cable, mc4 connector, combiner box 2. Additional installation kit (if required) 3. Perfectly match for hybrid solar system

Hybrid Solar PV System Wiring Diagram

off grid hybrid solar system wiring diagram

Contact me for customized on grid off grid hybrid solar system solutions and wiring method.

Hybrid Solar PV System Installation & Application

off grid hybrid solar system installation application

We also have many hybrid solar system installation photos and videos, if you are interested, feel free to contact me.

Hybrid Solar PV System Manufacturer

At our company, we believe that solar power is the future of energy, and we are committed to providing you with the most popular hybrid solar solutions to meet your needs. Our on grid off grid hybrid solar system are designed to provide you with pure sine wave ups power supply, long-term savings, and provide reliable and efficient power. We offer a range of high-quality solar panels, dc-ac inverters, batteries, and solar mounting systems to meet your specific needs, and our team of experts is dedicated to providing you with exceptional customer service and support. Our hybrid solar pv system has undergone thousands of on-site tests, including environmental tests, temperature tests, impact tests, on-load tests, fault tests, etc. While we guarantee the quality, the price is also lower than the industry average. Contact us today to learn more about our hybrid solar solutions and receive a customized quote.
