SESS-PRO Complete Off Grid Solar System Packages with Batteries 1Kw-7.2Kw

Xindun off grid solar package has undergone hundreds of practical applications, purchasing a complete off grid solar system with batteries/inverter/solar panels, saves you procurement time and cost, installation and maintenance all duties to one company.

Type : Off Grid Solar System

Power : 1000W-7200W

Input Voltage : DC 12V/24V/48V

Output Voltage : AC 220V/230V/240V

Brand : Xindun Power (Factory)

Original : China

Service : Customized Solutions, Cost Calculation, Installation Guidance, Maintenance, Product Training

Complete Off Grid Solar System Packages with Batteries

XINDUN POWER provide you with the most advanced and complete off grid solar system packages. Our off grid solar system package is suitable for areas with power shortages, unstable electricity, or high electricity bills that need lower the electric bill. Our off grid solar package is completely independent and does not require any external AC power support. This is a complete solar system packages with solar panels, batteries, inverters, and necessary wires and accessories.

Our off grid solar panels are one of the most efficient among all environmentally friendly solar panels. They are suitable for all places and any season. They can efficiently capture solar energy and convert it into electrical energy for power supply. Our energy storage batteries can store the electricity generated by the power generation system for use at night. Our inverter converts the direct current stored in the battery into alternating current for power supply of electrical and electronic devices.

Our off grid solar system package is complete, and each system is designed according to your specific requirements to ensure your independent life creativity and personalized implementation, without worrying about power sources. All the products we provide are of high quality, sturdy and durable, ensuring that you can enjoy reliable power supply for a long time in your life. If you need a complete off grid solar system packages with batteries, please contact XINDUN POWER and we will provide you with more detailed information in a timely manner!

Complete Off Grid Solar System Packages with Batteries - Xindun China

Complete Off Grid Solar System Equipment List

Model	SESS-PRO 1KW 12V	SESS-PRO 1.5KW 24V	SESS-PRO 3.2KW 24V	SESS-PRO 5KW 48V	SESS-PRO 7.2KW 48V
330W Solar Panel	2 Pieces	3 Pieces	6 Pieces	9 Pieces	15 Pieces
Combine box	without	without	without	without	3 in 1 out 1 Pieces
Off Grid Inverter	1kw 12v with 80A mppt	1.5kw 24v with 60A mppt	3.2kw 24v with 100A mppt	5kw 48v with 100A mppt	7.2 kw 48v 150A mppt
12V 200AH lead acid Battery (Lithium battery acceptable)	1 Piece	2 Pieces	2 Pieces	4 Pieces	4 Pieces
PV Cable	100 Meters	100 Meters	100 Meters	200 Meters	300 Meters
Battery Cable	1 paris (16mm2)	1 paris (16mm2)	1 paris (16mm2)	3 paris (25mm2)	3 pairs (25mm2)
MC4 Connector	2 Pairs	2 Pairs	3 Pairs	4 Pairs	4 Pairs
Mounting System	1 set	2 sets	3 sets	6 sets	9 sets

Complete Off Grid Solar System Components

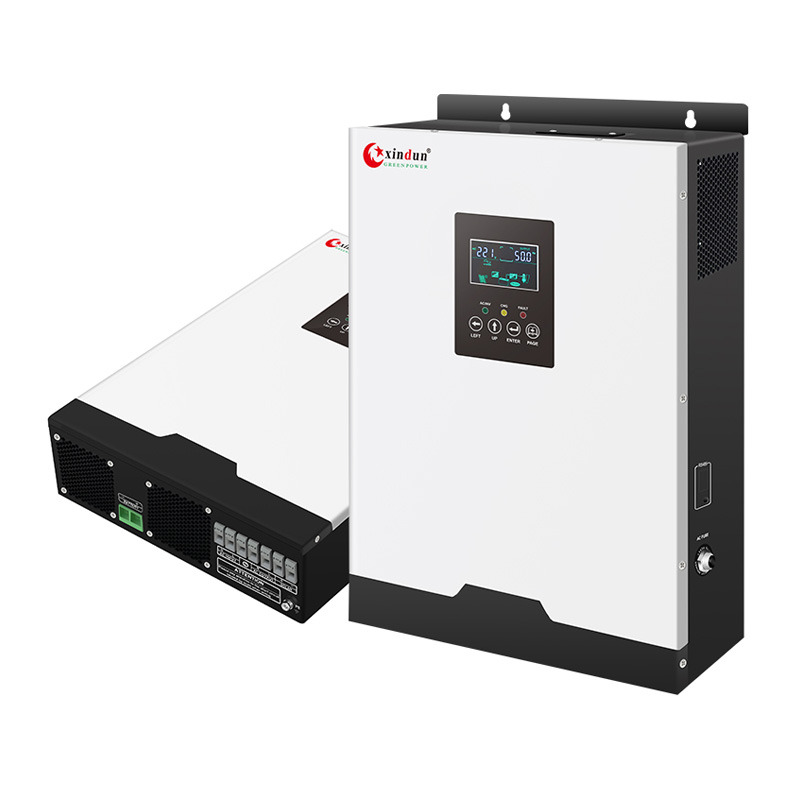

MPPT Solar Inverter 1. Off grid solar inverter built-in mppt charge controller 2. Pure sine wave, high frequency, high efficiency>94% 3. Compatible with lithium batteries and gel batteries 4. Inverter can work without batteries 5. WIFI/ GPRS remote monitoring optional 6. Solar/AC charger in one
	Lithium Batteries 1. High safety level of lithium lifepo4 battery cell 2. Long life cycle time >6000cycles 3. Advanced BMS protection functionality 4. Installation: Floor/Wall mounted Gel Batteries 1. High thermal stability and resistance to overcharging and discharging 2. The deep discharge cycle life is increased 50% 3. Gel batteries have better safety
Solar Panels 1. Mono or poly solar panels optional 2. Front Glass: 3.2mm, Anti Reflection Coaring, High Transmission, Low Iron, Tempered Glass 3. Frame: Anodized Aluminium Alloy 4. Warranty: 25-years performance warranty
	Solar Mounting System 1. Aluminum Alloy 6005-T5 2. Fasteners Material SUS304 3. Easy Installation, the installation angle can be adjusted according to the demand 4. Can Be used in different forms,Tin Roofs,Flat Roofs 5. 10 Years Warranty, Over 25 Years Service Life
Solar Accessories 1. Complete accessories including pv cable, battery cable, mc4 connector, combiner box 2. Additional installation kit (if required) 3. Perfectly match for solar system packages

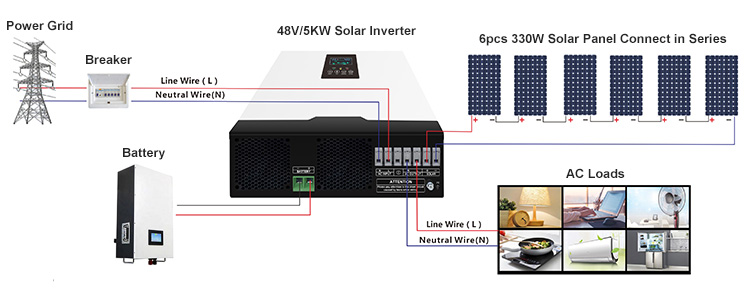

Complete Off Grid Solar System Wiring Diagram

off grid solar package wiring diagram

Contact me for customized off grid solar package solutions and wiring method.

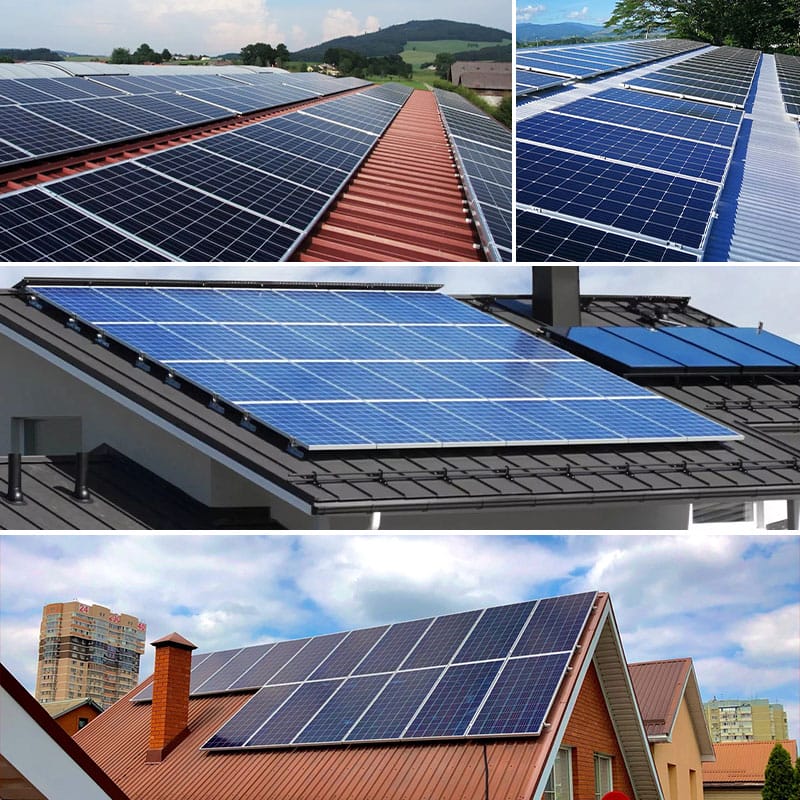

Off Grid Solar System Packages Installation & Application

off grid solar package installation application

We also have many complete off grid solar system packages with batteries application pictures and videos, if you are interested, feel free to contact me.

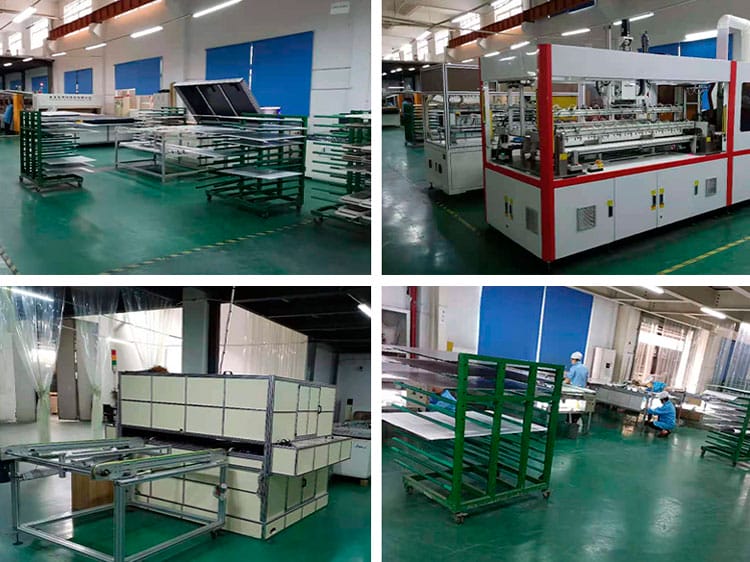

Complete Off Grid Solar System Manufacturer

Are you looking for a reliable complete off grid solar system package manufacturer? look at us! Xindun's off grid solar package is designed to provide you with long-term and stable power supply, save electricity bills and reduce carbon footprint. We offer a range of high quality solar panels, solar inverters, solar batteries and mounting systems to suit your specific needs. Our over 15 years experienced team is dedicated to providing exceptional customer service and support, and we stand behind our products with a comprehensive warranty. Contact us today to learn more about our solar solutions and get a custom quote.
